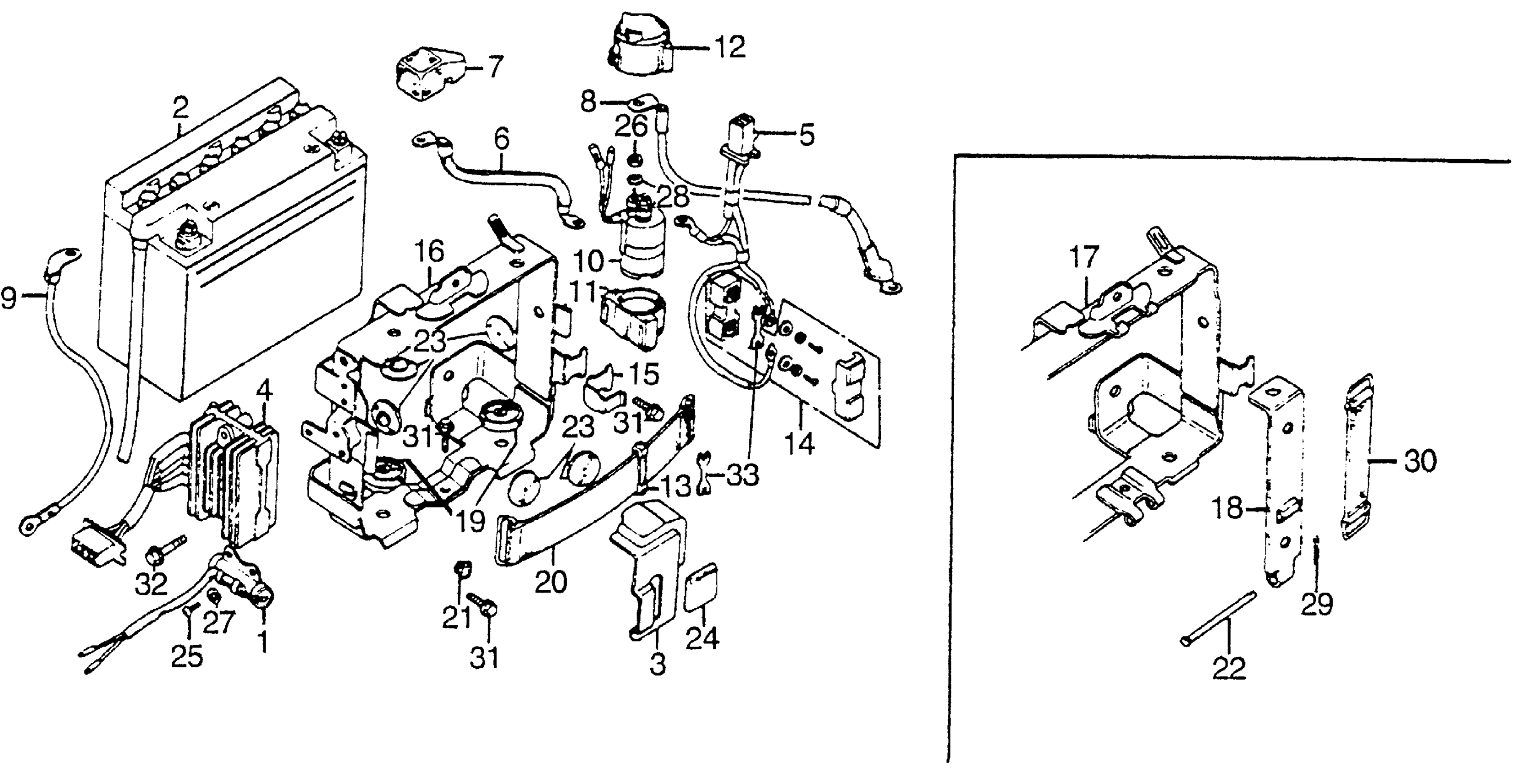

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 BATTERY + SILICON RECTIFIER Diagram

#

Description
Price

1

CONDENSER

30280-371-000

Unavailable

2

BATTERY ASSY. This part replaces 31500-371-672.

31500-463-747AH

Unavailable

2

BATTERY ASSY. This part replaces 31500-431-671.

31500-463-747AH

Unavailable

2

BATTERY ASSY. This part replaces 31500-463-671.

31500-463-747AH

Unavailable

2

BATTERY ASSY. This part replaces 31500-463-677.

31500-463-747AH

Unavailable

2

BATTERY ASSY. This part replaces 31500-463-721.

31500-463-747AH

Unavailable

2

BATTERY ASSY. This part replaces 31500-463-743.

31500-463-747AH

Unavailable

2

BATTERY ASSY. This part replaces 31500-463-747.

31500-463-747AH

Unavailable

4

RECTIFIER ASSY., SILICON (NOT AVAILABLE)

31700-371-000

Unavailable

5

SUB-WIRE ASSY. A (NOT AVAILABLE)

32213-371-000

Unavailable

6

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-371-000.

32401-371-010

Unavailable

6

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-371-010

Unavailable

7

COVER, BATTERY TERMINAL (NOT AVAILABLE) This part replaces 32412-371-000.

32412-463-000

Unavailable

8

CABLE, STARTER MOTOR

32420-371-000

Unavailable

9

CABLE, BATTERY GROUND

32601-MG9-000

Unavailable

9

CABLE, BATTERY GROUND This part replaces 32601-371-000.

32601-MG9-000

Unavailable

9

CABLE, BATTERY GROUND This part replaces 32601-463-000.

32601-MG9-000

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC

35850-371-670

Unavailable

11

SUSPENSION, MAGNETIC SWITCH (NOT AVAILABLE)

35856-371-000

Unavailable

12

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-371-000

Unavailable

13

HOLDER, SPARE FUSE (NOT AVAILABLE)

38205-371-000

Unavailable

14

BOX, MAIN FUSE

38250-ME9-005

Unavailable

14

BOX, MAIN FUSE This part replaces 38250-371-153.

38250-ME9-005

Unavailable

15

STAY, MAIN FUSE

38253-371-000

Unavailable

17

BOX, BATTERY (NOT AVAILABLE) This part replaces 50325-371-010.

50325-371-020

Unavailable

17

BOX, BATTERY (NOT AVAILABLE)

50325-371-020

Unavailable

18

PLATE, BATTERY SUPPORT (NOT AVAILABLE)

50326-371-000

Unavailable

19

RUBBER A, BATTERY MOUNTING (NOT AVAILABLE)

50328-371-000

Unavailable

21

RUBBER, FR. FORK REBOUND STOPPER (NOT AVAILABLE)

51404-044-030

Unavailable

22

PIN, SHELTER HINGE

83109-371-000

$6.32

23

RUBBER, BATTERY BOX

83618-323-000

$2.47

24

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-371-670

Unavailable

25

SCREW, PAN (5X8)

93500-05008-0A

$1.49

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

PIN, COTTER (1.2MM) This part replaces 94201-12100.

94201-12200

Unavailable

29

PIN, COTTER (1.2MM) This part replaces 94201-12150.

94201-12200

Unavailable

29

PIN, COTTER (1.2MM)

94201-12200

Unavailable

30

BAND, BATTERY This part replaces 95012-15000.

95012-15001

$6.31

30

BAND, BATTERY

95012-15001

$6.31

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

31

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

32

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

32

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

33

FUSE F (30A)

98200-53000

$1.49
