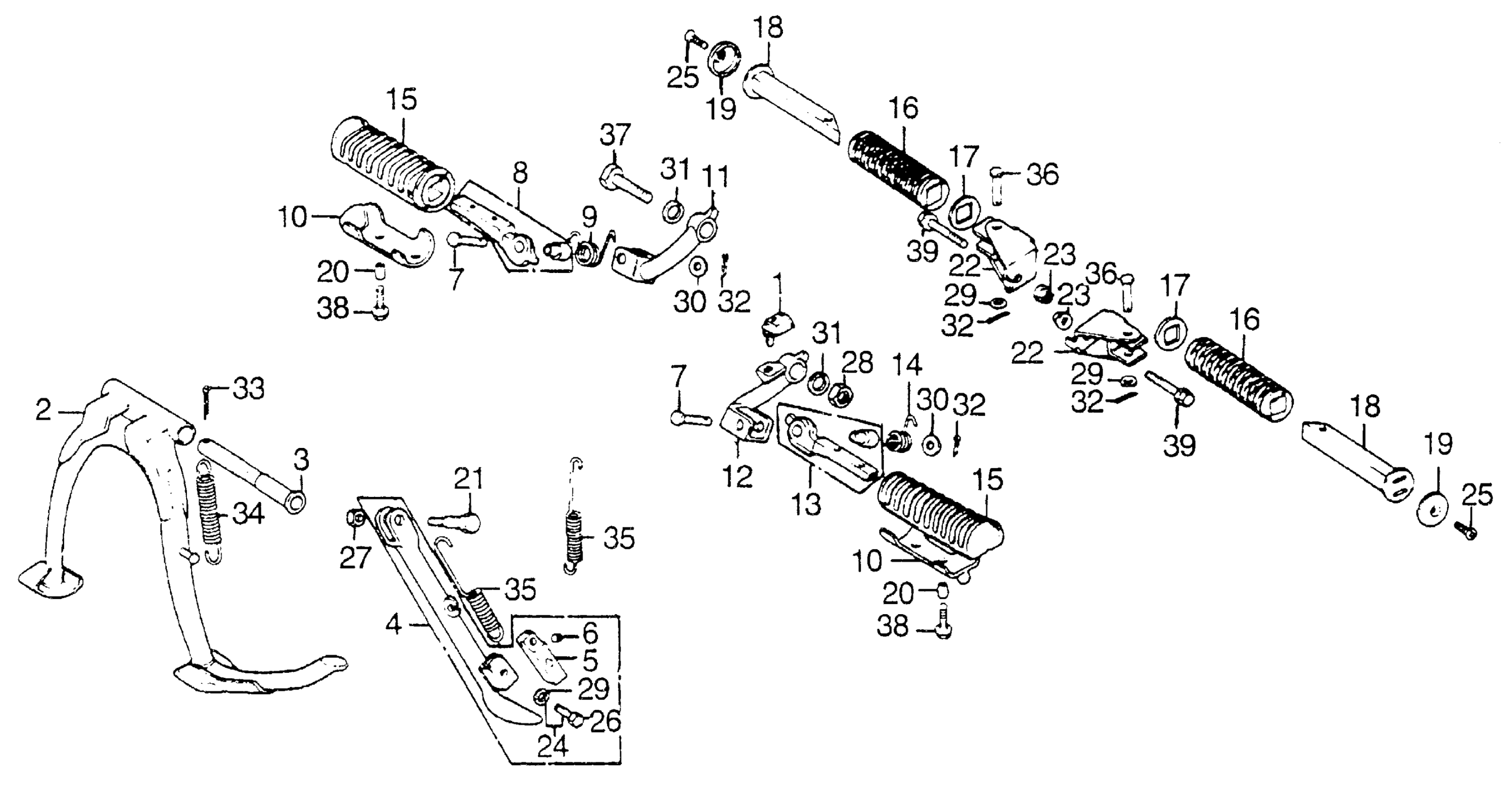

Honda GL1000A (76) GOLD WING, JPN, VIN# GL1-2001483 TO GL1-2032613 STEP + STAND Diagram

#

Description
Price

1

RUBBER, KICK STOPPER

28310-371-000

Unavailable

2

STAND, MAIN (NOT AVAILABLE) | Use up to Frame SN 2040165

50500-371-000

Unavailable

3

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

4

BAR ASSY., SIDE STAND (NOT AVAILABLE) | Use up to Frame SN 2012110

50540-371-000

Unavailable

4

BAR ASSY., SIDE STAND (NOT AVAILABLE) | Use from Frame SN 2012111

50540-371-010

Unavailable

5

RUBBER, STAND

50548-356-700

$10.50

6

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

7

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

7

PIN, STEP BAR JOINT

50603-033-010

$3.30

8

ARM, R. FOOTPEG *NH1* (BLACK) | Use up to Frame SN 2040165

50616-369-670B

Unavailable

9

SPRING, R. STEP RETURN

50617-300-670

Unavailable

10

STOPPER, STEP RUBBER (NOT AVAILABLE) This part replaces 50619-375-000.

50619-388-000

Unavailable

11

BRACKET, R. STEP

50630-371-000

Unavailable

12

BRACKET, L. STEP (NOT AVAILABLE)

50640-371-000

Unavailable

13

STEP, L. *NH1* (BLACK) | Use up to Frame SN 2040165

50642-369-670B

Unavailable

14

SPRING, L. STEP RETURN

50644-300-670

Unavailable

15

RUBBER, FOOTPEG

50661-369-000

Unavailable

16

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

16

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

17

WASHER, PILLION FOOTPEG

50712-377-000

Unavailable

18

BAR, PILLION FOOTPEG

50715-MA6-000

$19.16

18

BAR, PILLION FOOTPEG This part replaces 50715-377-000.

50715-MA6-000

$19.16

20

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

21

SCREW, SIDE STAND PIVOT (NOT AVAILABLE) | Use up to Frame SN 2016000

90108-371-000

Unavailable

21

SCREW, SIDE STAND PIVOT (NOT AVAILABLE) | Use from Frame SN 2016001

90108-371-610

Unavailable

22

BRACKET, PILLION STEP (NOT AVAILABLE)

90167-371-000

Unavailable

23

NUT, FLANGE (10MM) This part replaces 90201-329-000.

94050-10000

$1.59

23

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

23

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

23

NUT, FLANGE (10MM)

94050-10000

$1.59

26

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

26

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

27

NUT, HEX. (10MM) | Use up to Frame SN 2016000

94001-10000-0S

$1.49

27

NUT, RR. SHOCK ABSORBER MOUNT (LOWER) (NOT AVAILABLE) | Use from Frame SN 2016001

90324-001-810

Unavailable

28

NUT, HEX. (12MM)

94001-12000-0S

$1.66

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

WASHER, SPRING (12MM)

94111-12000

$1.49

32

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

32

PIN, COTTER (1.6X25)

94201-16250

$1.49

33

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

33

PIN, COTTER (2.5MM)

94201-25300

$1.49

34

SPRING G, MAIN STAND This part replaces 95014-71701.

95014-71702

$4.08

34

SPRING G, MAIN STAND

95014-71702

$4.08

35

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

35

SPRING D, SIDE STAND

95014-72402

$2.92

36

PIN B, PILLION FOOTPEG

95015-82000

$2.41

37

BOLT, HEX. (12X40) (NOT AVAILABLE)

95300-12040-00

Unavailable

38

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

38

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

39

BOLT, FLANGE (10X40) This part replaces 95700-10040-00.

95701-10040-00

$1.51

39

BOLT, FLANGE (10X40)

95701-10040-00

$1.51
