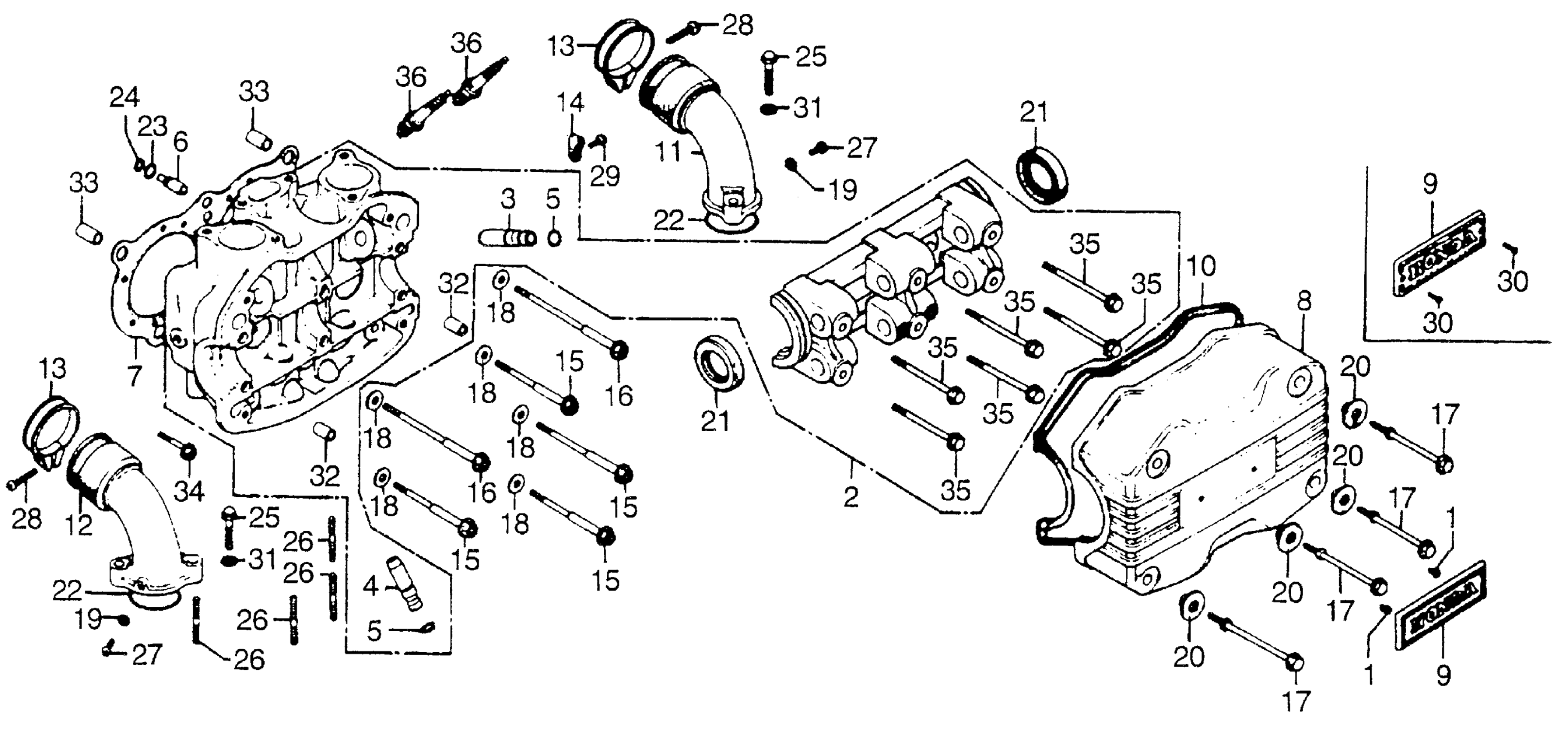

Honda GL1000A (76) GOLD WING, JPN, VIN# GL1-2001483 TO GL1-2032613 LEFT CYLINDER HEAD Diagram

#

Description
Price

1

CLIP, PUSH (J-TYPE) | Use up to Engine SN 2038639

11633-323-000

$2.52

2

CYLINDER HEAD (NOT AVAILABLE)

12200-371-010

Unavailable

3

GUIDE, VALVE

12204-371-305

Unavailable

4

GUIDE, VALVE

12204-371-305

Unavailable

4

GUIDE, VALVE This part replaces 12205-371-305.

12204-371-305

Unavailable

5

CLIP, VALVE GUIDE

12211-250-310

$4.39

6

ORIFICE, OIL CONTROL

12238-371-000

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-371-003.

12251-371-306

Unavailable

7

GASKET, CYLINDER HEAD

12251-371-306

Unavailable

8

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 2038639 This part replaces 12311-371-000.

12311-371-010

Unavailable

8

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 2038639

12311-371-010

Unavailable

9

EMBLEM, HEAD COVER (NOT AVAILABLE) | Use up to Engine SN 2038639

12312-371-610

Unavailable

10

GASKET, HEAD COVER

12328-371-000

$25.49

11

MANIFOLD A, IN. (NOT AVAILABLE)

17110-371-000

Unavailable

12

MANIFOLD B, IN. (NOT AVAILABLE)

17120-371-000

Unavailable

13

BAND, AIR CLEANER CONNECTING TUBE (54) This part replaces 17255-371-000.

95018-54250

$5.14

13

BAND, AIR CLEANER CONNECTING TUBE (54)

95018-54250

$5.14

14

CLAMP, CABLE

32111-323-000

$3.98

15

BOLT, FLANGE (10X90) This part replaces 90001-371-003.

90001-371-013

Unavailable

15

BOLT, FLANGE (10X90)

90001-371-013

Unavailable

16

BOLT, FLANGE (10X115) This part replaces 90002-371-003.

90002-371-013

Unavailable

16

BOLT, FLANGE (10X115)

90002-371-013

Unavailable

17

BOLT, SPECIAL (6X63.2) This part replaces 90018-371-000.

90018-679-000

$12.22

17

BOLT, SPECIAL (6X63.2)

90018-679-000

$12.22

18

WASHER (21X11X2.3)

90438-634-000

Unavailable

19

WASHER, SEALING (5MM)

90452-323-000

$1.59

20

RUBBER, SETTING

90541-371-000

$5.01

21

OIL SEAL (27X43X9)

91209-371-003

$17.60

22

O-RING (40X2.6) This part replaces 91301-371-003.

91301-371-005

$4.65

22

O-RING (40X2.6)

91301-371-005

$4.65

23

O-RING (6.5X1.5)

91305-371-003

$2.91

24

O-RING (4.1X1.5)

91308-371-003

$4.83

25

BOLT, CAP (6X32)

92500-06032-0B

$3.67

26

BOLT, STUD (8X40) (NOT AVAILABLE)

92700-08040-0E

Unavailable

27

SCREW, PAN (5X8)

93500-05008-0A

$1.49

28

SCREW, PAN (5X20)

93500-05020-0G

$1.49

29

SCREW, PAN (6X8)

93500-06008

$1.49

29

SCREW, PAN (6X8)

93500-06008-0A

$1.49

29

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

29

SCREW, PAN (6X8)

93500-06008-0H

$1.49

29

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

PIN A, DOWEL (10X16)

94301-10160

$2.28

33

PIN A, DOWEL (12X20)

94301-12200

$2.29

34

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

34

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

35

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

35

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

36

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

36

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

36

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

36

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

36

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

36

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44
