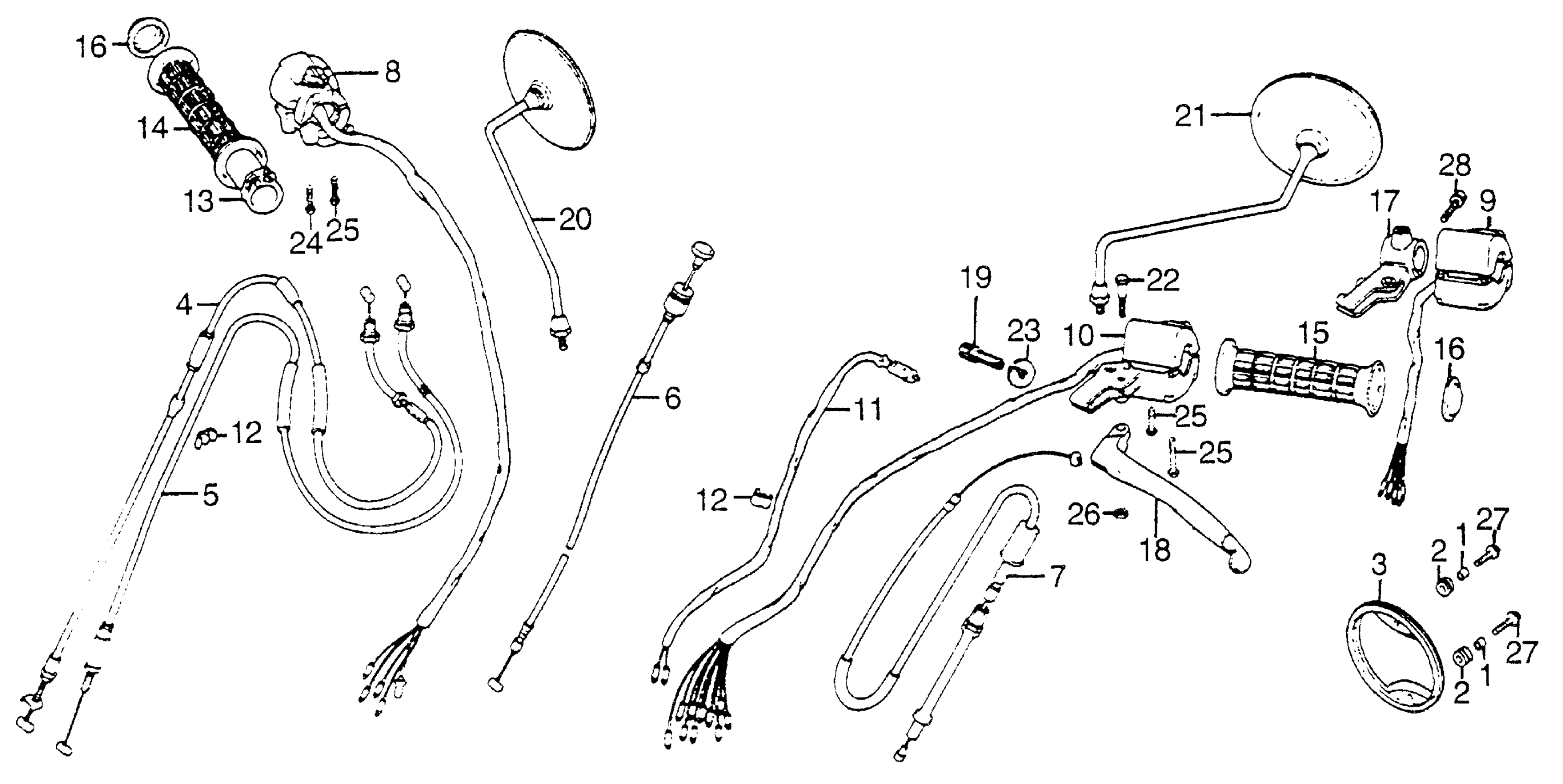

Honda GL1000A (76) GOLD WING, JPN, VIN# GL1-2001483 TO GL1-2032613 HANDLE LEVER + CABLE + SWITCH Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER

11346-371-300

$9.48

2

GROMMET, ADJUSTING COVER

11347-371-300

$1.87

3

COVER, CLUTCH ADJUST (NOT AVAILABLE)

11348-371-000

Unavailable

4

CABLE A, THROTTLE

17910-371-000

Unavailable

5

CABLE B, THROTTLE

17920-371-000

Unavailable

6

CABLE, CHOKE

17950-371-010

Unavailable

7

CABLE, CLUTCH | Use up to Frame SN 2025241 This part replaces 22870-371-010.

22870-371-020

Unavailable

7

CABLE, CLUTCH

22870-371-020

Unavailable

7

CABLE, CLUTCH | Use up to Frame SN 2025241

22870-371-020

Unavailable

8

SWITCH ASSY., STARTER STOP

35130-377-P00

Unavailable

8

SWITCH ASSY., STARTER STOP This part replaces 35150-371-670.

35130-377-P00

Unavailable

9

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE) | Use from Frame SN 2016001

35200-371-671

Unavailable

10

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE) | Use up to Frame SN 2016000

35200-371-670

Unavailable

11

SWITCH ASSY., FR. STOP This part replaces 35360-341-000.

35340-329-003

$15.68

12

CLIP, FR. BRAKE CABLE

45465-270-000

$4.60

12

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.60

13

PIPE, THROTTLE GRIP

53141-300-010

$18.79

14

GRIP, R. HANDLEBAR

53165-342-670

$14.04

15

GRIP, L. HANDLEBAR

53166-342-670

$12.11

17

BRACKET, L. HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 2016001

53172-371-000

Unavailable

18

LEVER, L. HANDLE | Use up to Frame SN 2016000 This part replaces 53178-329-000.

53178-369-700

$25.45

18

LEVER, L. HANDLE | Use up to Frame SN 2016000

53178-369-700

$25.45

18

LEVER, L. HANDLE | Use up to Frame SN 2016000 This part replaces 53190-329-000.

53178-369-700

$25.45

18

LEVER, L. HANDLE | Use up to Frame SN 2016000 This part replaces 53190-329-010.

53178-369-700

$25.45

18

LEVER, L. HANDLE | Use up to Frame SN 2016000 This part replaces 53190-369-700.

53178-369-700

$25.45

18

LEVER, L. HANDLE | Use from Frame SN 2016001 This part replaces 53178-371-000.

53178-431-003

Unavailable

18

LEVER, L. HANDLE | Use from Frame SN 2016001

53178-431-003

Unavailable

18

LEVER, L. HANDLE | Use from Frame SN 2016001 This part replaces 53190-371-000.

53178-431-003

Unavailable

19

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.37

20

MIRROR, R. This part replaces 88100-333-004.

88110-333-611

$33.36

20

MIRROR, R.

88110-333-611

$33.36

21

MIRROR, L. This part replaces 88120-333-004.

88120-333-611

Unavailable

21

MIRROR, L. This part replaces 88120-333-610.

88120-333-611

Unavailable

21

MIRROR, L.

88120-333-611

Unavailable

22

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.56

22

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.56

23

NUT, FIXING

90321-315-670

$6.80

23

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.80

24

SCREW, PAN (5X25)

93500-05025-0A

$0.86

25

SCREW, PAN (5X32)

93500-05032-0A

$1.00

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM)

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

27

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.48

27

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

28

BOLT, FLANGE (6X25) | Use from Frame SN 2016001 This part replaces 95700-06025-00.

95701-06025-00

$1.64

28

BOLT, FLANGE (6X25) | Use from Frame SN 2016001

95701-06025-00

$1.64
