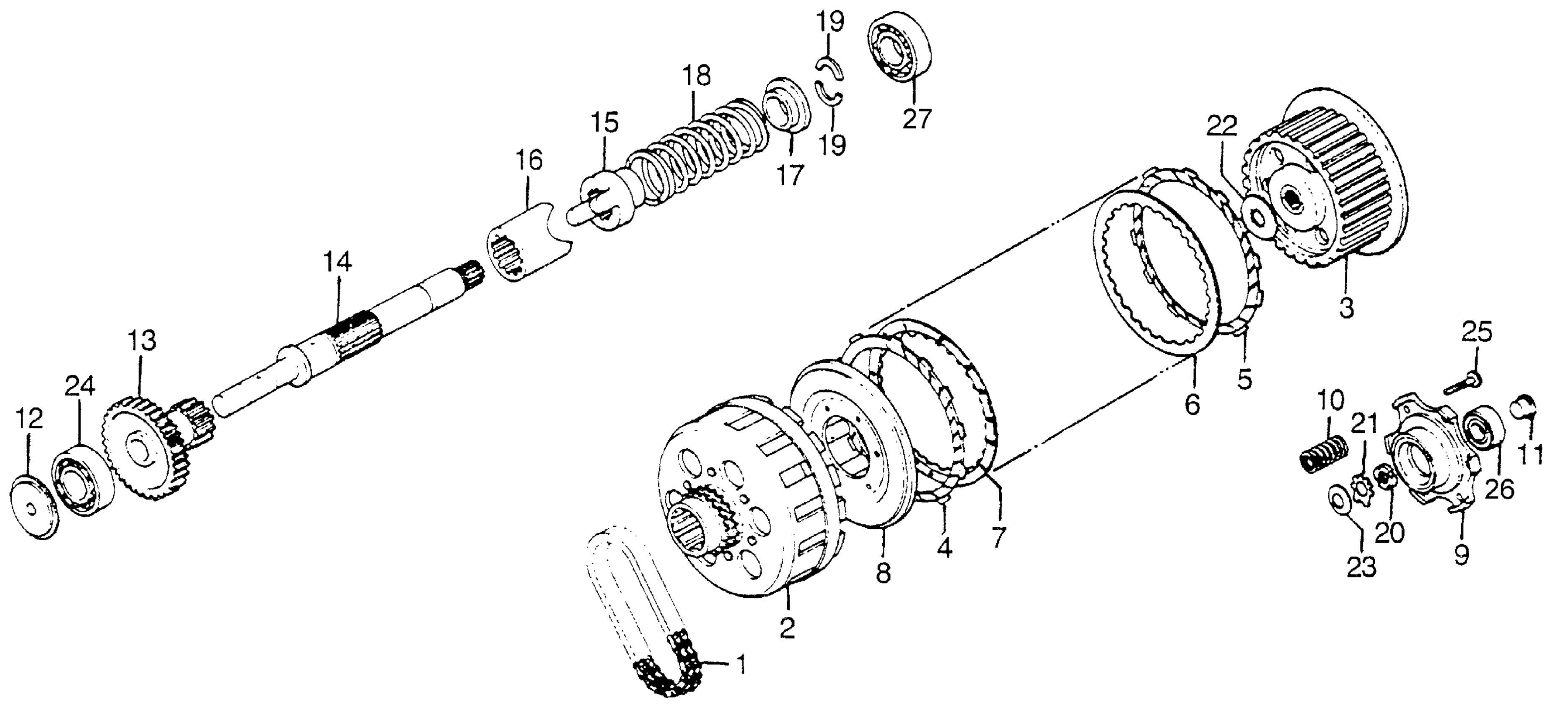

Honda GL1000A (76) GOLD WING, JPN, VIN# GL1-2001483 TO GL1-2032613 CLUTCH + FINAL GEARSHAFT Diagram

#

Description
Price

1

CHAIN, OIL PUMP

15130-371-003

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 2038639 This part replaces 22100-371-000.

22100-371-020

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 2038639

22100-371-020

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 2100001

22100-371-020

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 2003893 This part replaces 22120-371-000.

22120-371-020

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 2003894 to 2038639

22120-371-020

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 2003894 to 2038639 This part replaces 22120-371-313.

22120-371-020

Unavailable

4

DISK A, CLUTCH FRICTION

22201-371-000

$31.28

5

DISK B, CLUTCH FRICTION This part replaces 22202-371-000.

22202-392-000

$20.20

5

DISK B, CLUTCH FRICTION

22202-392-000

$20.20

6

PLATE, CLUTCH

22321-MG8-000

$15.44

6

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

7

PLATE B, CLUTCH | Use up to Engine SN 2019223 This part replaces 22322-371-000.

22322-371-020

Unavailable

7

PLATE B, CLUTCH | Use up to Engine SN 2019223

22322-371-020

Unavailable

7

PLATE B, CLUTCH | Use up to Engine SN 2038639

22322-371-020

Unavailable

7

PLATE B, CLUTCH | Use from Engine SN 2100001

22322-371-020

Unavailable

7

PLATE B, CLUTCH | Use up to Engine SN 2019223 This part replaces 22322-371-313.

22322-371-020

Unavailable

7

PLATE B, CLUTCH | Use up to Engine SN 2038639 This part replaces 22322-371-313.

22322-371-020

Unavailable

8

PLATE, PRESSURE (NOT AVAILABLE) | Use up to Engine SN 2003893

22350-371-000

Unavailable

8

PLATE, PRESSURE (NOT AVAILABLE) | Use from Engine SN 2003894 to 2038639

22350-371-020

Unavailable

8

PLATE, PRESSURE (NOT AVAILABLE) | Use from Engine SN 2003894 to 2038639 This part replaces 22350-371-313.

22350-371-020

Unavailable

9

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22360-371-000

Unavailable

10

SPRING, CLUTCH This part replaces 22401-268-000.

95014-75140

$3.06

10

SPRING, CLUTCH

95014-75140

$3.06

11

PIECE, CLUTCH LIFTER

22846-371-000

Unavailable

12

PLATE B, OIL PASSAGE (NOT AVAILABLE)

23161-371-000

Unavailable

13

GEAR, FINAL DRIVEN (33T)

23511-371-000

Unavailable

14

SHAFT, FINAL GEAR This part replaces 23521-371-000.

23521-371-020

Unavailable

14

SHAFT, FINAL GEAR

23521-371-020

Unavailable

15

LIFTER, DAMPER (NOT AVAILABLE)

23721-371-000

Unavailable

16

CAM, DAMPER (NOT AVAILABLE)

23722-371-000

Unavailable

17

STOPPER, DAMPER SPRING (NOT AVAILABLE)

23731-371-000

Unavailable

18

SPRING, DAMPER (NOT AVAILABLE)

23732-371-000

Unavailable

19

WASHER, SPRING STOPPER

23733-371-000

Unavailable

20

NUT, LOCK (16MM)

90231-KCS-651

$4.21

20

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

21

WASHER, SPRING (16MM)

90431-292-000

$2.92

22

WASHER, SPLINE (23MM) This part replaces 90432-371-000.

90433-MB0-000

$15.39

22

WASHER, SPLINE (23MM)

90433-MB0-000

$15.39

23

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

24

BEARING, RADIAL BALL (20X52X15) (TOYO) This part replaces 91002-371-004.

91003-MG8-003

$40.08

24

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

25

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

25

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

26

BEARING, RADIAL BALL (6003) This part replaces 96100-60030.

96100-60030-00

$9.35

26

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35

27

BEARING, RADIAL BALL (6205) This part replaces 96100-62050.

96100-62050-00

$18.63

27

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63

27

BEARING, RADIAL BALL (6205)

96100-62050-10

$20.75
