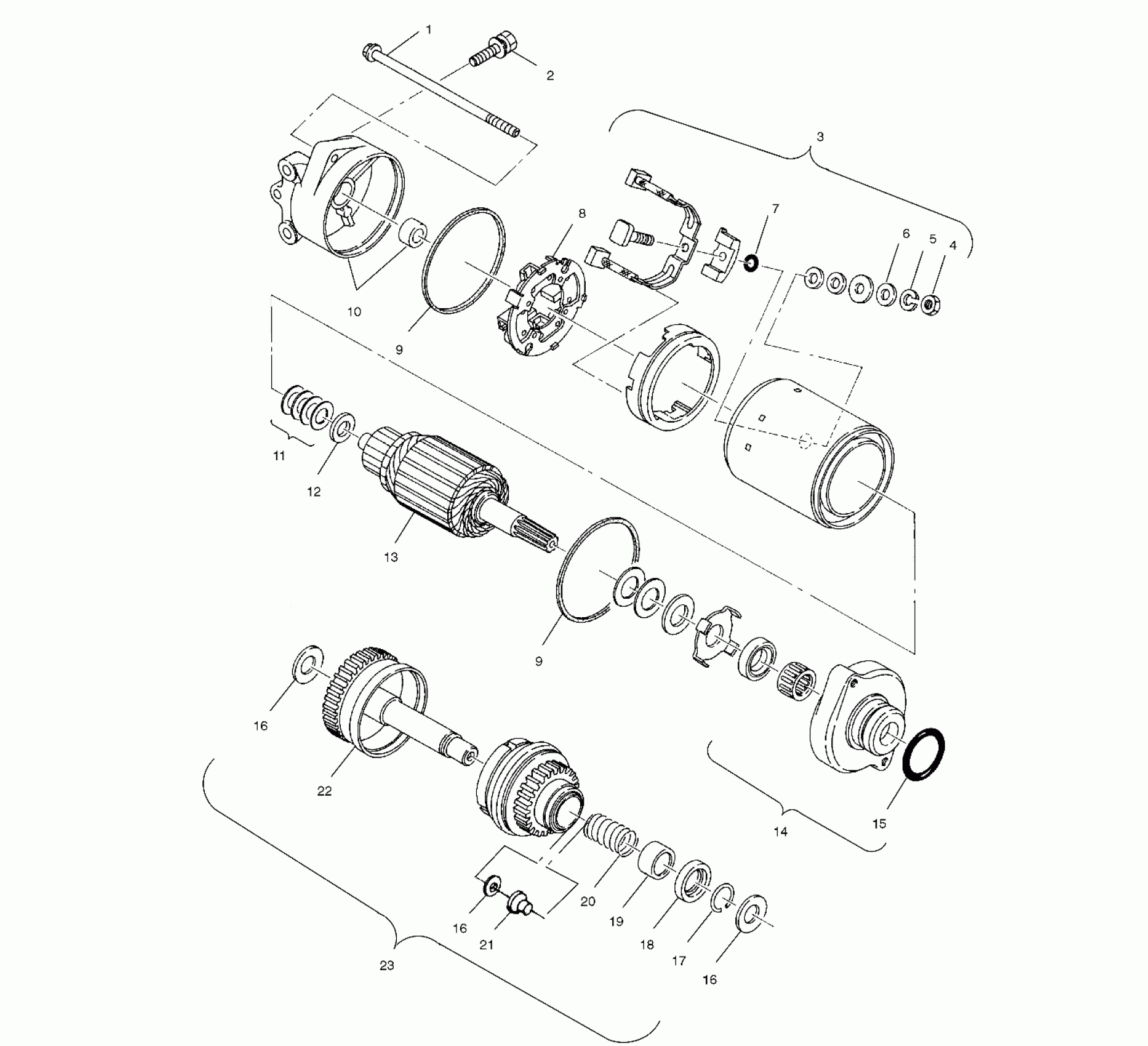

Polaris GENESIS - W025099D STARTING MOTOR - W025099D/W025099I (4971417141C08) Diagram

#

Description
Price

-

Starter, Big Bore [Incl. 1,3-15]

4060118

$285.71

1

Bolt, Through

3240113

$8.73

2

Screw

7516807

Unavailable

3

Brush [Incl. 4-8]

3240115

Unavailable

4

Nut

3240116

Unavailable

5

Washer, Spring

3240117

Unavailable

6

Washer

3240119

Unavailable

7

O-RING

3084408

Unavailable

8

Spring, Brush

3240111

$1.38

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

Asm., Rear Bracket

3240207

$53.17

11

Washer, Thrust

3240118

Unavailable

12

Washer, Thrust

3240112

$0.32

13

Asm., Armature

3240205

$139.99

14

Asm., Front Bracket

3240206

Unavailable

15

O-Ring

3240114

$6.99

16

Washer, Thrust

7555908

$3.17

16

Washer, Thrust

7555908

$3.17

16

Washer, Thrust

7555908

$3.17

17

Ring, Snap

3240126

$0.32

18

Stopper

3240125

Unavailable

19

Cover

3240123

$3.81

20

Spring

7041457

Unavailable

21

Bushing, Flange

3574214

$5.00

22

Asm., Gear [Incl. 16-21]

3240120

$292.59

23

Asm., Bendix [Incl. 16-22]

4060119

$292.59
