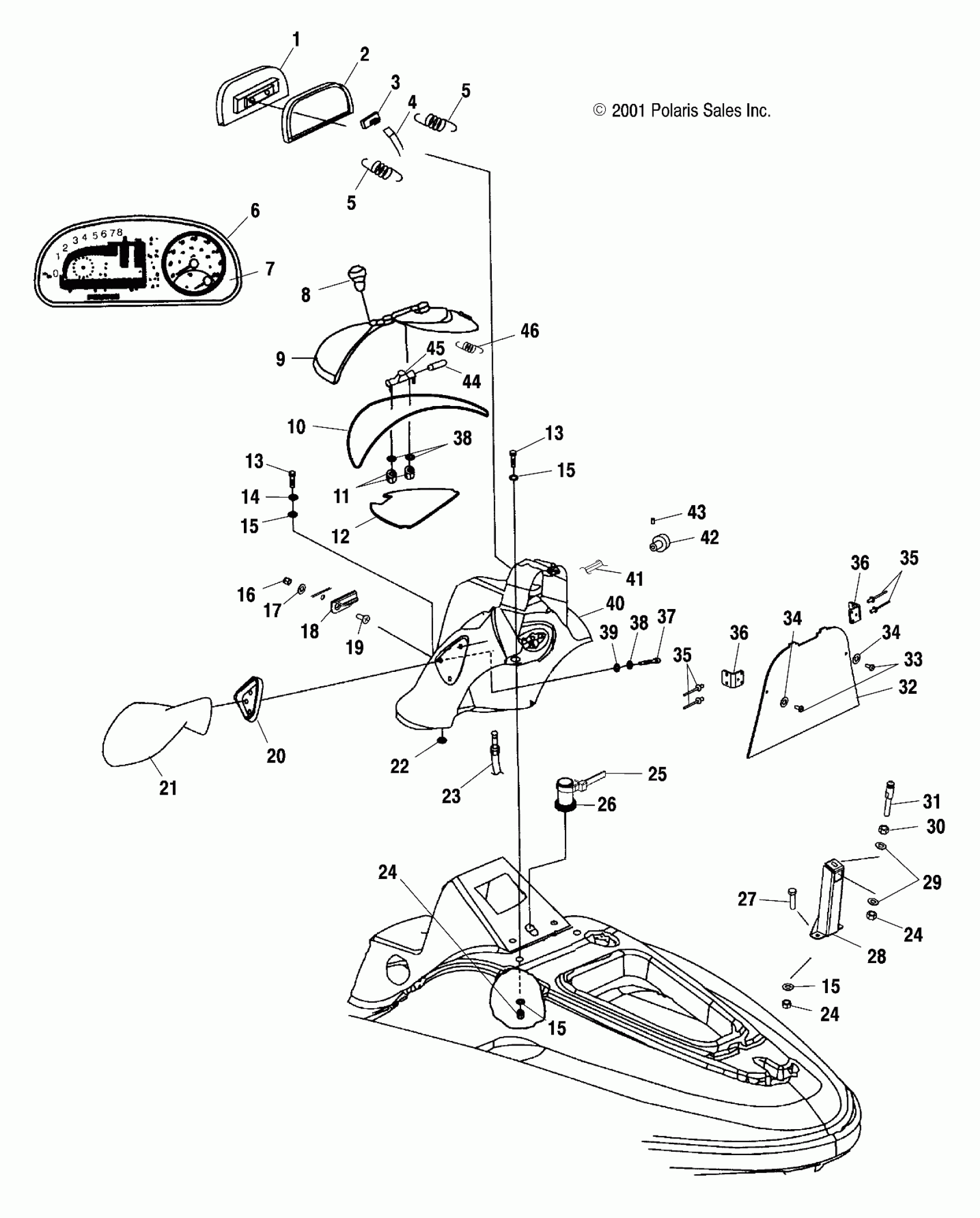

Polaris GENESIS - W025099D SHROUD - W025099D/W025099I (4971417141A03) Diagram

#

Description
Price

1

Gauge, MFI, Digital

3280371

$774.99

2

Gasket, MFI

5411738

$5.16

3

Connector, Deutsche

4010281

$17.30

4

LINE, PITOT, FORMED END [See Water Inlet Pg. B9, Ref. 3]

----

Unavailable

5

Spring, MFI Mounting

7041931

$1.83

5

Spring, MFI Mounting

7041931

$1.83

6

Kit, MFI Button Replacement

2201593

$25.30

7

Bezel, MFI, Overlay

3280342

$23.81

8

Asm., Console Latch

2653011

$28.73

9

Lid, Console

5434564-1134

Unavailable

10

Seal, Console Lid

5521596

Unavailable

11

Nut

7546705

$4.76

12

Pad, Console

5812235

Unavailable

13

Screw

7517668

$2.06

13

Screw

7517668

$2.06

14

Washer, Lock

7556055

Unavailable

15

Washer, Flat

7555831

Unavailable

15

Washer, Flat

7555831

Unavailable

15

Washer, Flat

7555831

Unavailable

15

Washer, Flat

7555831

Unavailable

16

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

17

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

18

Hook, Console, Latch

5245455

Unavailable

19

Screw

7517669

Unavailable

20

Gasket, Mirror, LH

5411557

$4.92

20

Gasket, Mirror, RH

5411558

$4.92

21

Asm., Mirror, Port

2631972-070

$119.05

21

Asm., Mirror, Starboard

2631973-070

$106.35

22

Washer

7555834

Unavailable

23

Cable, Choke

7081055

$77.78

24

NUT, NYLOK

7546804

$1.19

24

NUT, NYLOK

7546804

$1.19

24

NUT, NYLOK

7546804

$1.19

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

Grommet, Deck, Wire Harness

5411664

Unavailable

27

Screw

7517539

Unavailable

28

Post, Door Latch

1821213

Unavailable

29

Washer

7555835

$0.69

30

Nut

7547187

$0.95

31

Pin

5132781

$24.60

32

Cover, Shroud, Front

5812284

$23.81

33

Screw

7511873

Unavailable

34

Washer, Flat

7555837

$1.59

34

Washer, Flat

7555837

$1.59

35

Rivet

7621220

$2.38

35

Rivet

7621220

$2.38

36

Bracket, Shroud Cover

5245451

Unavailable

36

Bracket, Shroud Cover

5245451

Unavailable

37

Screw

7516805

$0.71

38

Washer, Lock

7552613

Unavailable

38

Washer, Lock

7552613

Unavailable

39

Washer, Flat

7555839

Unavailable

40

Shroud, Steering

5434558-1134

Unavailable

41

Bumper, Door Shroud

5812076

$10.81

42

Knob

7081037

$9.05

43

Screw

2080005

$0.69

44

Pin, Hinge

5333698

Unavailable

45

Hinge, Console

5433384

Unavailable

46

Spring

7042007

Unavailable
