SEAT - W025099D/W025099I (4971417141A12)

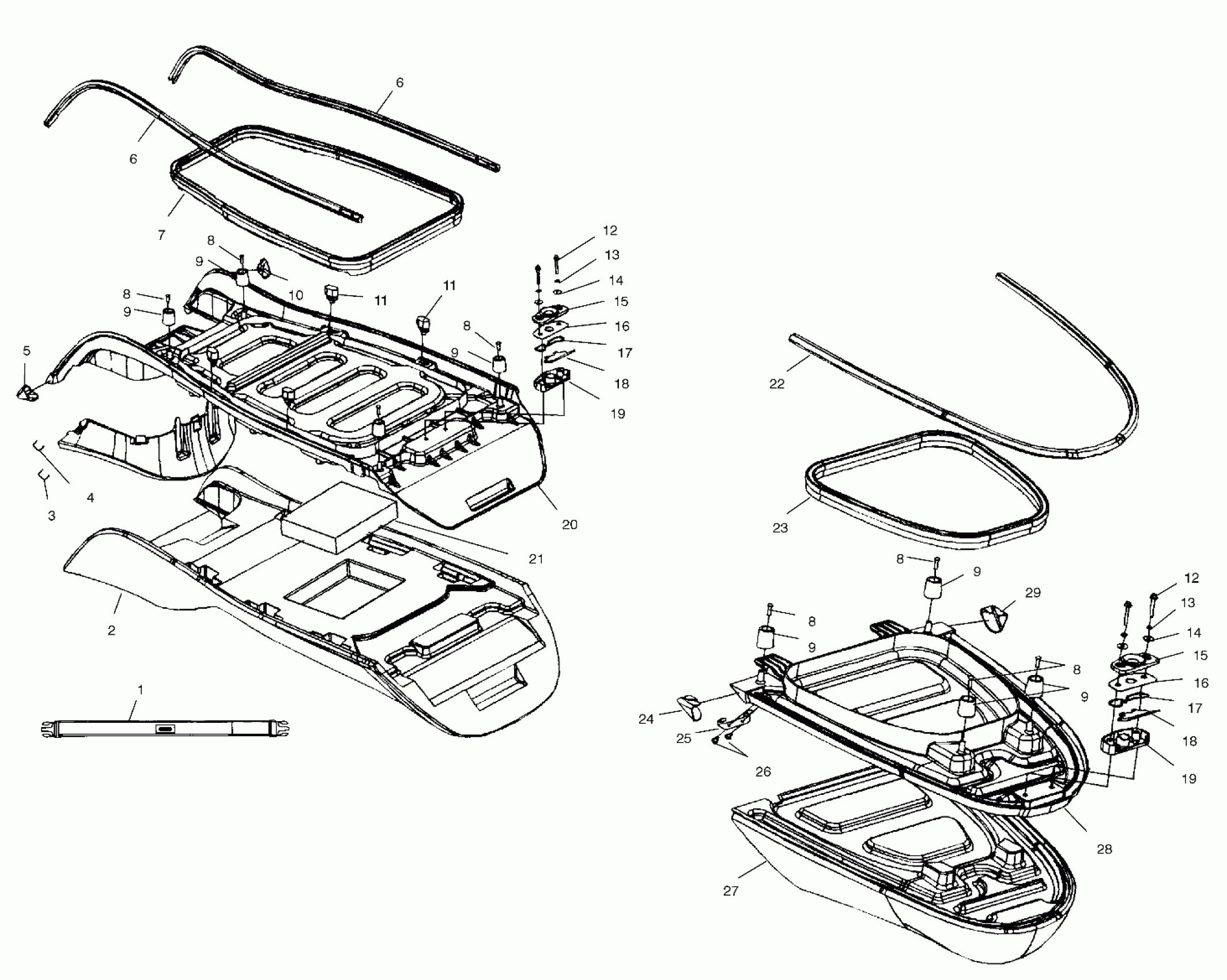

Polaris GENESIS - W025099D SEAT - W025099D/W025099I (4971417141A12) Diagram
#
1
Strap w/Clips
2682566-070
Unavailable
2
Cover, Seat, Front
2682686-370
Unavailable
3
Staple, Short
9810357
Unavailable
4
Staple, Long
9810341
Unavailable
5
Shield, Seat, Front, RH
5434567-370
Unavailable
6
Trim, Seat, Front
5521520
Unavailable
6
Trim, Seat, Front
5521520
Unavailable
7
Seal, Seat, Front
5521483
Unavailable
8
Screw
7517732
Unavailable
8
Screw
7517732
Unavailable
8
Screw
7517732
Unavailable
8
Screw
7517732
Unavailable
8
Screw
7517732
Unavailable
8
Screw
7517732
Unavailable
9
Bumper, Seat
5521533
Unavailable
9
Bumper, Seat
5521533
Unavailable
9
Bumper, Seat
5521533
Unavailable
9
Bumper, Seat
5521533
Unavailable
9
Bumper, Seat
5521533
Unavailable
9
Bumper, Seat
5521533
Unavailable
10
Shield, Seat, Front, LH
5434566-370
Unavailable
11
Bumper, Seat, Oval
5521490
Unavailable
11
Bumper, Seat, Oval
5521490
Unavailable
12
Screw
7516806
Unavailable
12
Screw
7516806
Unavailable
13
Washer, Lock
7555838
Unavailable
13
Washer, Lock
7555838
Unavailable
14
Washer, Flat
7555839
Unavailable
14
Washer, Flat
7555839
Unavailable
15
Plate, Bottom, Seat Base Latch
5431357
Unavailable
15
Plate, Bottom, Seat Base Latch
5431357
Unavailable
16
Plate, Seat Base Latch
5211314
Unavailable
16
Plate, Seat Base Latch
5211314
Unavailable
17
Spring, Seat Base Latch
7042036
Unavailable
17
Spring, Seat Base Latch
7042036
Unavailable
18
Handle, Seat Base Latch
5431358
Unavailable
18
Handle, Seat Base Latch
5431358
Unavailable
19
Plate, Top, Seat Base Latch
5431359
Unavailable
19
Plate, Top, Seat Base Latch
5431359
Unavailable
20
Asm., Seat, Front [Incl. 2-19]
2683088-370
Unavailable
21
Pad, Foam
5812158
Unavailable
22
Trim, Seat, Rear
5521522
Unavailable
23
Seal, Seat, Rear
5521484
Unavailable
24
Shield, Seat, Rear, RH
5434569-368
Unavailable
25
Cap, End, Seat
5433376-070
Unavailable
26
CLIP, XMAS TREE
5432966
$1.49
27
Cover, Seat, Rear
2682427-368
Unavailable
28
Asm., Seat, Rear [Incl. 8,9,12-19,22-29]
2682928-368
Unavailable
29
Shield, Seat, Rear, LH
5434568-368
Unavailable
