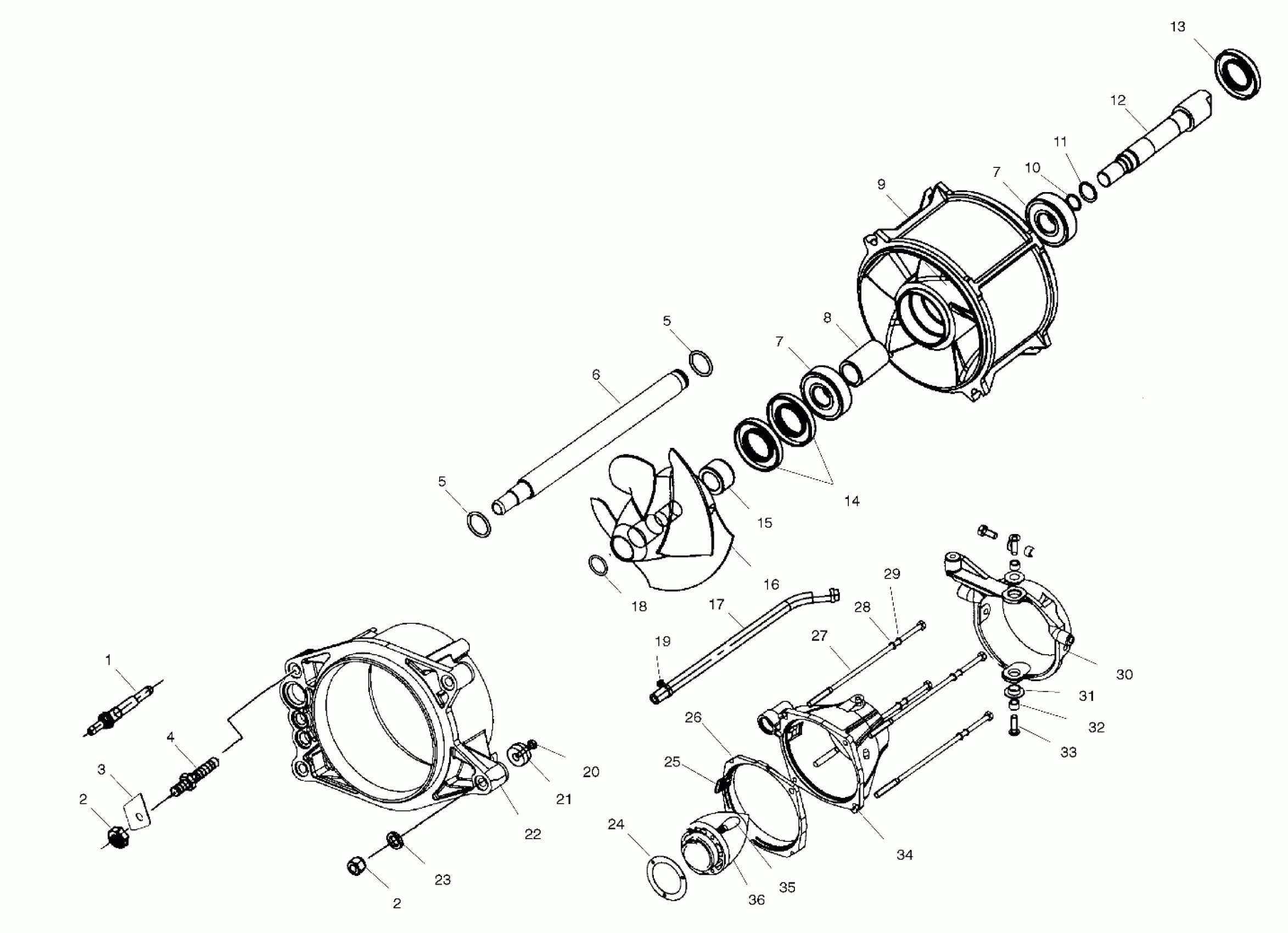

Polaris GENESIS - W025099D PROPULSION - W025099D/W025099I (4971417141B04) Diagram

#

Description
Price

1

Pipe, Water

5431990

$49.59

2

Nut, Nylok

7542455

Unavailable

2

Nut, Nylok

7542455

Unavailable

3

Bracket, Steering Cable

5244556

Unavailable

4

Stud, Pump Mounting

5132111

Unavailable

5

O-Ring

5410735

$0.79

5

O-Ring

5410735

$0.79

6

Pipe, Water, Engine

5433334

$22.06

7

Bearing

3514008

Unavailable

7

Bearing

3514008

Unavailable

8

Spacer, Bearing

5010294

Unavailable

9

Stator

5132088

$364.99

10

O-Ring

5410817

Unavailable

11

O-Ring

5410818

$0.79

12

Shaft, Stub

5132674

$47.62

13

Seal, Tail Cone

5410819

$0.79

14

Seal, Stator Bearing

3610043

Unavailable

15

Spacer, Impeller

5010295

Unavailable

16

Impeller

5131366

Unavailable

17

Hose, Water

8450054-100

Unavailable

18

O-Ring

5410731

Unavailable

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

Screw

7522019

$0.95

21

Anode, Zinc

5630598

Unavailable

22

Housing, Pump

5131574

Unavailable

23

Washer, Flat

7555966

$2.62

24

Seal, Tail Cone

5811984

Unavailable

25

Screen, Engine Inlet

5431523

Unavailable

26

Wedge, Pump

5432841

Unavailable

27

Screw

7517654

$17.89

28

Washer, Flat

7555835

$0.69

29

Washer, Lock

7552610

Unavailable

30

Nozzle, Steering, SLT

5130999

Unavailable

31

Bearing, Steering Nozzle

5431518

Unavailable

32

Collar

5130938

Unavailable

33

Screw

7515366

Unavailable

34

Nozzle

1350038

$204.99

35

Cone, Pump

5431519

Unavailable

36

Screw

7512064

Unavailable
