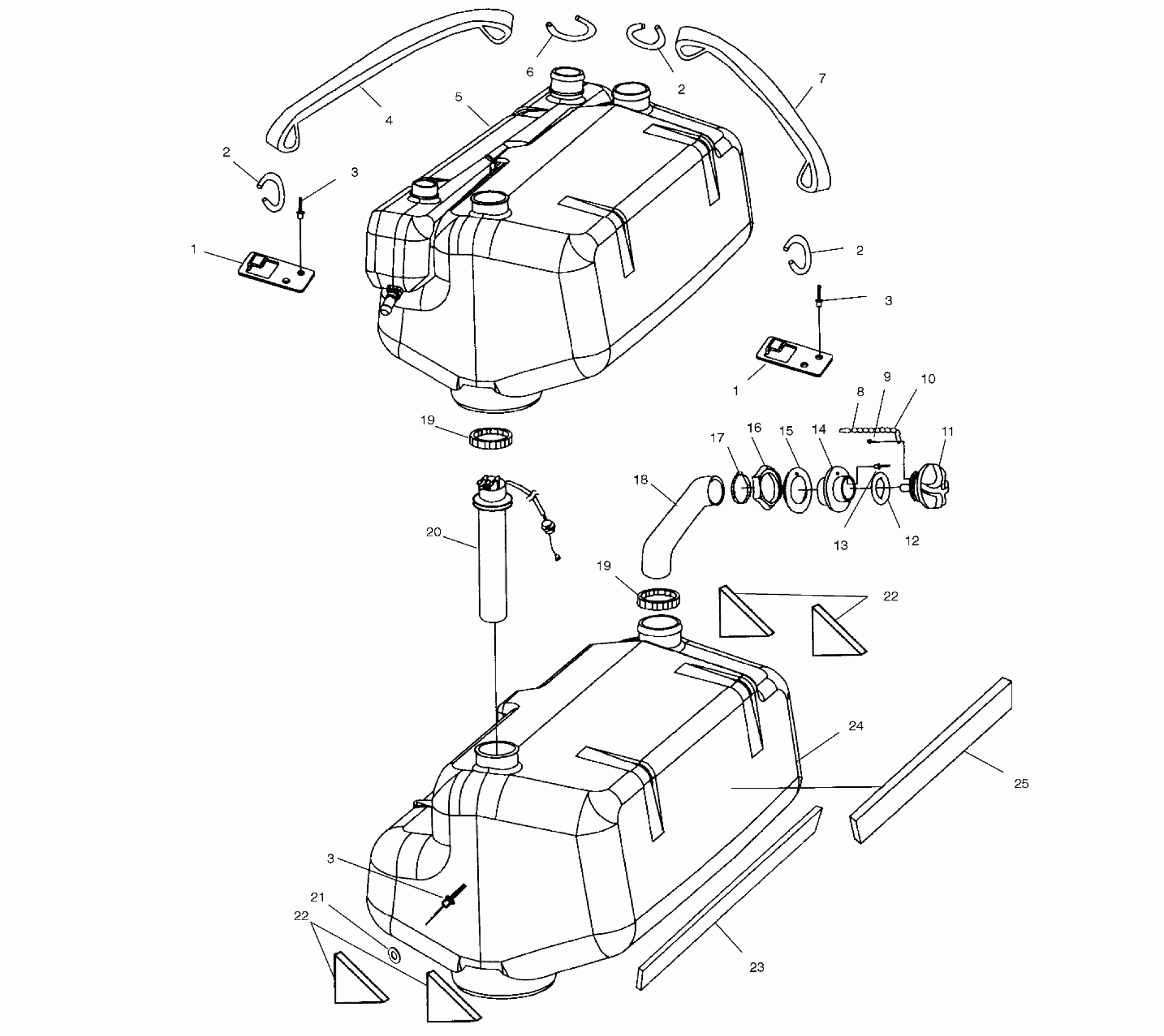

Polaris GENESIS - W025099D FUEL TANK - W025099D/W025099I (4971417141A10) Diagram

#

Description
Price

1

Clip, Strap

5240134

Unavailable

1

Clip, Strap

5240134

Unavailable

2

Hook, Strap, Narrow

5243775

$4.92

2

Hook, Strap, Narrow

5243775

$4.92

2

Hook, Strap, Narrow

5243775

$4.92

3

RIVET

7621479

$1.98

3

RIVET

7621479

$1.98

3

RIVET

7621479

$1.98

4

Strap, Rubber

5430621

Unavailable

5

TANK, OIL [See Oil Tank Pg. A13, Ref. 16]

----

Unavailable

6

Hook, Strap

5243776

$2.46

7

STRAP, RUBBER

5410608

$9.70

8

Coupling, End, Fuel Cap Chain

7080442

Unavailable

9

Screw

7511873

Unavailable

10

Chain

7080710

Unavailable

11

Cap, Fuel, Ratchet

2520177

Unavailable

12

Seal, Fuel Cap

5411305

Unavailable

13

Rivet

7621229

Unavailable

14

Inlet, Fuel

5433553

$13.89

15

Seal, Fuel Inlet

5811492

$20.59

16

Nut, Fuel Inlet

5433621

$17.44

17

CLAMP, HOSE

7080451

$7.14

18

Hose, Fuel Fill

5411546

$61.90

19

Clamp, Hose

7080766

$2.06

19

Clamp, Hose

7080766

$2.06

20

Asm., Pickup Sender

2410124

Unavailable

21

Washer, Flat

7555837

$1.59

22

Pad

5811999

$3.97

22

Pad

5811999

$3.97

23

Pad, Fuel Tank

5812152

Unavailable

24

Tank, Fuel

5433018

Unavailable

25

Pad, Fuel Tank, Side

5811901

Unavailable
