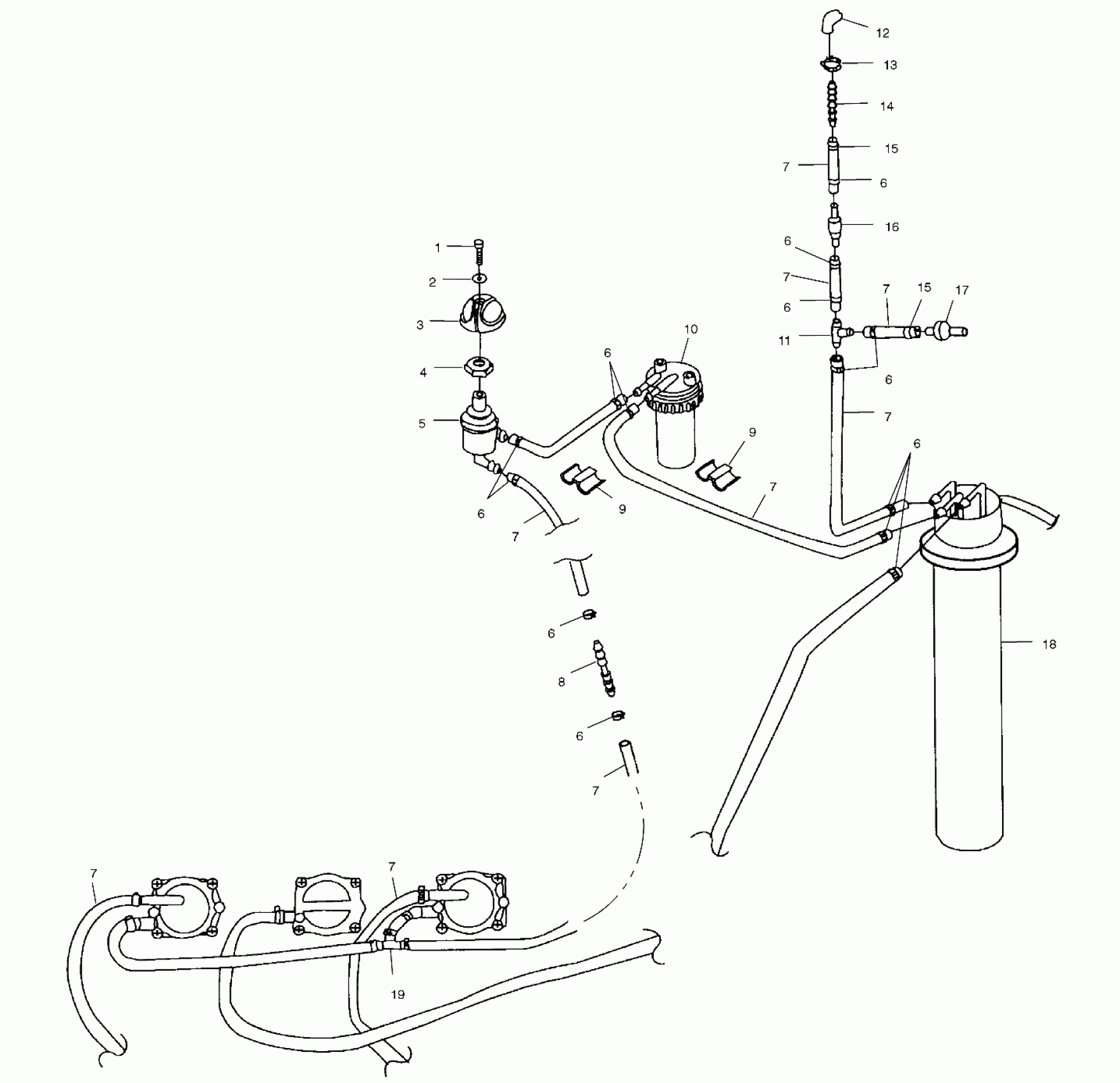

Polaris GENESIS - W025099D FUEL SYSTEM - W025099D/W025099I (4971417141A11) Diagram

#

Description
Price

1

Screw

7516302

$3.99

2

Washer, Flat

7555840

$3.35

3

Knob, Fuel Valve

5432836-070

Unavailable

4

NUT, FUEL VALVE

5431451

Unavailable

5

Valve, On/Off

7052159

$43.99

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

6

Clamp, Hose

7080476

$6.39

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

7

Line, Fuel

8450046-1525

Unavailable

8

Fitting

7052329

Unavailable

9

T-Clip

7080482

$6.39

9

T-Clip

7080482

$6.39

10

SEPARATOR, FUEL WATER [See Fuel/Water Separator Pg. C9, Ref. 5]

-------

Unavailable

11

Fitting, Tee

7052111

Unavailable

12

Grommet, Vent

5410682

Unavailable

13

Cable Tie

7080483

Unavailable

14

Connector, 1/4-3/16

7052078

Unavailable

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

Valve, Relief Check

7051015

Unavailable

17

Value, Vacuum Check

7052118

Unavailable

18

ASM., FUEL SENDER [See Fuel Tank Pg. A10, Ref. 20]

-------

Unavailable

19

FITTING, TEE

7052075

$9.59
