Description

Price

1

Switch, Temperature

2410290

Unavailable

2

Decal, Spark Plug

7077026

$2.95

3

DECAL, WARNING [See Cylinder and Manifold Pg. C2, Ref. 2]

-------

Unavailable

4

Washer

7556184

Unavailable

4

Washer

7556184

Unavailable

5

Plate, Mount, w/Washer, Front

5631166-329

Unavailable

6

Washer, Flat

7556170

Unavailable

6

Washer, Flat

7556170

Unavailable

7

Plate, Lock

5245460

Unavailable

7

Plate, Lock

5245460

Unavailable

8

Screw

7517330

Unavailable

8

Screw

7517330

Unavailable

9

Plate, Mount w/Washer, Rear

5631167-329

Unavailable

10

Mount, Engine

3021253

Unavailable

11

Shim, Engine Mount

5211727

Unavailable

12

Washer, Lock

7552610

Unavailable

13

Screw

7515365

Unavailable

14

Washer, Flat

7555848

Unavailable

15

Nut, Nylok

7542725

Unavailable

16

Washer, Lock

7556055

Unavailable

17

Screw

7517497

$3.97

18

Kit, Short Block, 1200 Triple NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

2201704

Unavailable

19

Clip, Retainer

5240876

Unavailable

20

BOLT

7516603

$10.39

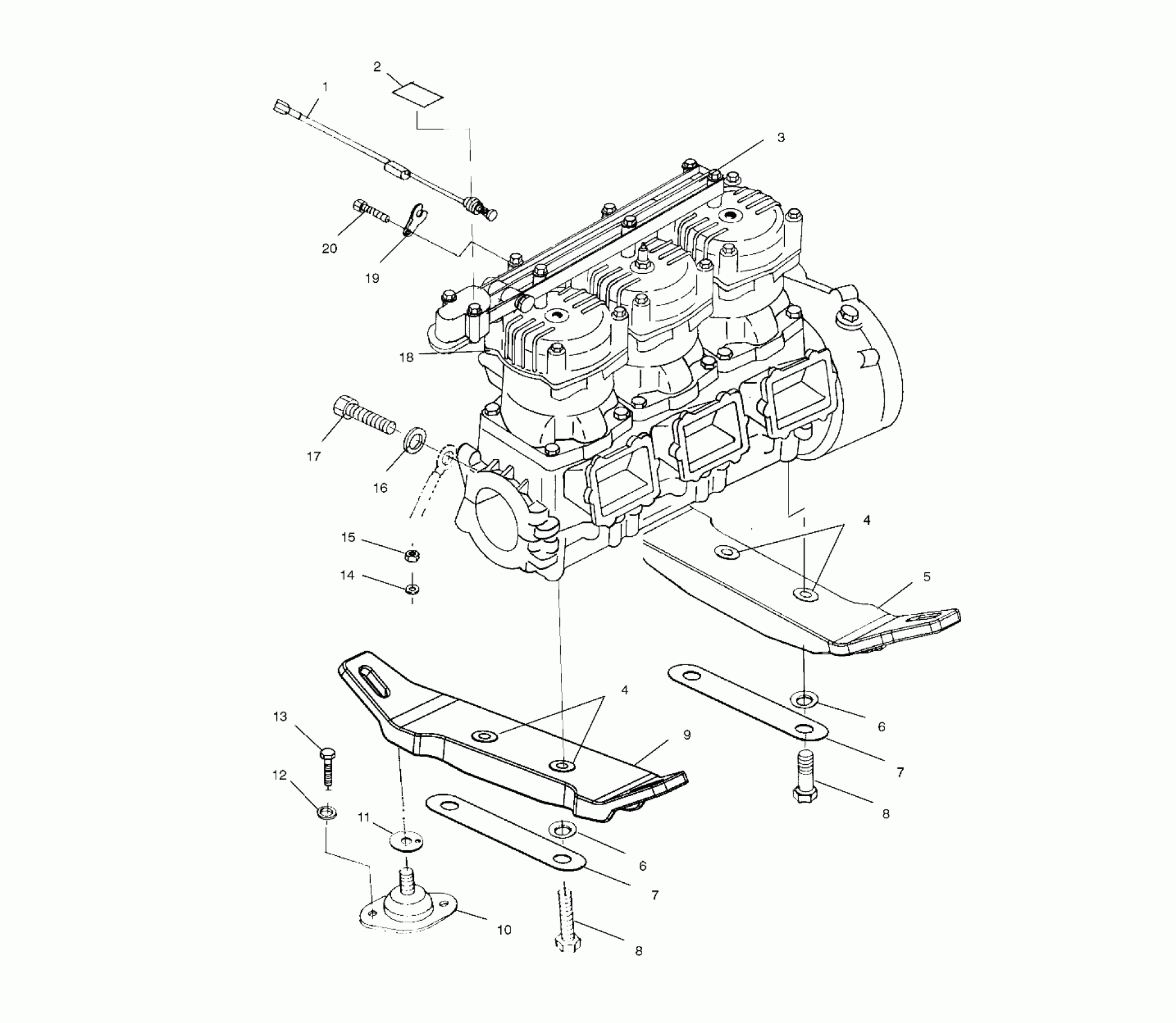

Polaris GENESIS - W025099D ENGINE MOUNTING - W025099D/W025099I (4971417141B02) Diagram

Switch, Temperature

Decal, Spark Plug

DECAL, WARNING [See Cylinder and Manifold Pg. C2, Ref. 2]

Washer

Washer

Plate, Mount, w/Washer, Front

Washer, Flat

Washer, Flat

Plate, Lock

Plate, Lock

Screw

Screw

Plate, Mount w/Washer, Rear

Mount, Engine

Shim, Engine Mount

Washer, Lock

Screw

Washer, Flat

Nut, Nylok

Washer, Lock

Screw

Kit, Short Block, 1200 Triple NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

Clip, Retainer

BOLT
