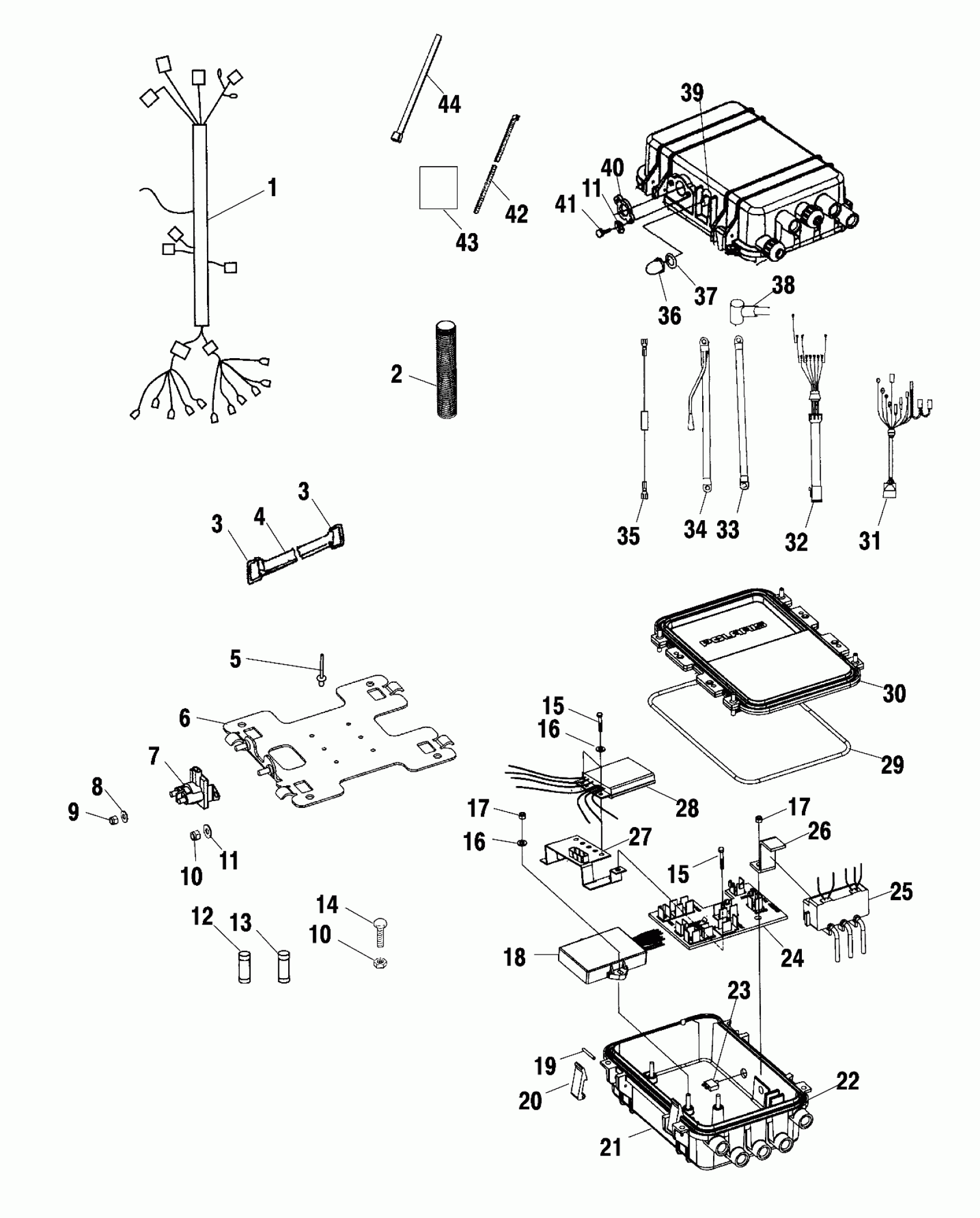

Polaris GENESIS - W025099D ELECTRICAL BOX - W025099D/W025099I (4971417141B11) Diagram

#

Description
Price

1

Harness, Main

2460999

$269.84

2

Conduit

5521286-2.5

Unavailable

3

D-Hook

5224472

Unavailable

3

D-Hook

5224472

Unavailable

4

Strap, Battery Holddown

5411456

Unavailable

5

RIVET

7621479

$1.98

6

Bracket, Electrical Box

5246476

Unavailable

7

SOLENOID, STARTER [See Magneto Pg. C7, Ref. 14]

----

Unavailable

8

Washer, Lock

7552613

Unavailable

9

Nut

7546705

$4.76

10

Nut, Nylok

7542133

Unavailable

10

Nut, Nylok

7542133

Unavailable

11

Washer, Flat

7555836

$3.99

11

Washer, Flat

7555836

$3.99

12

Fuse, 3 Amp

4060161

Unavailable

13

Fuse, 1/4 Amp

4060111

Unavailable

14

Bolt

7515113

Unavailable

15

Screw

7512042

Unavailable

15

Screw

7512042

Unavailable

16

Washer, Flat

7555837

$1.59

16

Washer, Flat

7555837

$1.59

17

Nut, Nylok

7547061

$0.56

17

Nut, Nylok

7547061

$0.56

18

CONTROLLER [See Magneto Pg. C7, Ref. 12]

----

Unavailable

19

Pin, Latch

5333544

$10.46

20

Latch

5432503

$102.38

21

Box, Electrical

5433549

Unavailable

22

Asm., Electrical Box, Ignition [Incl. 20,21,30,31]

2632137

Unavailable

23

Breaker, Circuit

2434011

$20.48

24

Asm., Terminal Board

2410201

Unavailable

25

COIL, IGNITION, TRIPLE [See Magneto Pg. C7, Ref. 13]

----

Unavailable

26

Bracket, Coil

5244369

Unavailable

27

Strap, Grounding w/Fuses

2410250

Unavailable

28

Regulator, 1 Button

4010648

Unavailable

29

Seal, Plastic

5432569

Unavailable

30

Cover, Electrical Box

5433119

Unavailable

31

Harness, 9 Wire Stator

2460717

$81.75

32

Harness, Reverse

2461001

$38.41

33

Cable, Solenoid/Starter

4010237

Unavailable

34

Cable, Battery/Solenoid

4010572

Unavailable

35

Harness, Jumper

2460928

$13.89

36

Boot, Threaded

7080461

$13.99

37

O-Ring

5411491

$1.03

38

Insulator, Cable

5410436

$1.59

39

Decal, Electrical Box Reset

7073734

Unavailable

40

Plate, Stator

5432574

$6.59

41

Screw

7517830

$2.70

42

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

43

Anchor, Cable Tie

7080464

Unavailable

44

Cable Tie

7080483

Unavailable
