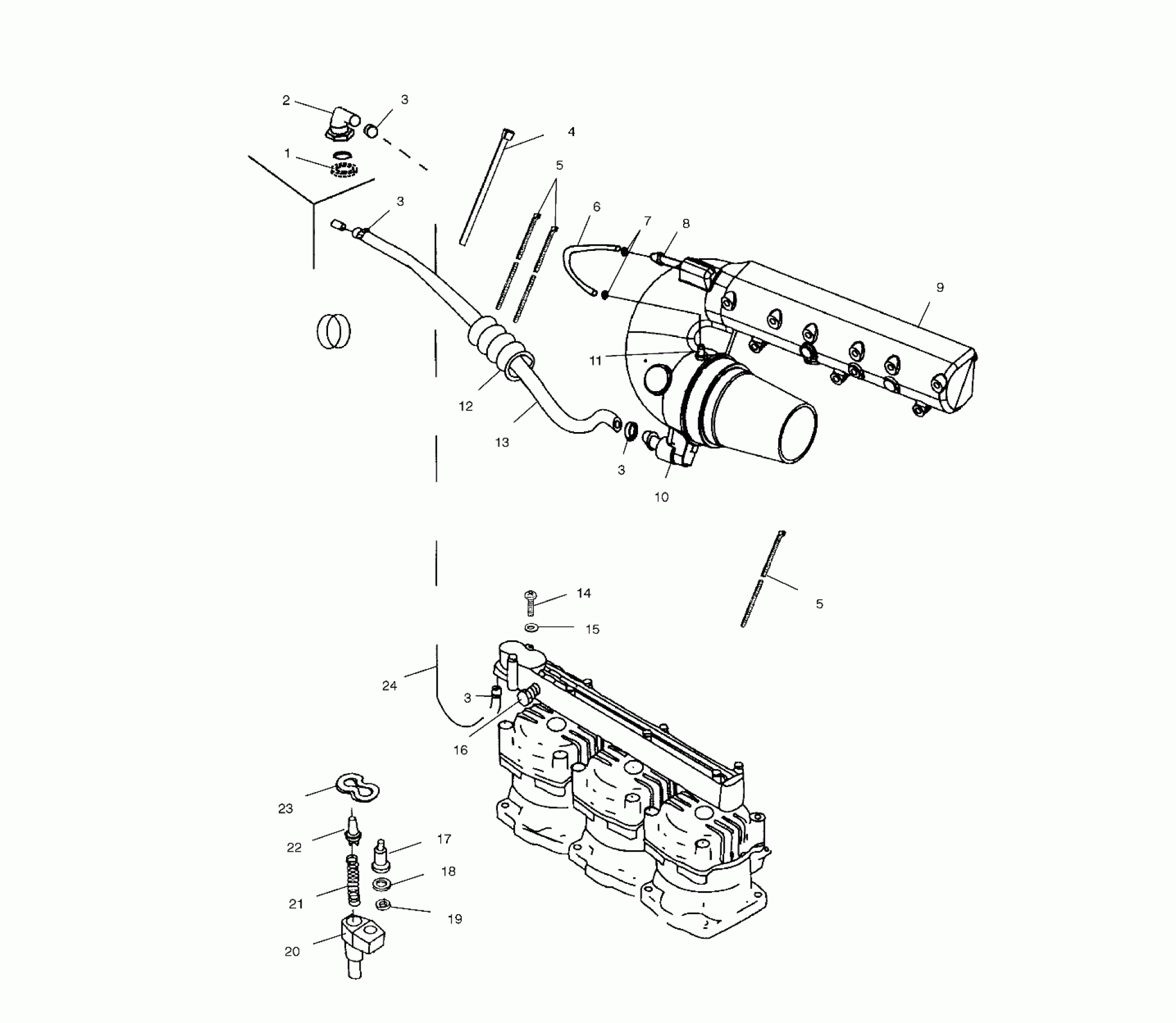

Polaris GENESIS - W025099D COOLING SYSTEM - W025099D/W025099I (4971417141B08) Diagram

#

Description
Price

1

Gasket

5812237

Unavailable

2

Fitting, Thru-Hull

5434149-133

$17.30

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

4

Strap, Cable

7080598

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

Hose, Stinger

5411689

$23.02

7

Clamp, Hose

7080476

$6.35

8

FITTING, WATER INLET [See Exhaust System Pg. B6, Ref. 3]

----

Unavailable

9

ASM., EXHAUST MANIFOLD [See Exhaust System Pg. B6, Ref. 34]

----

Unavailable

10

FITTING, EXHAUST INJECTOR [See Exhaust System Pg. B6, Ref. 2]

----

Unavailable

11

FITTING, EXHAUST SCREEN [See Exhaust System Pg. B6, Ref. 1]

----

Unavailable

12

Conduit, Flex

5521287-117

Unavailable

13

Hose, Water

5411542

Unavailable

14

Screw

7515149

Unavailable

15

Washer, Flat

7555836

$3.99

16

Plug, Pipe

7051527

$6.59

17

Thermostat, 143 Degree F.

7051008

Unavailable

18

Gasket, Thermostat

5412014

Unavailable

19

Washer

7556174

Unavailable

20

Cover, Thermostat

5631136

Unavailable

21

Spring, Compression

7041310

$1.83

22

Valve, Pop-Off

5433823

$4.92

23

Seal, Thermostat Housing

5410860

Unavailable

24

Hose, Water, Out

5412116

Unavailable
