SHROUD - W015099D (4964866486A003)

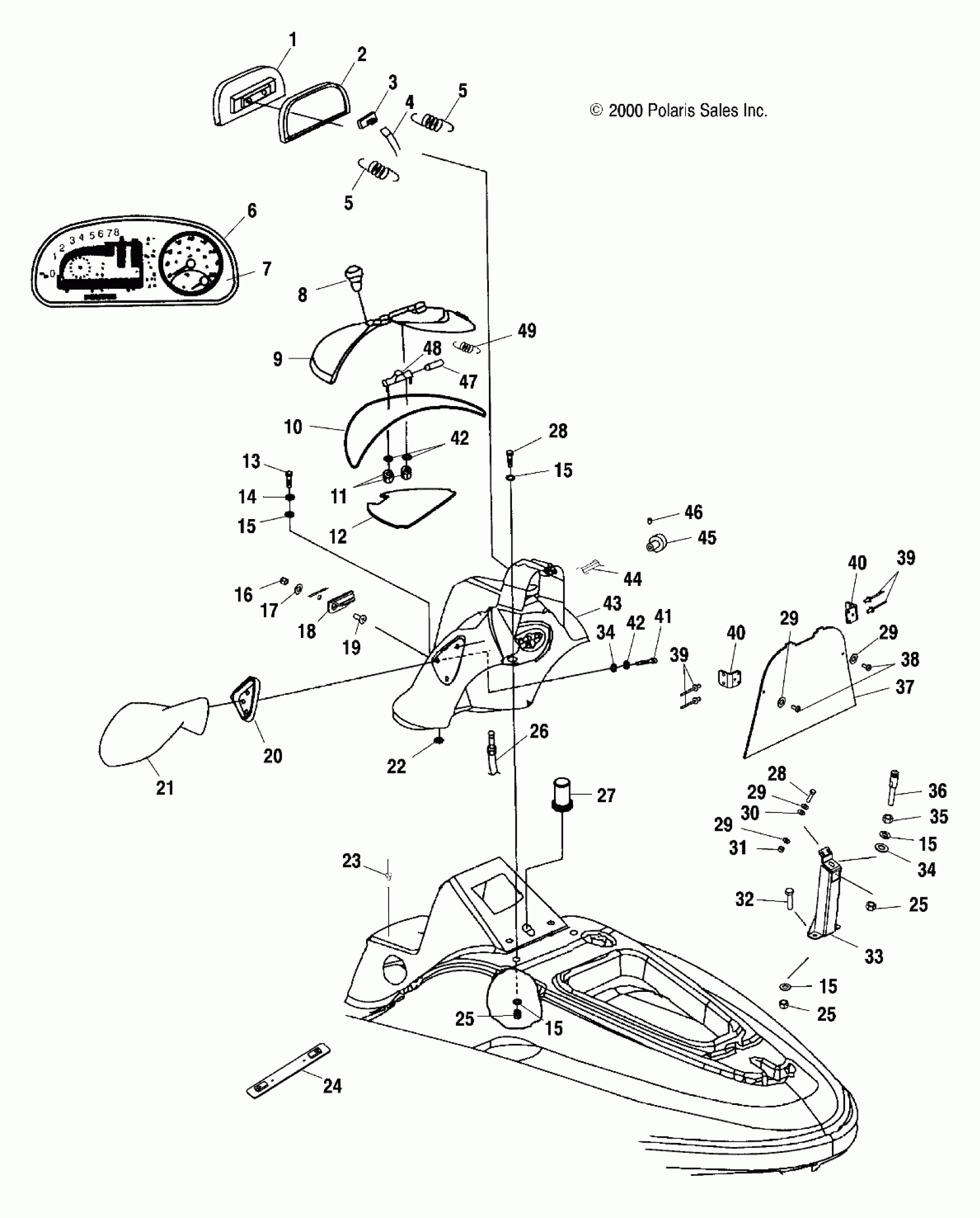

Polaris GENESIS - W015099D SHROUD - W015099D (4964866486A003) Diagram
#
1
GAUGE-MFI,ANALOG,DIGITAL
3280371
Unavailable
2
GASKET-MFI
5411738
Unavailable
3
CONNECTOR-DEUTCHE,4PIN W/PLUGS
4010281
Unavailable
4
Line, Pitot, Formed End (See Water Inlet Pg. B9, Ref. 3) (See Water Inlet Pg. B9, Ref. 3)
-------
Unavailable
5
SPRING,MOUNTING,MFI
7041931
Unavailable
5
SPRING,MOUNTING,MFI
7041931
Unavailable
6
MFI,BUTTON REPLACEMENT,KIT
2201593
Unavailable
7
BEZEL-MFI,OVERLAY
3280342
Unavailable
8
DESC NOT_AVAILABLE
2663011
Unavailable
9
LID-CONSOLE,CAT BLUE
5434176-1119
Unavailable
10
SEAL-BULB,CONSOLE LID
5521579
Unavailable
11
NUT, 6 MM.,S.S.(10)
7546705
$4.79
12
PAD-CONSOLE
5812235
Unavailable
13
SCREW(10)
7517668
Unavailable
14
WASHER,LOCK,SS.
7556055
Unavailable
15
WASHER, FLAT, S.S.(10)
7555831
Unavailable
15
WASHER, FLAT, S.S.(10)
7555831
Unavailable
15
WASHER, FLAT, S.S.(10)
7555831
Unavailable
15
WASHER, FLAT, S.S.(10)
7555831
Unavailable
15
WASHER, FLAT, S.S.(10)
7555831
Unavailable
16
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
17
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
18
HOOK-CONSOLE,LATCH
5245455
Unavailable
19
SCREW (10)
7517669
Unavailable
20
GASKET-MIRROR,LH
5411557
Unavailable
20
GASKET-MIRROR,RH
5411558
Unavailable
21
MIRROR,LH,BLACK,ASM.
2631972-070
Unavailable
21
MIRROR,RH,BLACK,ASM.
2631973-070
Unavailable
22
WASHER, S.S.(10)
7555834
Unavailable
23
RIVET-POP (50)
7661042
Unavailable
24
MOUNT,SHROUD
1820725
Unavailable
25
NUT,HEX,(10)
7546804
$1.49
25
NUT,HEX,(10)
7546804
$1.49
25
NUT,HEX,(10)
7546804
$1.49
26
CABLE,CHOKE Substituted by 7081023
7080788
Unavailable
27
GROMMET-DECK,WIRE HARNESS
5411664
Unavailable
28
BOLT, SS.(10)
7512045
$4.99
28
BOLT, SS.(10)
7512045
$4.99
29
WASHER, FLAT, S.S.(10)
7555837
Unavailable
29
WASHER, FLAT, S.S.(10)
7555837
Unavailable
29
WASHER, FLAT, S.S.(10)
7555837
Unavailable
29
WASHER, FLAT, S.S.(10)
7555837
Unavailable
30
WASHER,RUBBER(10)
7555870
Unavailable
31
NUT, HEX, S.S.(10)
7541931
$4.79
32
SCREW,SS. Substituted by 7517339
7517539
Unavailable
33
WELD-ASM SHROUD BRACE,LATCH
1821158
Unavailable
34
WASHER, FLAT, S.S.(10)
7555839
Unavailable
34
WASHER, FLAT, S.S.(10)
7555839
Unavailable
35
NUT-M8X1.25,SS(10)
7547187
Unavailable
36
PIN-HOOD,LATCH
5132781
Unavailable
37
COVER-SHROUD,FRNT
5812284
Unavailable
38
SCREW(10)
7511873
Unavailable
39
RIVET-POP
7621220
$2.39
39
RIVET-POP
7621220
$2.39
40
BRKT-SHROUD COVER,MFI
5245451
Unavailable
40
BRKT-SHROUD COVER,MFI
5245451
Unavailable
41
SCREW, S.S.(10)
7516805
Unavailable
42
WASHER, LOCK(10)
7552613
Unavailable
42
WASHER, LOCK(10)
7552613
Unavailable
43
SHROUD-STEER,MOD TAB,CT BLU MT
5434211-1119
Unavailable
44
BUMPER,DOOR/SHROUD
5812076
Unavailable
45
KNOB,CHOKE
2080004
Unavailable
46
Screw
2080005
Unavailable
47
PIN-HINGE,CONSOLE
5333698
Unavailable
48
HINGE-CONSOLE,3/16 PIN
5433384
Unavailable
49
SPRING-TORTION,CONSOLE,070.SS [Item NotAvailable]
7042007
Unavailable
