Description

Price

1

CAP,OILTANK

5432843

Unavailable

2

RIVET(50)

7621229

Unavailable

3

RIVET-POP (50)

7661042

Unavailable

4

INLET-OIL,.150

5433914

Unavailable

5

GASKET,OIL INLET

5811554

Unavailable

6

CLAMP, HOSE(10) Substituted by 7080870

7080481

Unavailable

6

CLAMP, HOSE(10) Substituted by 7080870

7080481

Unavailable

7

ELBOW,90 DEG.

7052130

Unavailable

8

SENDER ASM,OIL LEVEL

2410131

Unavailable

9

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FILTER,OIL

2530015

Unavailable

12

CLAMP-HOSE,.875-SS

7080474

$8.40

12

CLAMP-HOSE,.875-SS

7080474

$8.40

13

FUEL LINE

8450059-150

Unavailable

14

CONDUIT,CONVOL(30 CM)

4010051-30

Unavailable

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

TANK,OIL

5433083

Unavailable

17

VALVE,VACUUM CHECK

7052118

Unavailable

18

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

18

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

19

HOSE-FILL,OIL

5412098

Unavailable

20

Coupling

7080442

Unavailable

20

Coupling

7080442

Unavailable

21

CHAIN,BEAD,FUELCAP RETAIN.

7080710

Unavailable

22

SCREW, SS.

7517241

Unavailable

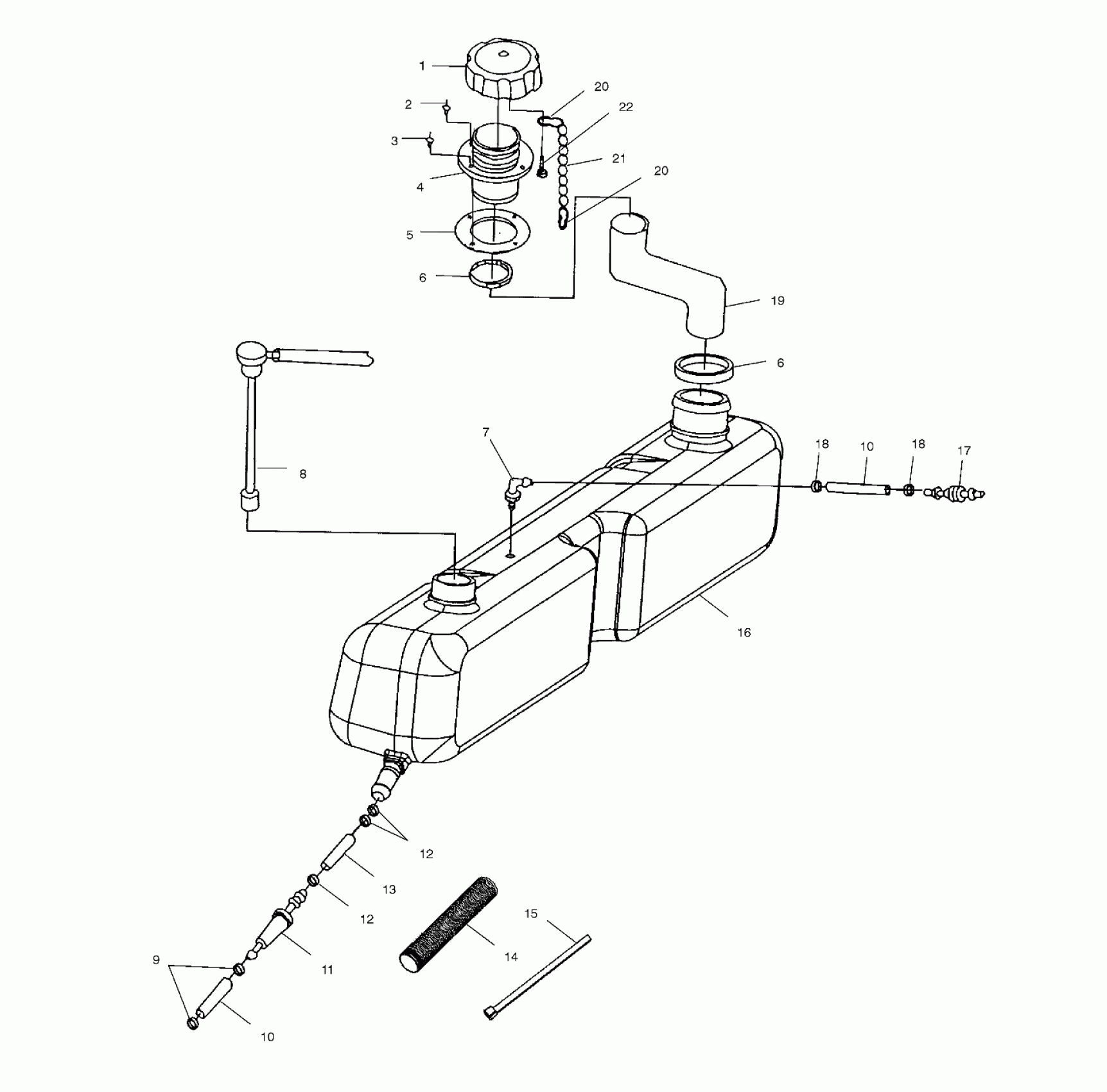

Polaris GENESIS - W015099D OIL TANK - W015099D (4964866486A013) Diagram

CAP,OILTANK

RIVET(50)

RIVET-POP (50)

INLET-OIL,.150

GASKET,OIL INLET

CLAMP, HOSE(10) Substituted by 7080870

CLAMP, HOSE(10) Substituted by 7080870

ELBOW,90 DEG.

SENDER ASM,OIL LEVEL

CLAMP-HOSE, (LARGE GREEN)

FUEL LINE,1/4 ID(1525 CM.)

FUEL LINE,1/4 ID(1525 CM.)

FILTER,OIL

CLAMP-HOSE,.875-SS

CLAMP-HOSE,.875-SS

FUEL LINE

CONDUIT,CONVOL(30 CM)

CABLE-TIE,DIA12-50MM,WTHR-RES.

TANK,OIL

VALVE,VACUUM CHECK

STRAP, PANDUIT,4 IN.(10)

STRAP, PANDUIT,4 IN.(10)

HOSE-FILL,OIL

Coupling

Coupling

CHAIN,BEAD,FUELCAP RETAIN.

SCREW, SS.
