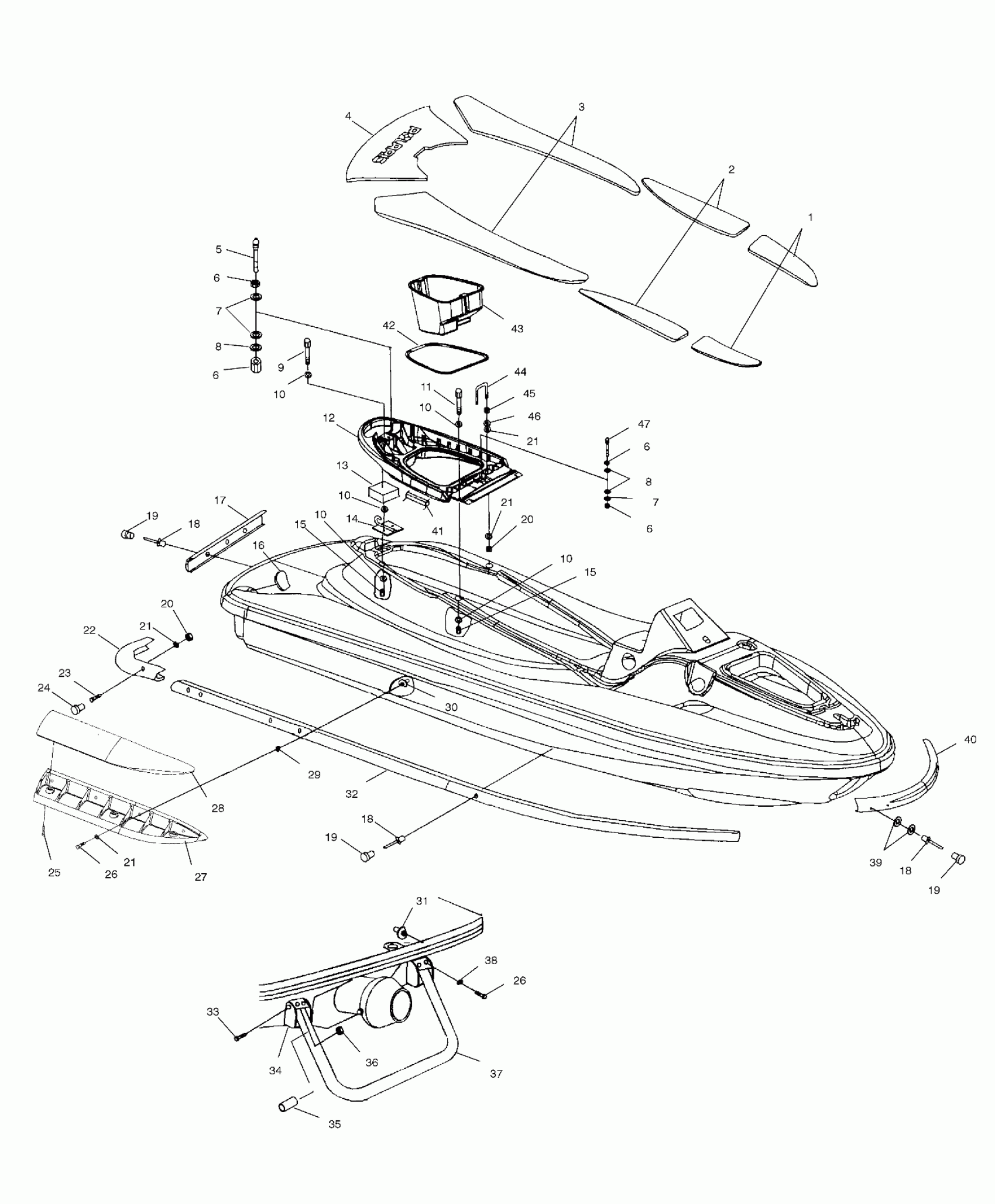

Polaris GENESIS - W015099D HULL and BODY - W015099D (4964866486A005) Diagram

#

Description
Price

1

PAD-FTWLL,GEN,FRT,LH,DP BLUE

5812167-319

$29.67

1

PAD-FTWLL,GEN,FRT,RH,DP BLUE

5812168-319

$29.67

2

PAD-FTWLL,GEN,CTR,LH,DP BLUE

5812169-319

$22.51

2

PAD-FTWLL,GEN,CTR,RH,DP BLUE

5812170-319

$20.94

3

PAD-FTWLL,GEN,RR,LH,DP BLUE

5812171-319

$63.71

3

PAD-FTWLL,GEN,RR,RH,DP BLUE

5812172-319

$63.71

4

PAD-BOARDING,GEN,DEEP BLUE

5812166-319

$87.99

5

PLUNGER,LATCH,SIDE

5020929

$11.90

6

NUT, HEX, S.S.,(10)

7542454

Unavailable

6

NUT, HEX, S.S.,(10)

7542454

Unavailable

6

NUT, HEX, S.S.,(10)

7542454

Unavailable

6

NUT, HEX, S.S.,(10)

7542454

Unavailable

7

WASHER, FLAT(10)

7555846

$5.56

7

WASHER, FLAT(10)

7555846

$5.56

8

WASHER, LOCK, S.S.(10)

7552607

$1.39

8

WASHER, LOCK, S.S.(10)

7552607

$1.39

9

BOLT, S.S,(10)

7516725

Unavailable

10

WASHER,FLAT,S.S.(10)

7555874

$2.38

10

WASHER,FLAT,S.S.(10)

7555874

$2.38

10

WASHER,FLAT,S.S.(10)

7555874

$2.38

10

WASHER,FLAT,S.S.(10)

7555874

$2.38

10

WASHER,FLAT,S.S.(10)

7555874

$2.38

11

SCREW(10)

7517668

$2.06

12

HANDLE-GRAB,W/CROSSMEMBER

5433014-070

Unavailable

13

SEAL,HOOK,TOW

5521513

Unavailable

14

HOOK,TOW

2631982

Unavailable

15

NUT,HEX,(10)

7546804

$1.19

15

NUT,HEX,(10)

7546804

$1.19

16

PAD-HEEL,LH

5433096

$3.49

16

PAD-HEEL,RH

5433097

Unavailable

17

BUMPER-REAR,BLACK

5433086-070

Unavailable

18

RIVET,(50)

7621488

Unavailable

18

RIVET,(50)

7621488

Unavailable

18

RIVET,(50)

7621488

Unavailable

19

PLUG,(10)R.BUMP,BLK

5431994-070

$3.97

19

PLUG,(10)R.BUMP,BLK

5431994-070

$3.97

19

PLUG,(10)R.BUMP,BLK

5431994-070

$3.97

20

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

20

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

21

WASHER, FLAT, S.S.(10)

7555839

Unavailable

21

WASHER, FLAT, S.S.(10)

7555839

Unavailable

21

WASHER, FLAT, S.S.(10)

7555839

Unavailable

21

WASHER, FLAT, S.S.(10)

7555839

Unavailable

22

BUMPER-CORNER,LH,BLACK

5433087-070

$49.59

22

BUMPER-CORNER,RH,BLACK

5433088-070

Unavailable

23

Screw

7517671

$1.97

24

PLUG,BUMPER,BLACK

5433085-070

Unavailable

25

SCREW(10)

7512065

Unavailable

26

SCREW,(10)

7515198

Unavailable

26

SCREW,(10)

7515198

Unavailable

27

SPONSON-17.77,LH,BLACK

5433441-070

Unavailable

27

SPONSON-17.77,RH,BLACK

5433442-070

Unavailable

28

COVER-SPONSON,LH,BLACK

5433486-070

Unavailable

28

COVER-SPONSON,RH,BLACK

5433487-070

Unavailable

29

WASHER,(10)

5811440

$2.06

30

INSERT,1/4-20X1.0

5132471

$11.11

31

INSERT-1/4-20X1.0 "D"

5132225

$20.94

32

RAIL,RUB,RH,LH,BLACK

5521481-070

Unavailable

33

SCREW, SS.(10)

7517321

Unavailable

34

BRKT,MOUNT,LADDER

5244040

$96.08

35

TUBING,SPLIT,1.375

5521549

$2.46

36

NUT,ACORN(10)

7547137

$1.10

37

LADDER,BOARDING

5630963

Unavailable

38

WASHER, LOCK, S.S.(10)

7555838

Unavailable

39

BURR,RIVET [No Longer Available]

7556029

$0.60

40

BUMPER-FRONT,BLACK

5411516-070

Unavailable

41

SEAL,HANDLE,GRAB

5521515

Unavailable

42

GASKET-BUCKET,REAR

5411606

$3.17

43

BUCKET-STORAGE,SEAT REAR

5433019

$20.48

44

BOLT,U,SEAT,REAR

5243239

Unavailable

45

NUT, 6 MM.,S.S.(10)

7546705

$4.76

46

WASHER,RUBBER(10)

7555870

$0.40

47

PLUNGER,LATCH

5020753

Unavailable
