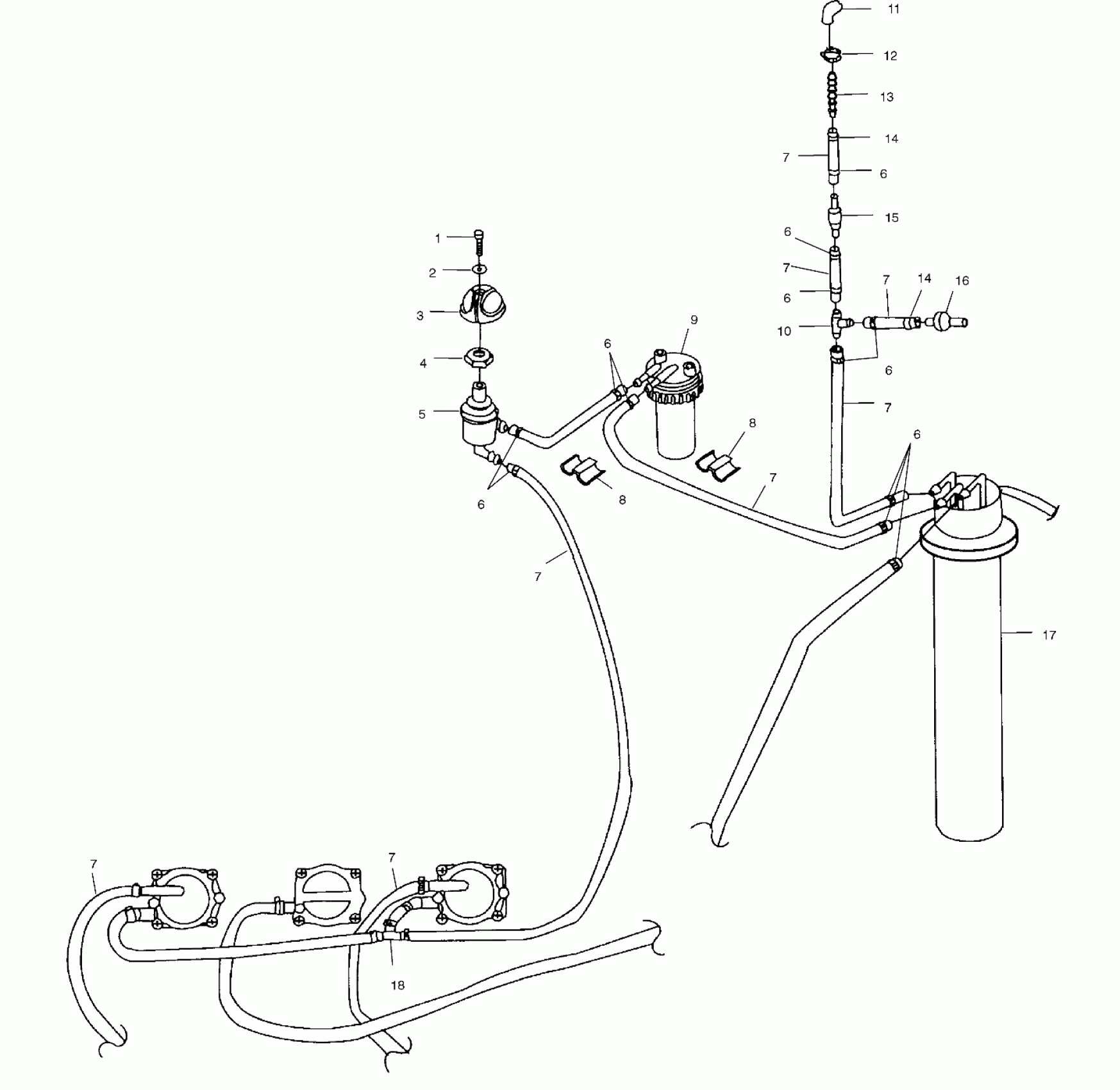

Polaris GENESIS - W015099D FUEL SYSTEM - W015099D (4964866486A011) Diagram

#

Description
Price

1

SCREW, S.S.(10)

7516302

$3.99

2

WASHER, FLAT, S.S.(10)

7555840

$3.33

3

KNOB,FUELVALVE,BLK.

5432836-070

$7.38

4

NUT, FUEL VALVE

5431451

Unavailable

5

VALVE,ON/OFF

7052159

$48.56

6

CLAMP, HOSE, S.S.(10)

7080476

$6.35

6

CLAMP, HOSE, S.S.(10)

7080476

$6.35

6

CLAMP, HOSE, S.S.(10)

7080476

$6.35

6

CLAMP, HOSE, S.S.(10)

7080476

$6.35

6

CLAMP, HOSE, S.S.(10)

7080476

$6.35

6

CLAMP, HOSE, S.S.(10)

7080476

$6.35

6

CLAMP, HOSE, S.S.(10)

7080476

$6.35

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

T-CLIP(10)

7080482

$6.35

8

T-CLIP(10)

7080482

$6.35

9

Separator, Fuel Water (See Fuel/Water Separator Pg. C9, Ref. 5)

----

Unavailable

10

FITTING,TEE

7052111

$1.75

11

Grommet, Vent

5410682

Unavailable

12

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

13

Connector

7052078

Unavailable

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

VALVE,CHECK,RELIEF

7051015

Unavailable

16

VALVE,VACUUM CHECK

7052118

Unavailable

17

Asm., Fuel Sender (See Fuel Tank Pg. A10, Ref. 20)

----

Unavailable

18

FITTING, TEE

7052075

$9.52
