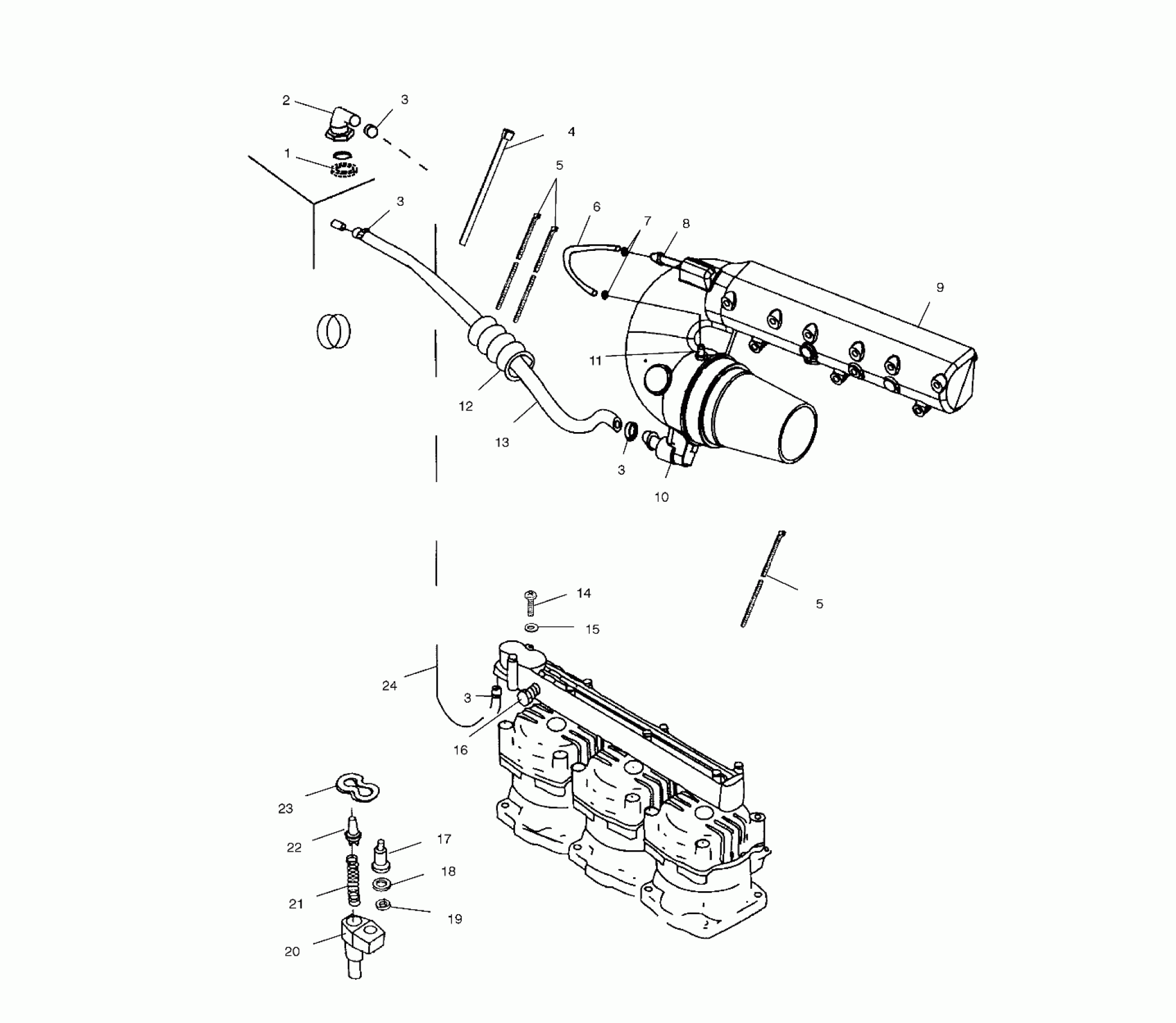

Polaris GENESIS - W015099D COOLING SYSTEM - W015099D (4964866486B008) Diagram

#

Description
Price

1

GASKET-1.57ODX1.02IDX.10,BUNA

5812237

Unavailable

2

FITTING-THRU HULL,90 DEG,WHT

5434149-133

$17.30

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

4

STRAP, CABLE(10)

7080598

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

HOSE,STINGER,12.50

5411689

$23.02

7

CLAMP, HOSE, S.S.(10)

7080476

$6.35

8

Fitting, Inlet, Water (See Exhaust System Pg. B6, Ref. 3)

----

Unavailable

9

Asm., Manifold, Exhaust (See Exhaust System Pg. B6, Ref. 34)

----

Unavailable

10

Fitting, Injector, Exhaust (See Exhaust System Pg. B6, Ref. 2)

----

Unavailable

11

Fitting, Screen, Exhaust (See Exhaust System Pg. B6, Ref. 1)

----

Unavailable

12

CONDUIT,FLEX,1.250ID Substituted by 5521287-132

5521287-117

Unavailable

13

HOSE,BILGE

5411542

Unavailable

14

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

15

WASHER(10)

7555836

$3.99

16

PLUG,PIPE(10)

7051527

$6.59

17

THERMOSTAT, (143 F.)

7051008

Unavailable

18

GASKET-THERMOSTAT,60D

5412014

Unavailable

19

WASHER-7/8X11/8X1/8,AL,ANODIZE

7556174

Unavailable

20

COVER-THERMOSTAT,PWC,HF

5631136

Unavailable

21

Spring, Compression

7041310

$1.83

22

VALVE-POP OFF,PWC,HF

5433823

$4.92

23

SEAL,O-RING/THERMO/FITTING

5410860

Unavailable

24

HOSE-WATER OUT,3/4X25.5

5412116

Unavailable
