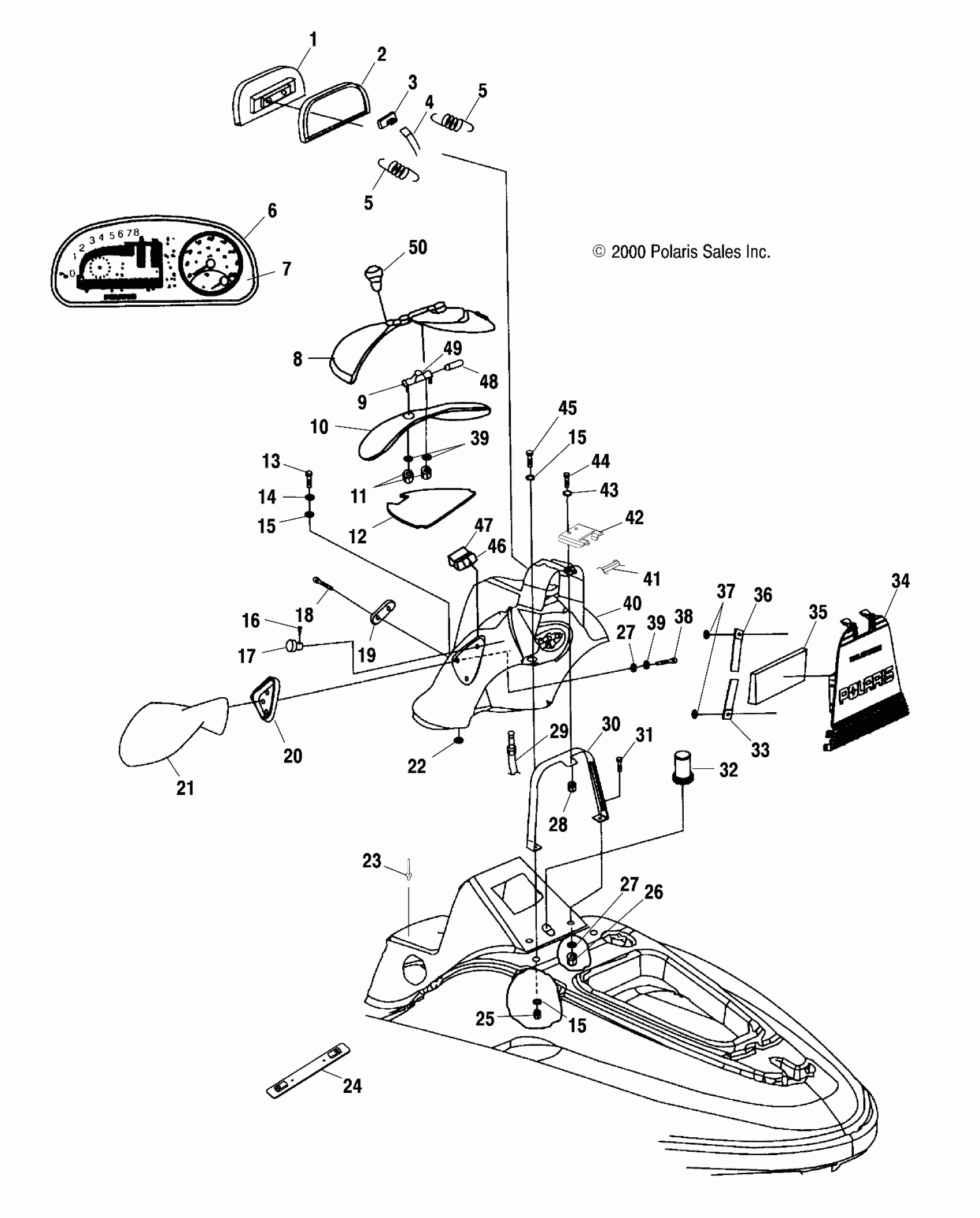

Polaris GENESIS - W005099D SHROUD - W005099D (4955775577A005) Diagram

#

Description
Price

1

GAUGE,MFD,ANALOG/DIGITAL

3280292

$694.99

2

GASKET-MFI

5411738

$5.16

3

CONNECTOR-DEUTCHE,4PIN W/PLUGS

4010281

$17.30

4

PITOT LINE,90DEG FORMED,235CM. Substituted by 8450070-277

8450070-235

$24.25

5

SPRING,MOUNTING,MFI

7041931

$1.83

5

SPRING,MOUNTING,MFI

7041931

$1.83

6

MFI,BUTTON REPLACEMENT,KIT

2201593

$25.30

7

BEZEL-MFI,OVERLAY

3280342

$23.81

8

LID,CONSOLE,AERO BLUE MET Substituted by 2201999

5433709-305

Unavailable

9

SPRING-TORSION,CONSOLE,SS Substituted by 7042007

7041754

Unavailable

10

SEAL,LID,CONSOLE

5521478

$9.05

11

NUT, 6 MM.,S.S.(10)

7546705

$4.76

12

PAD,CONSOLE

5811783

Unavailable

13

SCREW(10)

7517668

$2.06

14

WASHER,LOCK,SS.

7556055

Unavailable

15

WASHER, FLAT, S.S.(10)

7555831

Unavailable

15

WASHER, FLAT, S.S.(10)

7555831

Unavailable

15

WASHER, FLAT, S.S.(10)

7555831

Unavailable

16

Screw

2080005

$0.69

17

KNOB,CHOKE

2080004

$9.05

18

SCREW,SS.

7516609

Unavailable

19

PLATE,HOOK,CONSOLE

5211865

Unavailable

20

GASKET-MIRROR,LH

5411557

$4.92

20

GASKET-MIRROR,RH

5411558

$4.92

21

MIRROR,LH,BLACK,ASM.

2631972-070

$119.05

21

MIRROR,RH,BLACK,ASM.

2631973-070

$106.35

22

WASHER, S.S.(10)

7555834

Unavailable

23

RIVET-POP (50)

7661042

$1.11

24

MOUNT,SHROUD

1820725

$14.76

25

NUT,HEX,(10)

7546804

$1.19

26

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

27

WASHER, FLAT, S.S.(10)

7555839

Unavailable

27

WASHER, FLAT, S.S.(10)

7555839

Unavailable

28

NUT, HEX, S.S.(10)

7541931

$5.99

29

CABLE,CHOKE Substituted by 7081023

7080788

$77.78

30

BRKT,SUPPORT,SHROUD

5244673

$50.05

31

BOLT(10)

7516717

$3.33

32

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

33

STRAP-TOOL KIT,LOWER

2690151

Unavailable

34

COVER-WIRE,SHROUD,BLK

5433210-070

$10.90

35

Kit, Tool (See Tool Kit Pg. C12)

----

Unavailable

36

STRAP-TOOL KIT,UPPER

2690150

Unavailable

37

RING-RETAINING,.25 STUD

7710517

$1.59

38

SCREW, S.S.(10)

7516805

$0.71

39

WASHER, LOCK(10)

7552613

Unavailable

39

WASHER, LOCK(10)

7552613

Unavailable

40

SHRD,STRNG,W/CH,NR,AER BLU M Substituted by 2202004

5433699-305

Unavailable

41

BUMPER,DOOR/SHROUD

5812076

$10.81

42

PLATE,LATCH,RECEIVER

5244670

Unavailable

43

WASHER, FLAT, S.S.(10)

7555837

$1.59

44

SCR,(10)#10-32X3/4

7517818

Unavailable

45

BOLT, SS.(10)

7512045

$4.99

46

GASKET,HOOK,CONSOLE

5811552

$1.43

47

HOOK,CONSOLE,LATCH 1/4 TURN

5433266

Unavailable

48

PIN-HINGE,CONSOLE

5333698

Unavailable

49

HINGE-CONSOLE,3/16 PIN

5433384

Unavailable

50

LATCH,ASM,CONSOLE1/4 TURN

2632234

$36.83
