SEAT - W005099D (4955775577A014)

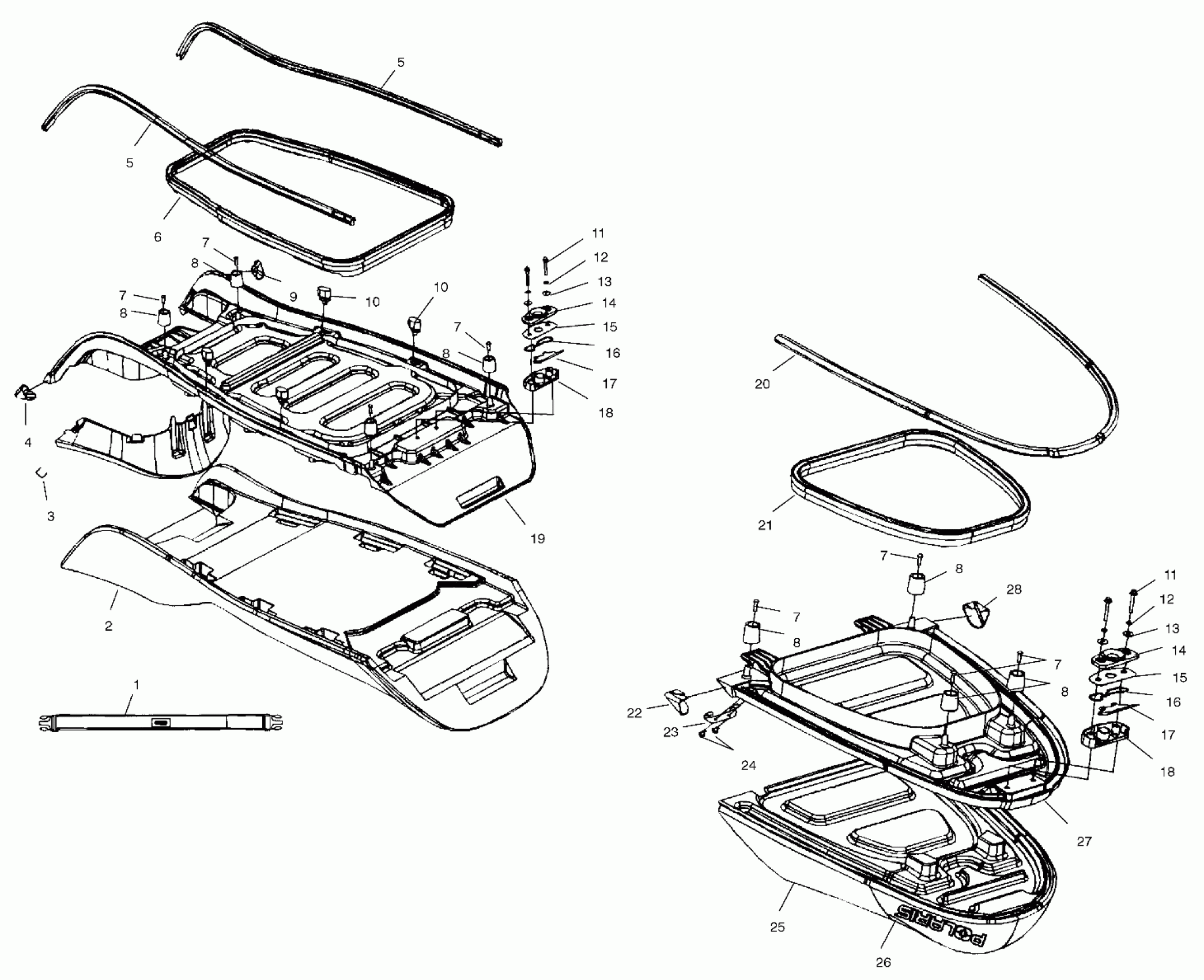

Polaris GENESIS - W005099D SEAT - W005099D (4955775577A014) Diagram
#
-
KIT,DECAL APPLIC.,VINYL (For Seat Decals)
2200891
Unavailable
1
STRAP,W/CLIPS,EMBRDERD
2682566
Unavailable
2
COVER-SEAT,FRONT,RAZOR BLUE
2682426-304
Unavailable
3
STAPLE-1/2 X 1/4-SS [No Longer Available]
9810357
Unavailable
4
SHIELD-SEAT,FRONT,RH,P304
5433113-304
Unavailable
5
TRIM,SEAT,GENESIS FNT
5521520
Unavailable
5
TRIM,SEAT,GENESIS FNT
5521520
Unavailable
6
SEAL-SEAT,FRONT
5521483
Unavailable
7
SCREW1/4-14X1/2PH(10)
7517732
Unavailable
7
SCREW1/4-14X1/2PH(10)
7517732
Unavailable
7
SCREW1/4-14X1/2PH(10)
7517732
Unavailable
7
SCREW1/4-14X1/2PH(10)
7517732
Unavailable
7
SCREW1/4-14X1/2PH(10)
7517732
Unavailable
7
SCREW1/4-14X1/2PH(10)
7517732
Unavailable
8
BUMPER-SEAT
5521533
Unavailable
8
BUMPER-SEAT
5521533
Unavailable
8
BUMPER-SEAT
5521533
Unavailable
8
BUMPER-SEAT
5521533
Unavailable
8
BUMPER-SEAT
5521533
Unavailable
8
BUMPER-SEAT
5521533
Unavailable
9
SHIELD-SEAT,FRONT,LH,P304
5433112-304
Unavailable
10
BUMPER-SEAT
5521490
Unavailable
10
BUMPER-SEAT
5521490
Unavailable
11
BOLT(10)
7516806
Unavailable
11
BOLT(10)
7516806
Unavailable
12
WASHER, LOCK, S.S.(10)
7555838
Unavailable
12
WASHER, LOCK, S.S.(10)
7555838
Unavailable
13
WASHER, FLAT, S.S.(10)
7555839
Unavailable
13
WASHER, FLAT, S.S.(10)
7555839
Unavailable
14
PLATE,LATCH,BOT.SEAT BASE
5431357
Unavailable
14
PLATE,LATCH,BOT.SEAT BASE
5431357
Unavailable
15
PLATE,SEATBASE LATCH
5211314
Unavailable
15
PLATE,SEATBASE LATCH
5211314
Unavailable
16
SPRING,SEATBASE LATCH
7042036
Unavailable
16
SPRING,SEATBASE LATCH
7042036
Unavailable
17
HANDLE, SEAT
5431358
Unavailable
17
HANDLE, SEAT
5431358
Unavailable
18
PLATE,TOP,SEATBASE LATCH
5431359
Unavailable
18
PLATE,TOP,SEATBASE LATCH
5431359
Unavailable
19
SEAT,GEN.FRNT,RAZOR BLUE (Incl. 2-18)
2682639-304
Unavailable
20
TRIM,SEAT,GENESIS REAR
5521522
Unavailable
21
SEAL-SEAT,REAR
5521484
Unavailable
22
SHIELD-SEAT,REAR,RH,RAZOR BLUE
5433115-304
Unavailable
23
CAP,SEAT,END,RAZOR BLUE
5433376-304
Unavailable
24
CLIP,XMAS TREE
5432966
$1.49
25
COVER-SEAT,REAR,RAZOR BLUE
2682427-304
Unavailable
26
Decal - "POLARIS", Seat (See Decals Pg. A11, Ref. 3)
-------
Unavailable
27
SEAT,ASM,REAR,RAZOR BLUE (Incl. 7,8,11-18,20-26,28)
2682415-304
Unavailable
28
SHIELD-SEAT,REAR,LH,RAZOR BLUE
5433114-304
Unavailable
