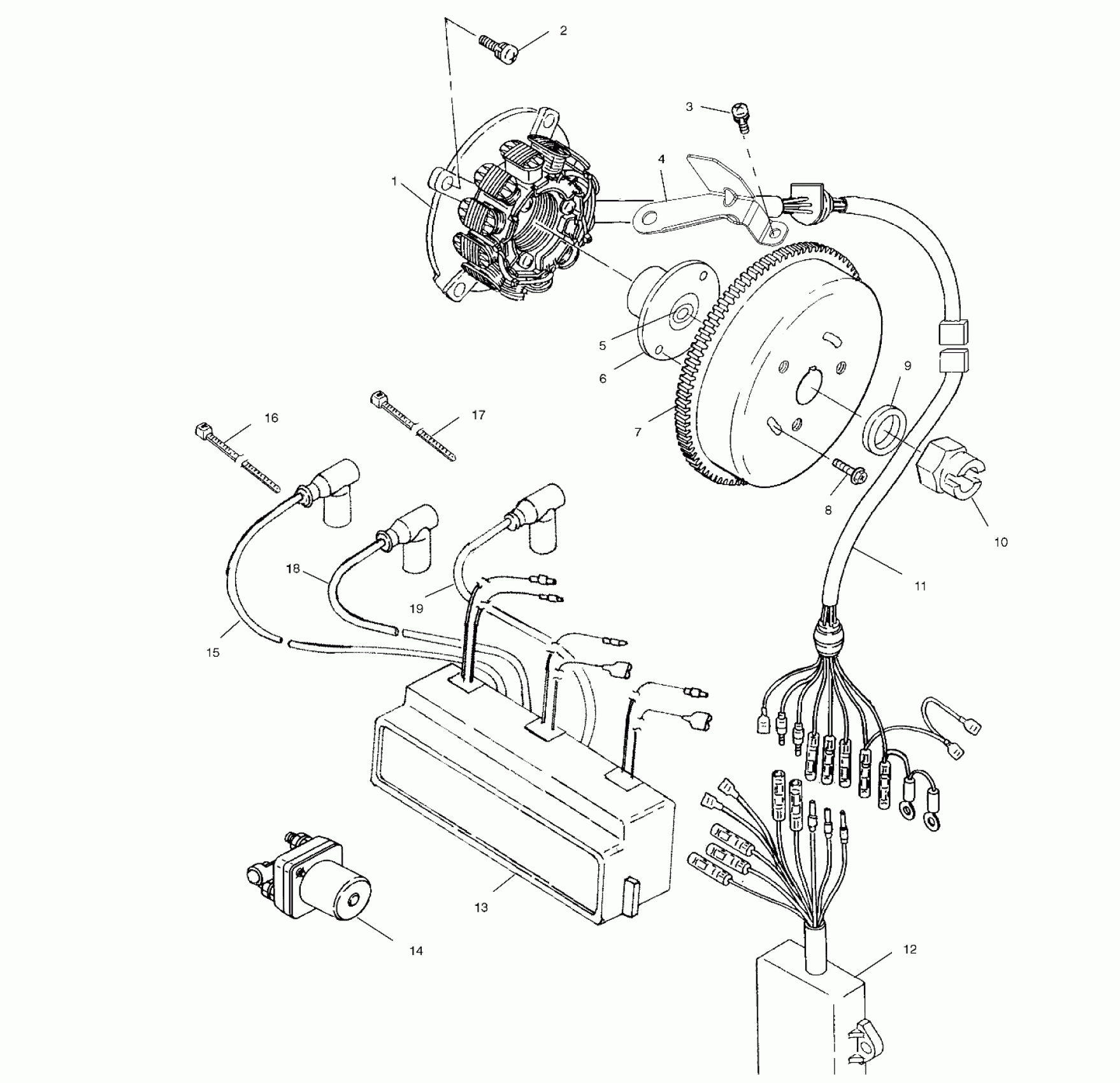

Polaris GENESIS - W005099D MAGNETO - W005099I (4955775577C009) Diagram

#

Description
Price

1

STATOR ASM.3CYL PWC GEN-3 PVL

4010170

Unavailable

2

SCR-M6X1.0X30,HX/SOC/CP-ZPC

7517714

$10.39

3

SCREW,(10)

7517431

$5.59

4

CLAMP-STATOR WIRES

5243231

Unavailable

5

O-Ring

5411320

Unavailable

6

Holder, Magnet

5432282

Unavailable

7

FLYWHEEL ASM.PWC GEN-3 PVL (Incl. 5,6,8)

4010189

Unavailable

8

KIT,TIMING SCREWS,PVL(PWC)

2201228

Unavailable

9

WASHER(10)

7555907

$5.59

10

Nut

7546909

Unavailable

11

HARNESS-9 WIRE STATOR,3CYL Substituted by 2460875 (See Footnote) (See Electrical Box Pg. B2, Ref. 30)

2460717

Unavailable

12

CONTROLLER-IGN,3-CYL Substituted by 4010543

4010379

Unavailable

13

COIL,IGN,PVL,3RD GEN,3CYL

4010342

Unavailable

14

SOLENOID-STARTER EXTERNAL MUNT Substituted by 4010401

4010228

Unavailable

15

SPARK PLUG WIRE,PVL 71CM

4010173-71

Unavailable

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

18

SPARK PLUG WIRE,PVL 56CM Substituted by 4010173-71

4010173-56

Unavailable

19

SPARK PLUG WIRE,PVL 42CM Substituted by 4010173-71

4010173-42

Unavailable
