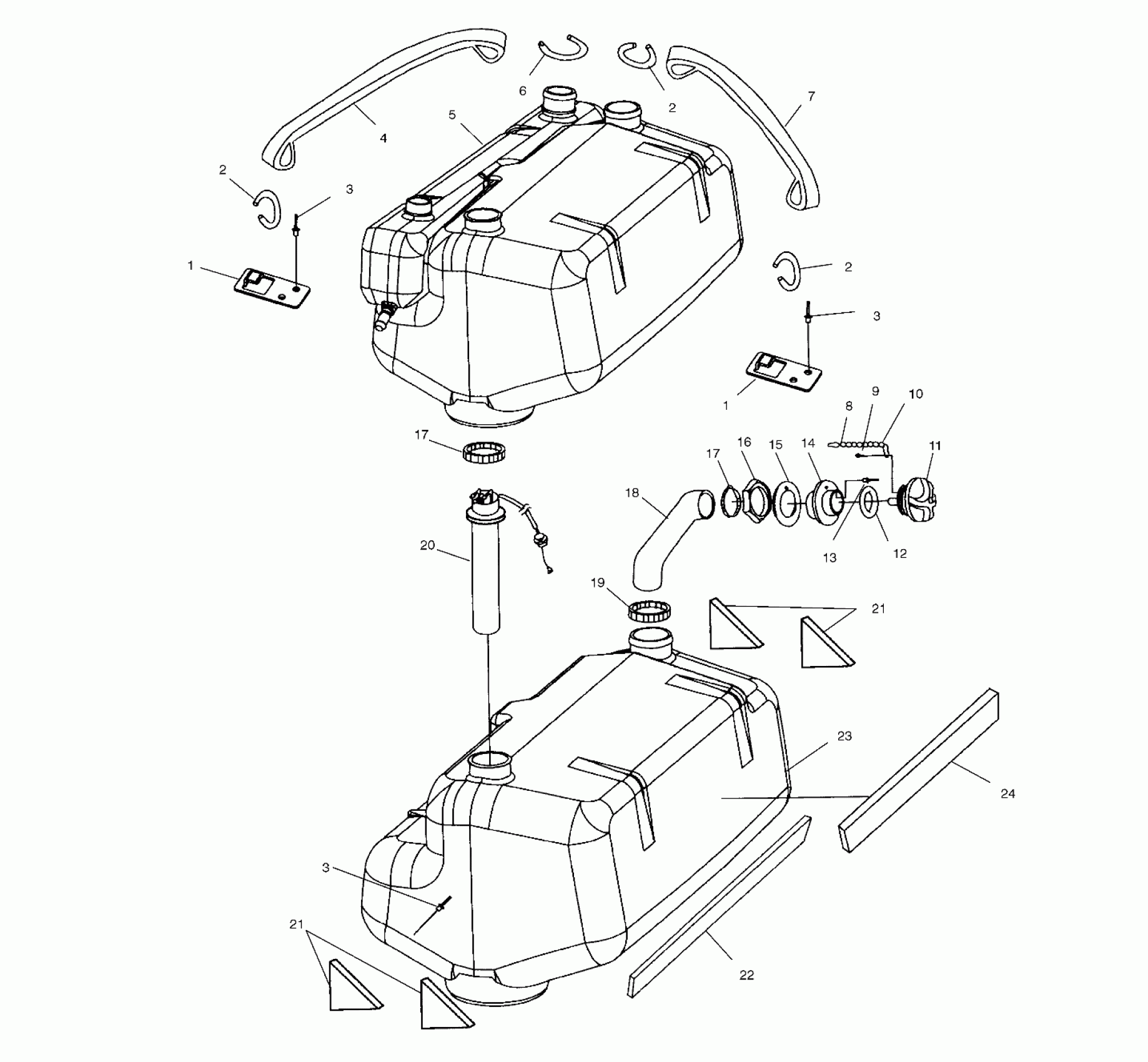

Polaris GENESIS - W005099D FUEL TANK - W005099D (4955775577A012) Diagram

#

Description
Price

1

CLIP,STRAP

5240134

Unavailable

1

CLIP,STRAP

5240134

Unavailable

2

HOOK,STRAP,NARROW

5243775

$4.92

2

HOOK,STRAP,NARROW

5243775

$4.92

2

HOOK,STRAP,NARROW

5243775

$4.92

3

RIVET(50)

7621479

$1.98

3

RIVET(50)

7621479

$1.98

3

RIVET(50)

7621479

$1.98

4

STRAP-BATTERY

5430621

Unavailable

5

Tank, Oil (See Oil Tank Pg. B1, Ref. 15)

----

Unavailable

6

HOOK,STRAP,180 DEG RETURN

5243776

$2.46

7

STRAP, RUBBER

5410608

$9.70

8

Coupling

7080442

Unavailable

9

SCREW(10)

7511873

Unavailable

10

CHAIN,BEAD,FUELCAP RETAIN.

7080710

Unavailable

11

CAP,FUEL,RATCHET,ASM. Substituted by 2201745

2520177

Unavailable

12

SEAL,FUEL CAP

5411305

Unavailable

13

RIVET(50)

7621229

Unavailable

14

INLET,FUEL

5433553

$13.89

15

SEAL,FUEL INLET

5811492

$20.59

16

NUT,INLET,FUEL

5433621

$17.44

17

CLAMP,HOSE,SS.

7080766

$2.06

17

CLAMP,HOSE,SS.

7080766

$2.06

18

HOSE-FILL,FUEL

5411546

$61.90

19

CLAMP, HOSE, S.S.(10)

7080451

$7.14

20

SENDER,PICKUP,ASM.17 GAL

2410124

Unavailable

21

PAD,REAR,FUELTANK

5811999

$3.97

21

PAD,REAR,FUELTANK

5811999

$3.97

22

PAD,TANK,FUAL Substituted by 5812152

5811790

$15.43

23

TANK,FUEL,16 GAL

5433018

Unavailable

24

PAD,TANK,FUEL(SIDE)

5811901

Unavailable
