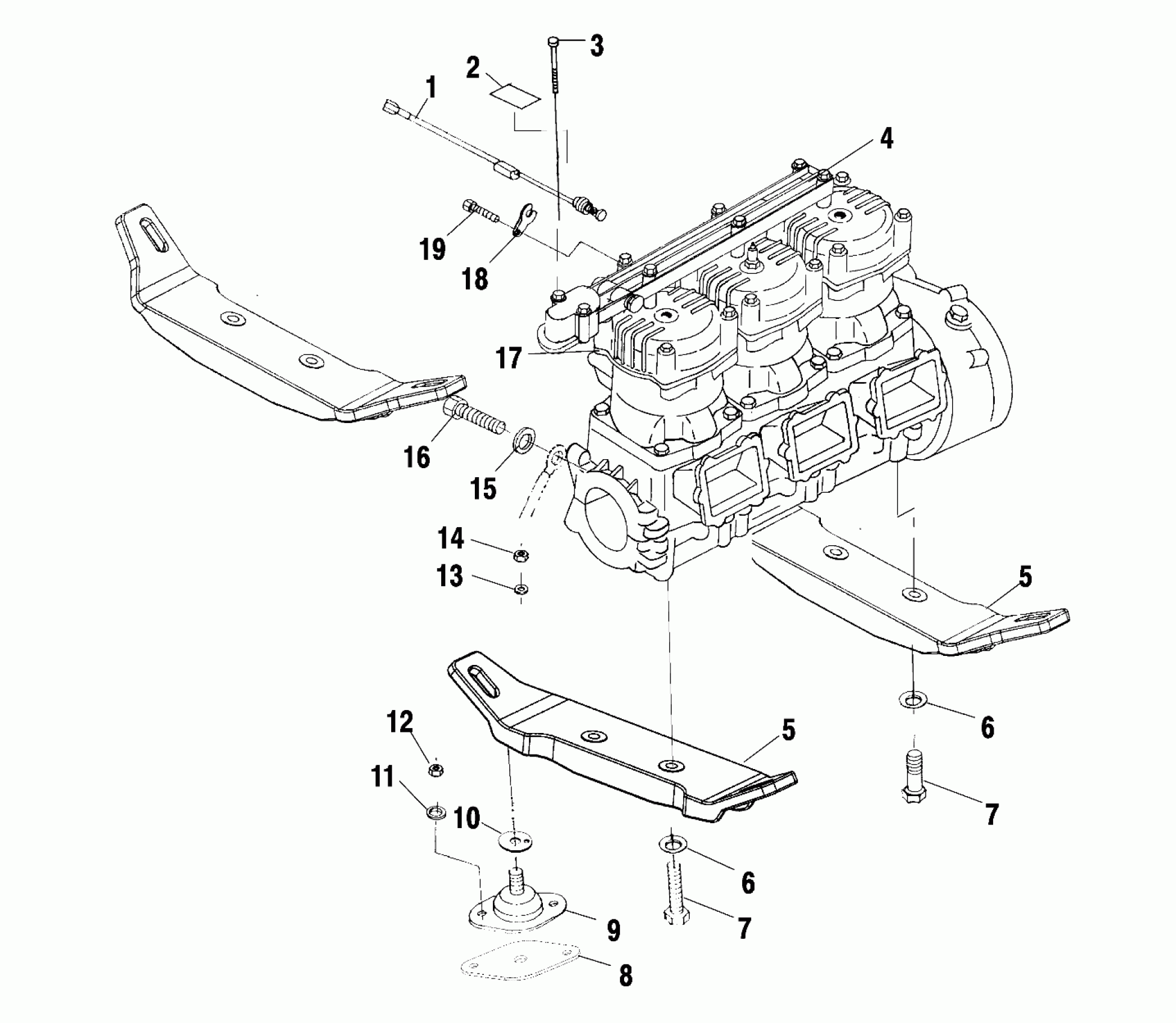

Polaris GENESIS - W005099D ENGINE MOUNTING - W005099D (4955775577B004) Diagram

#

Description
Price

1

SWITCH,TEMP,W/CONN 237F

2410196

$65.87

2

DECAL,SPARKPLUG REC.

7077026

$2.94

3

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

4

Decal - Warning (See Cylinder and Manifold Pg. C4, Ref. 2)

----

Unavailable

5

PLATE,F.MOUNT Substituted by 5631128

5630585

$102.38

5

PLATE,F.MOUNT Substituted by 5631128

5630585

$102.38

6

WASHER,LOCK,S.S.

7552609

$1.75

6

WASHER,LOCK,S.S.

7552609

$1.75

7

SCREW, SS.

7517330

Unavailable

7

SCREW, SS.

7517330

Unavailable

8

PLATE,REPAIR,GEN.FRT MNT

5244508

Unavailable

9

MOUNT-ENGINE,PWC

3021102

$65.87

10

SHIM,ENG.MT.(PWC)

5211727

Unavailable

11

WASHER, LOCK, S.S.(10)

7552610

Unavailable

12

NUT

7542334

$1.19

13

WASHER, FLAT, S.S.(10)

7555848

Unavailable

14

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

15

WASHER,LOCK,SS.

7556055

Unavailable

16

BOLT,SS.

7517497

$3.97

17

SHORTBLOCK,W120-TCSP-02A The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

2201704

Unavailable

18

CLIP,RETAIN,TEMP.SW.

5240876

$4.99

19

BOLT,(1)

7516603

$10.32
