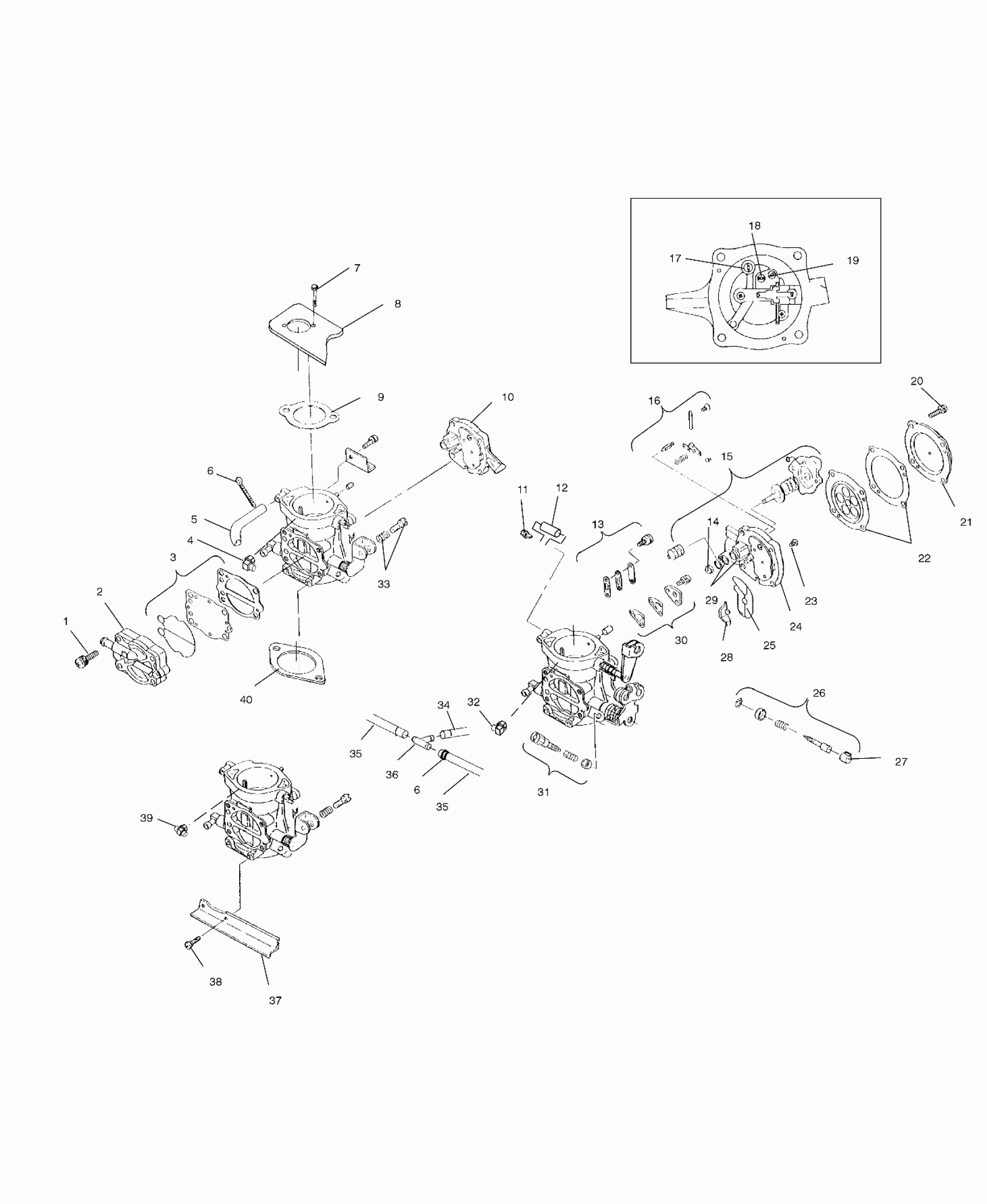

Polaris GENESIS - W005099D CARBURETOR - W005099I (4955775577C007) Diagram

#

Description
Price

-

KIT,CARB.REBUILD,PWC (Incl. 9,16,22,40)

2200910

Unavailable

-

CARB,3CYL PWC,KEIHIN G2

1253322

$844.99

1

SCREW, FUELPUMP

3050136

Unavailable

2

KIT,FUELPUMP BODY(KEIHIN)

2200687

Unavailable

3

KIT,GASKET(FUELPUMP)

2200686

Unavailable

4

NOZZLE,PTO,KEIHIN

3050254

Unavailable

5

Hose, Fuel

3050143

Unavailable

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

SCR-M6X1.00X145-HX/FL-SS

7516816

$29.99

8

BASE,SILENCER,INTAKE,TRIPLE

5630546

$49.75

9

GASKET,CARB.,UPPER

5830062

Unavailable

10

BLOCK-JET,KEIHIN Substituted by 3050205 (Rear & Center)

3050258

Unavailable

11

JOINT,CONNECTING

3050156

$26.19

12

TUBE,RUBBER

3050157

Unavailable

13

KIT,CHECKVALVE,MID-RANGE,KHN (1 Per Carb)

2200685

Unavailable

14

SCREEN,FUELSTRAINER

3050144

Unavailable

15

PUMP,ACCEL.KIT (1 Per Carb)

2201309

Unavailable

16

KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)

2200733

Unavailable

17

JET-MAIN,140 KEIHIN (Per Carb) Center

3050186

$8.98

17

JET-MAIN,135 KEIHIN (Per Carb) Mag

3050184

$8.98

17

JET-MAIN,145 KEIHIN (Per Carb) PTO

3050188

$7.01

18

JET-PILOT,68 KEIHIN (1 Per Carb)

3050129

$7.24

19

JET-PILOT, 42 KEIHIN (1 Per Carb)

3050119

$8.11

20

SCREW,JET BLOCK COVER

3050135

Unavailable

21

COVER,JET BLOCK

3050139

$45.24

22

KIT,DIAPHRAGM-JET BLOCK (1 Per Carb)

2200730

Unavailable

23

SCREW, JET BLOCK (1 Per Carb)

3050137

$3.98

24

BLOCK-JET,KEIHIN Substituted by 3050204 (Front)

3050259

Unavailable

25

O-Ring, Jet Block

3050147

Unavailable

26

KIT,IDLESCREW,(KEIHIN) (1 Per Carb)

2200689

Unavailable

27

Cap, Limiter

3050140

Unavailable

28

Collar

3050138

Unavailable

29

O-RING,(VALVE SEAT)

3050148

Unavailable

30

KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)

2200688

$34.21

31

KIT,IDLESTOP SCREW

2200731

$27.92

32

NOZZLE,MAG,KEIHIN

3050252

Unavailable

33

KIT,SYNCH.SCREW

2200734

Unavailable

34

TUBE,RUBBER Substituted by 3050142

3050261

Unavailable

35

HOSE,FUEL,(ACCEL.PUMP)

3050142

Unavailable

35

HOSE,FUEL,(ACCEL.PUMP)

3050142

Unavailable

36

FITTING, T

3050141

$9.52

37

PLATE,CON,KEIHIN

3050164

$23.65

38

SCREW,CONNECT.PLATE

3050159

Unavailable

39

NOZZLE,CTR,KEIHIN

3050253

Unavailable

40

GASKET,CARB.

5830043

Unavailable
