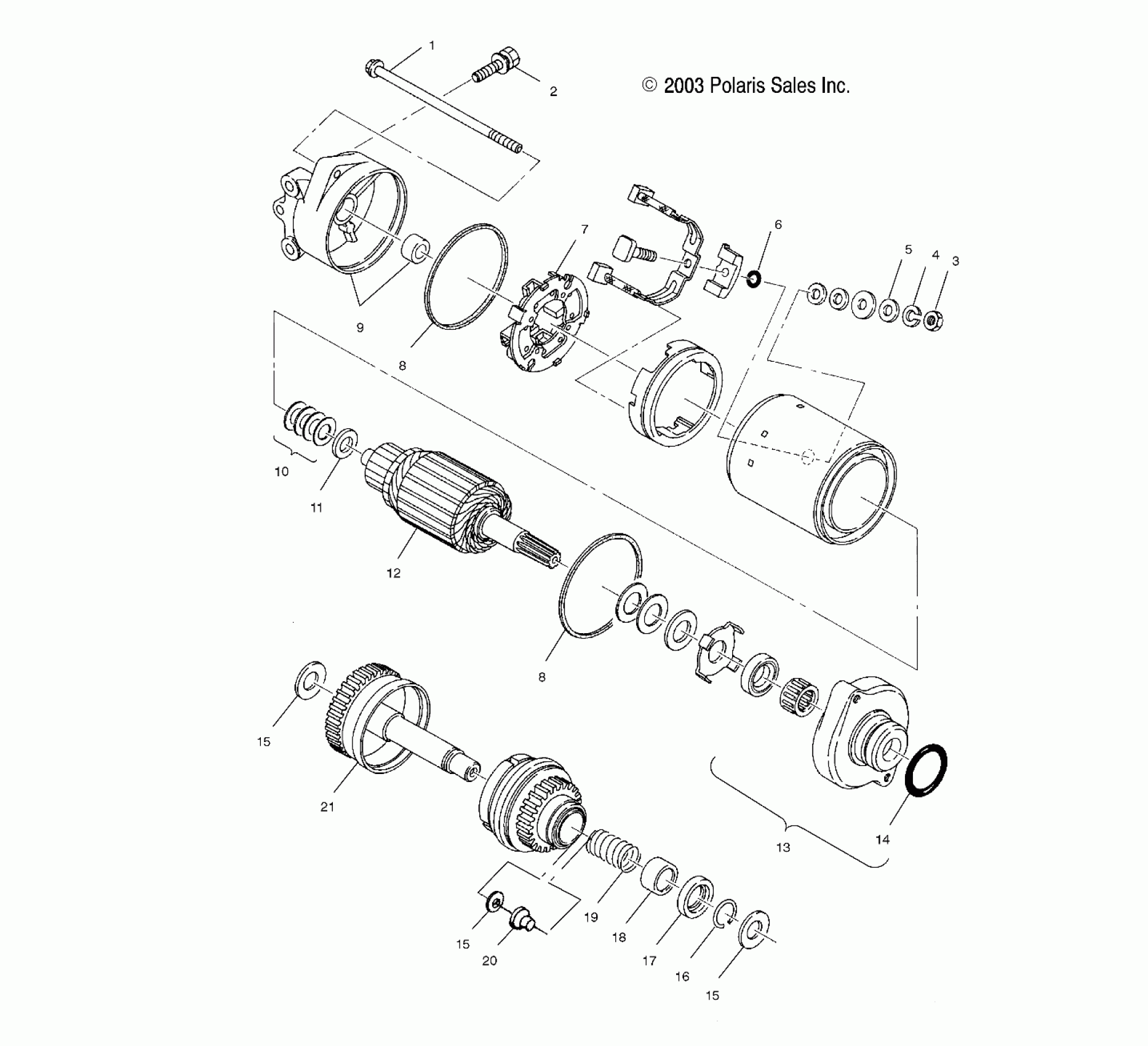

Polaris GENESIS I - W045098CA STARTING MOTOR - W045098CA/IA (4990459045C06) Diagram

#

Description
Price

-

Asm., Bendix [Incl. 15-21](If built after 10/15/03)

4010418

$292.59

-

Asm., Bendix [Incl. 15-21](If built before 10/15/03)

4060119

$292.59

-

Brush [Incl. 4-7]

3240115

Unavailable

-

Starter, Long Stud [Incl. Brush,1,3-14]

4010675

$285.71

1

Bolt, Through

3240113

$8.73

2

Screw

7516807

Unavailable

3

Nut

3240116

Unavailable

4

Washer, Spring

3240117

Unavailable

5

Washer

3240119

Unavailable

6

O-RING

3084408

Unavailable

7

Spring, Brush

3240111

$1.38

8

RING, RUBBER

3084405

Unavailable

8

RING, RUBBER

3084405

Unavailable

9

Asm., Rear Bracket

3240207

$53.17

10

Washer, Thrust

3240118

Unavailable

11

Washer, Thrust

3240112

$0.32

12

Asm., Armature

3240205

$139.99

13

Asm., Front Bracket

3240206

Unavailable

14

O-Ring

3240114

$6.99

15

Washer, Thrust

7555908

$3.17

15

Washer, Thrust

7555908

$3.17

15

Washer, Thrust

7555908

$3.17

16

Ring, Snap

3240126

$0.32

17

Stopper

3240125

Unavailable

18

Cover

3240123

$3.81

19

Spring

7041457

Unavailable

20

Bushing, Flange

3574214

$5.00

21

Asm., Gear [Incl. 15-20]

3240120

$292.59
