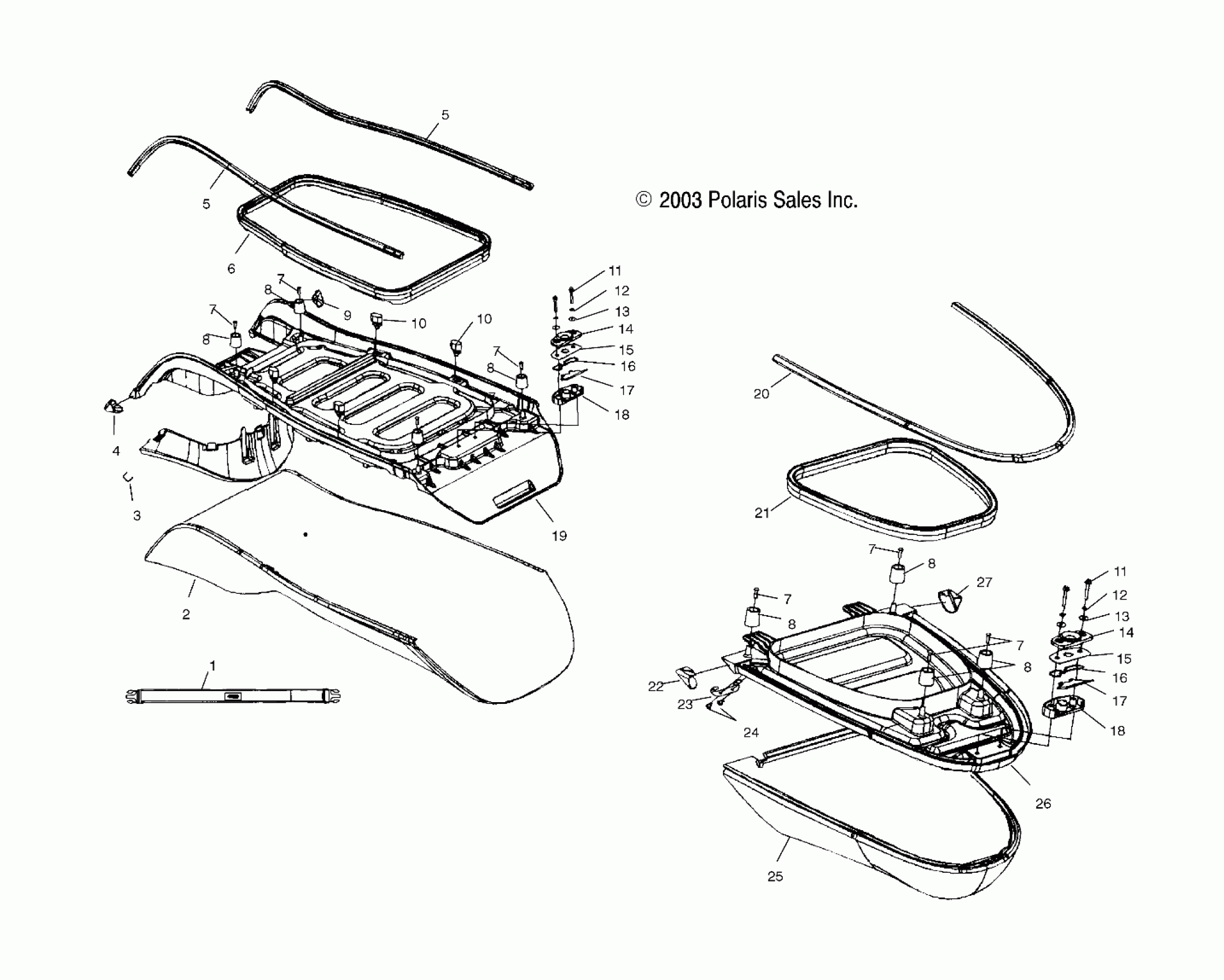

Polaris GENESIS I - W045098CA SEAT - W045098CA/IA (4990459045A12) Diagram

#

Description
Price

1

Asm., Strap w/Clips

2682566-070

Unavailable

2

Cover, Seat, Front

2682686-320

$180.16

3

Staple

9810357

Unavailable

4

Shield, Seat, Front, RH

5434567-320

Unavailable

5

Trim, Seat, Front

5521520

$23.08

5

Trim, Seat, Front

5521520

$23.08

6

SEAL, SEAT, FRONT

----

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

9

Shield, Seat, Front, LH

5434566-320

Unavailable

10

Bumper, Seat, Oval

5521490

Unavailable

10

Bumper, Seat, Oval

5521490

Unavailable

11

Screw

7516806

Unavailable

11

Screw

7516806

Unavailable

12

Washer, Lock

7555838

Unavailable

12

Washer, Lock

7555838

Unavailable

13

Washer, Flat

7555839

Unavailable

13

Washer, Flat

7555839

Unavailable

14

Plate, Bottom, Seat Base Latch

5431357

$5.71

14

Plate, Bottom, Seat Base Latch

5431357

$5.71

15

Plate, Seat Base Latch

5211314

$4.92

15

Plate, Seat Base Latch

5211314

$4.92

16

Spring, Seat Base Latch

7042036

Unavailable

16

Spring, Seat Base Latch

7042036

Unavailable

17

Handle, Seat Base Latch

5431358

Unavailable

17

Handle, Seat Base Latch

5431358

Unavailable

18

Plate, Top, Seat Base Latch

5431359

Unavailable

18

Plate, Top, Seat Base Latch

5431359

Unavailable

19

Asm., Seat, Front [Incl. 2-18]

2683088-320

Unavailable

20

Trim, Seat, Rear

5521522

$25.40

21

SEAL, SEAT, REAR

----

Unavailable

22

Shield, Seat, Rear, RH

5434569-320

$6.24

23

Cap, End, Seat

5433376-070

$24.60

24

CLIP, XMAS TREE

5432966

$1.19

25

Cover, Seat, Rear

2682427-320

$147.62

26

Asm., Seat, Rear [Incl. 7,8,11-18,20-25,27]

2682928-320

Unavailable

27

Shield, Seat, Rear, LH

5434568-320

$6.24
