- GENESIS I - W045098CA
PROPULSION - W045098CA/IA (4990459045B03)

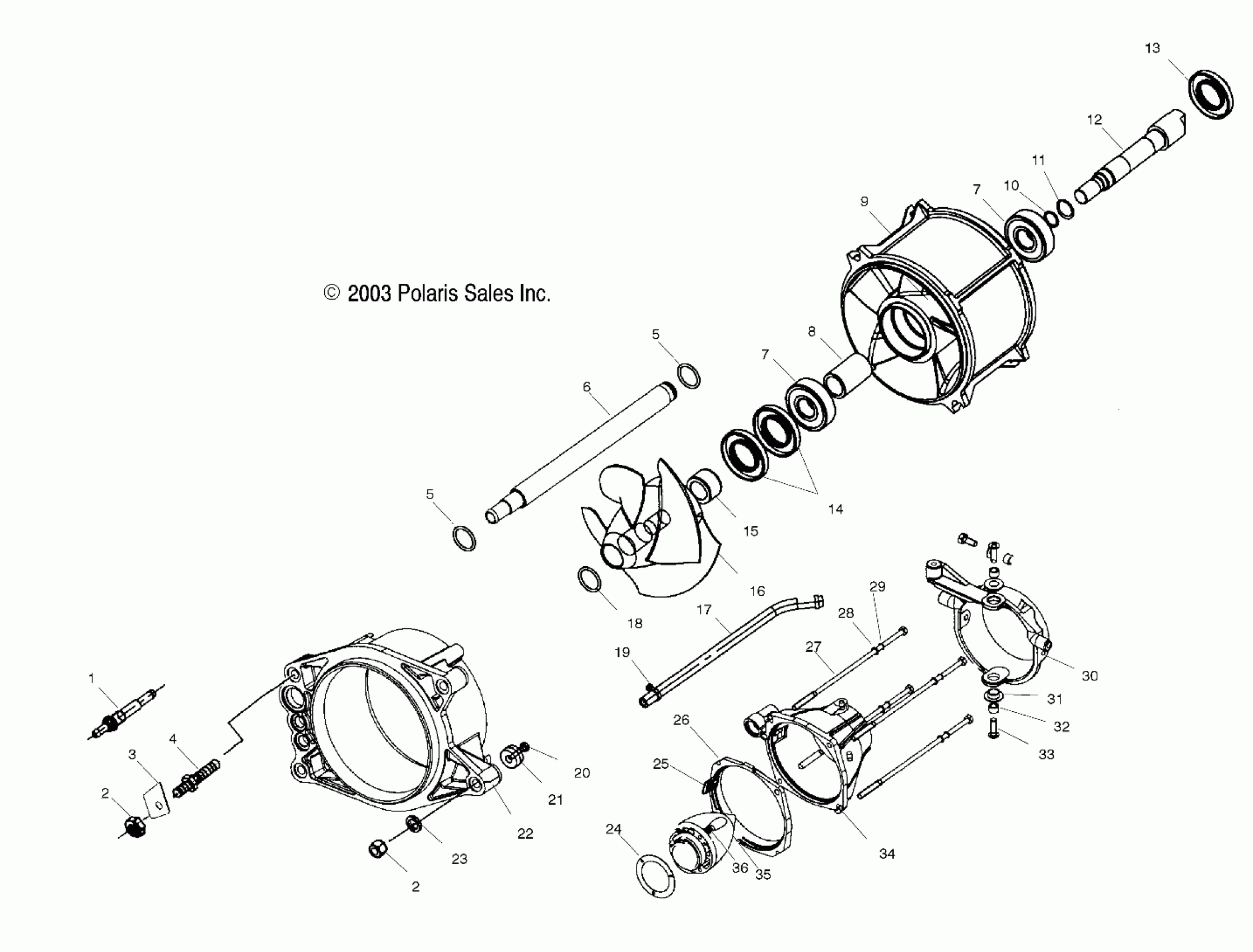

Polaris GENESIS I - W045098CA PROPULSION - W045098CA/IA (4990459045B03) Diagram
#
1
Pipe, Water, Bilge
5431990
Unavailable
2
Nut, Nylok
7542455
Unavailable
2
Nut, Nylok
7542455
Unavailable
3
Bracket, Steering Cable Nut
5244556
Unavailable
4
Stud, Pump Mounting
5132111
Unavailable
5
O-Ring
5410735
Unavailable
5
O-Ring
5410735
Unavailable
6
Pipe, Water, Engine
5433334
Unavailable
7
Bearing
3514008
Unavailable
7
Bearing
3514008
Unavailable
8
Spacer, Bearing
5010294
Unavailable
9
Stator
5132088
Unavailable
10
O-Ring
5410817
Unavailable
11
O-Ring
5410818
Unavailable
12
Shaft, Stub
5132674
Unavailable
13
O-Ring
5410819
Unavailable
14
Seal, Stator Bearing
3610043
Unavailable
15
Spacer, Impeller (If built before 2/12/04)
5010295
Unavailable
15
Spacer, Impeller (If built after 2/12/04)
5134505
Unavailable
16
Impeller
5131366
Unavailable
17
Hose, Water
8450054-100
Unavailable
18
O-Ring
5410731
Unavailable
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
Screw
7522019
Unavailable
21
Anode, Zinc
5630598
Unavailable
22
Housing, Pump w/Ring
5131574
Unavailable
23
Washer, Flat
7555966
$2.63
24
Seal, Tail Cone
5811984
Unavailable
25
Screen, Engine Inlet
5431523
Unavailable
26
Wedge, Pump
5432841
Unavailable
27
Screw
7517654
Unavailable
28
Washer, Flat
7555835
Unavailable
29
Washer, Lock
7552610
Unavailable
30
Nozzle, Steering
5130999
Unavailable
31
Bearing, Steering Nozzle
5431518
Unavailable
32
Collar
5130938
Unavailable
33
Screw
7515366
Unavailable
34
Asm., Nozzle
1350038
Unavailable
35
Cone, Pump
5431519
Unavailable
36
Screw (If built before 3/15/04)
7512064
Unavailable
36
Screw (If built after 3/15/04)
7518396
Unavailable
