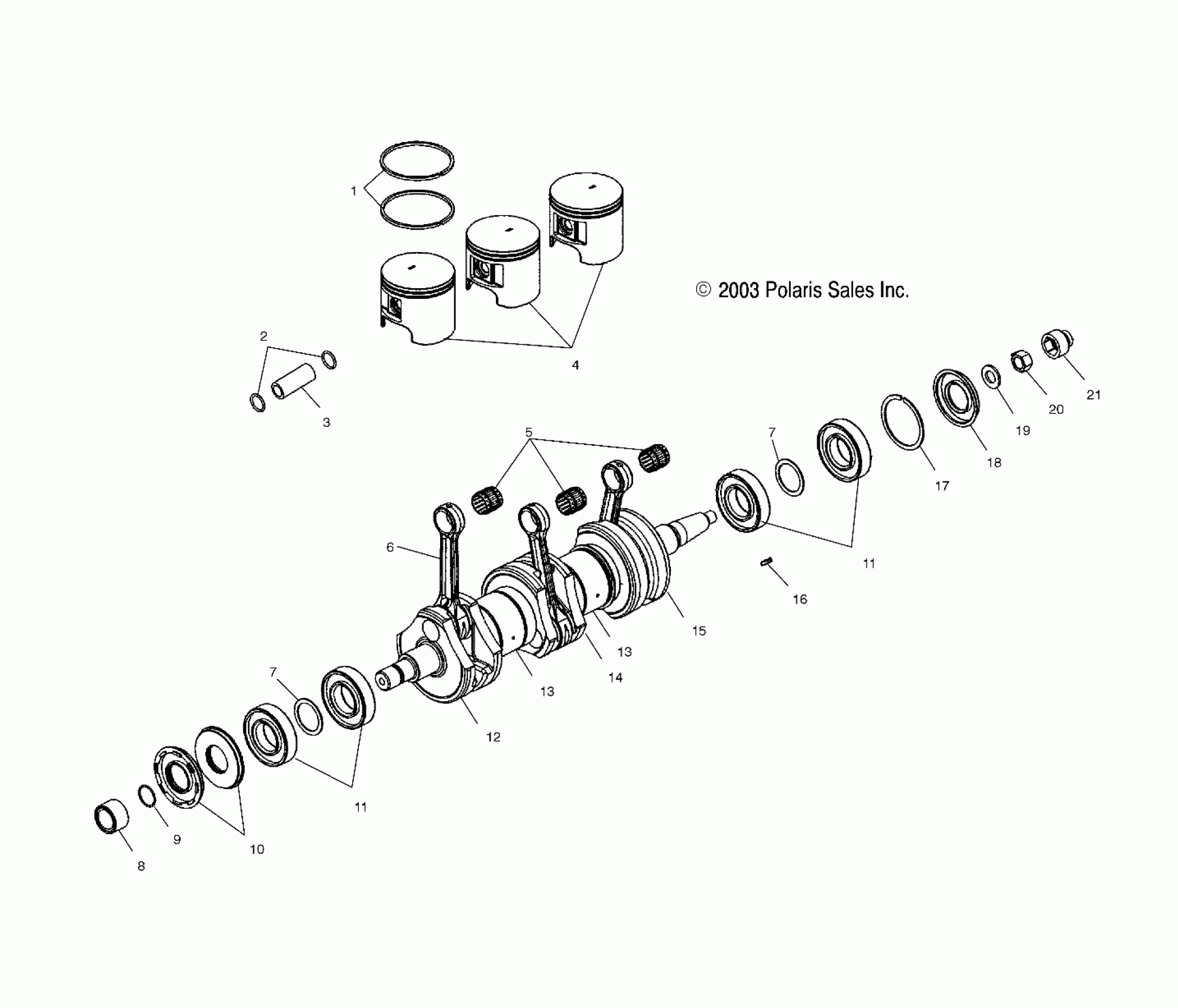

Polaris GENESIS I - W045098CA CRANKSHAFT and PISTON - W045098CA/IA (4990459045C04) Diagram

#

Description
Price

-

Kit, Crankshaft, 1200 Triple [Incl. 5,7,11-12]

2201444

Unavailable

1

Kit, Piston Rings, Standard

2201449

Unavailable

1

Kit, Piston Rings, .25 mm O/S

2201450

Unavailable

1

Kit, Piston Rings, .50 mm O/S

2201451

Unavailable

2

Circlip, Piston

3023031

Unavailable

3

Pin, Piston

3023030

Unavailable

4

Kit, Piston, Std. [Incl. 1-3]

2201706

Unavailable

4

Kit, Piston, .25 mm O/S [Incl. 1-3]

2201707

Unavailable

4

Kit, Piston, .50 mm O/S [Incl. 1-3]

2201708

Unavailable

5

Bearing (If built after 10/15/03)

3514357

$23.99

5

Bearing (If built before 10/15/03)

3552112

Unavailable

6

Kit, Connecting Rod Assembly

2201445

Unavailable

7

Bushing

7555905

$3.99

7

Bushing

7555905

$3.99

8

Collar, Crankshaft

5131195

Unavailable

9

O-RING

5410613

$1.99

10

Seal, Flange

5412091

$29.99

11

Bearing, Ball, Deep Groove

3585503

$31.99

11

Bearing, Ball, Deep Groove

3585503

$31.99

12

Crankweb, PTO, 70 mm

5131746

Unavailable

13

Labyrinth

5131086

Unavailable

13

Labyrinth

5131086

Unavailable

14

Crankweb, Center, 70 mm

5131745

Unavailable

15

Crankweb, MAG, 70 mm

5131744

Unavailable

16

KEY, WOODRUFF

7721117

$24.99

17

Ring, Retaining

7710441

Unavailable

18

Seal

3610044

$24.27

19

WASHER

7555907

$5.59

20

Nut

7546909

Unavailable

21

Coupler, Pump Drive

5432576

Unavailable
