CRANKCASE - W045098CA/IA (4990459045C01)

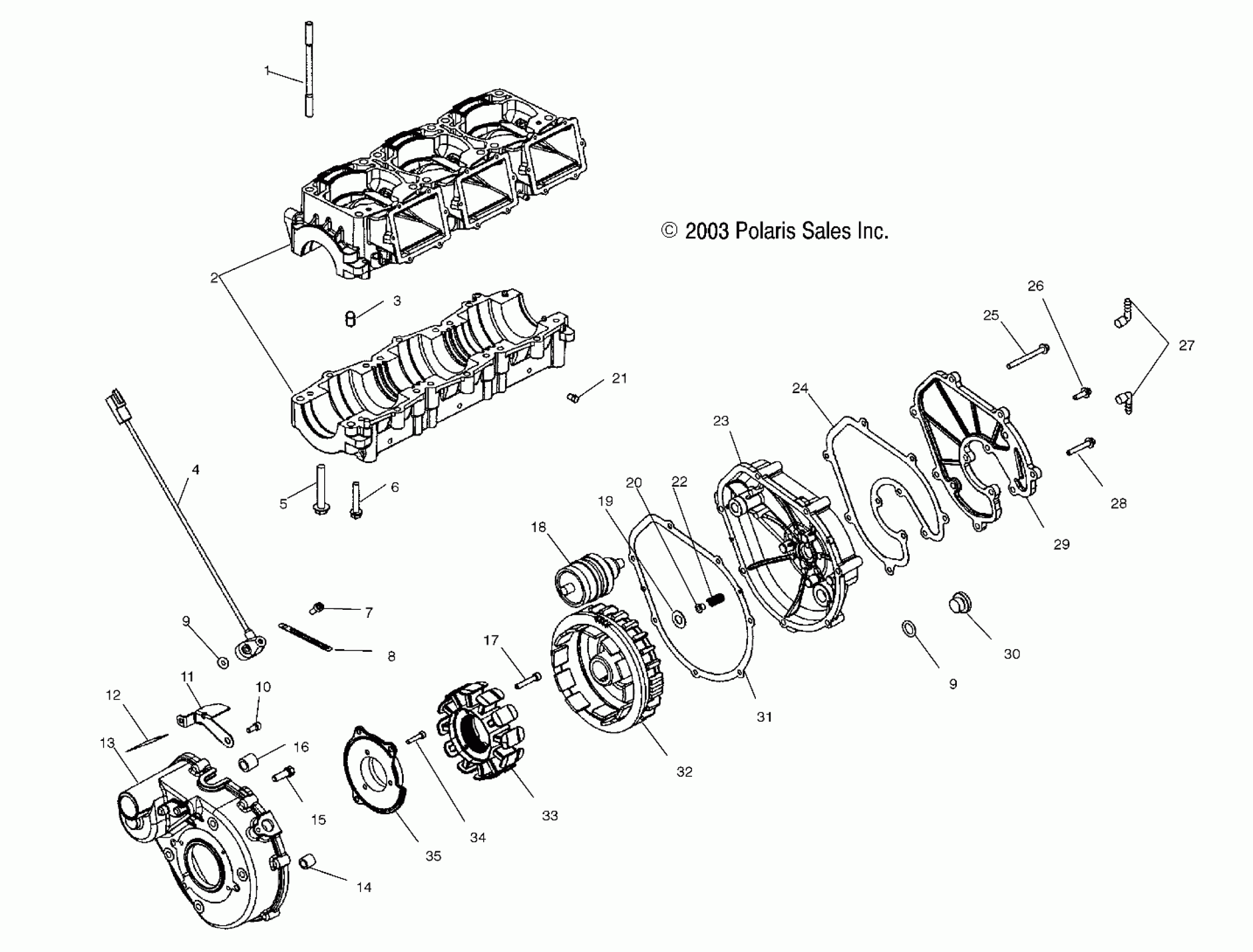

Polaris GENESIS I - W045098CA CRANKCASE - W045098CA/IA (4990459045C01) Diagram
#
Description
Price
1
Stud, Cylinder Flange
5131677
Unavailable
2
Kit, Crankcase, 1200 [Incl. 3-6]
2201562
Unavailable
3
PIN-DOWEL,M8 X 16 SS
7663001
$11.19
4
Sensor, Crank Position
2410128
Unavailable
5
Screw
7516913
Unavailable
6
Screw
7517628
Unavailable
7
Screw
7517974
Unavailable
8
Retainer
7080654
$18.32
9
O-Ring
5411564
$4.03
9
O-Ring
5411564
$4.03
10
SCREW
7517431
$5.59
11
Clamp, Stator Wires
5243231
Unavailable
12
Decal, Emissions
7171035
Unavailable
13
Asm., Flywheel Housing [Incl. 14,16]
1202023
Unavailable
14
Dowel, Pin
7663002
$4.79
15
Screw
7516723
Unavailable
16
Bushing
3514378
$12.39
17
Screw
7517602
$4.99
18
Asm., Bendix (See Starting Motor Pg. C6 for Details)
-------
Unavailable
19
Washer, Thrust
7555908
$3.17
20
Bushing
3574214
Unavailable
21
Plug
7051529
$15.99
22
Spring
7041457
Unavailable
23
Bushing
3569806
Unavailable
23
Asm., Cover, Flywheel
1202574
Unavailable
24
Gasket, Water Jacket Cover
5812474
Unavailable
25
Screw
7517662
Unavailable
26
Screw
7516809
Unavailable
27
Fitting, 90 Degree
7052156
$30.00
28
Screw
7516806
Unavailable
29
Cover, Water Jacket
5631431-329
Unavailable
30
Plug, Timing Hole
5433820
$20.22
31
Gasket, Flywheel Cover
5811550
Unavailable
32
Flywheel
4010168
Unavailable
33
Stator, Ignition
4010320
Unavailable
34
Screw
7517620
Unavailable
35
Plate, Stator Mount
5631069
Unavailable
