SEAT - W035098CA/W035098IA (4981028102A12)

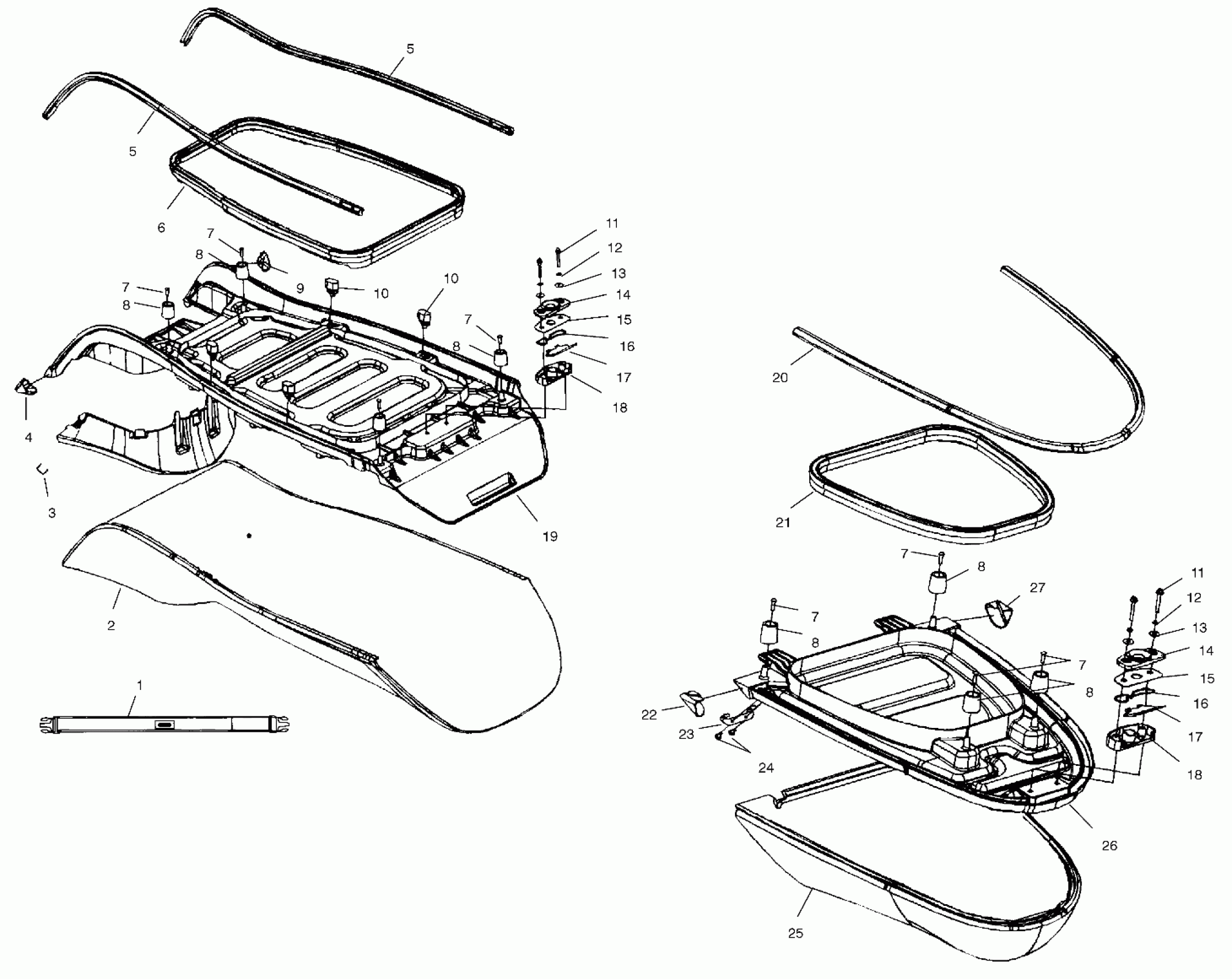

Polaris GENESIS I - W035098CA/W035098IA SEAT - W035098CA/W035098IA (4981028102A12) Diagram
#
1
Strap w/Clips
2682566-070
Unavailable
2
Cover, Seat, Front
2682686-320
Unavailable
3
Staple
9810357
Unavailable
4
Shield, Seat, Front, RH
5434567-320
Unavailable
5
Trim, Seat, Front
5521520
Unavailable
5
Trim, Seat, Front
5521520
Unavailable
6
Seal, Seat, Front
5521626
Unavailable
7
Screw
7517732
Unavailable
7
Screw
7517732
Unavailable
7
Screw
7517732
Unavailable
7
Screw
7517732
Unavailable
7
Screw
7517732
Unavailable
7
Screw
7517732
Unavailable
8
Bumper, Seat
5521533
Unavailable
8
Bumper, Seat
5521533
Unavailable
8
Bumper, Seat
5521533
Unavailable
8
Bumper, Seat
5521533
Unavailable
8
Bumper, Seat
5521533
Unavailable
8
Bumper, Seat
5521533
Unavailable
9
Shield, Seat, Front, LH
5434566-320
Unavailable
10
Bumper, Seat, Oval
5521490
Unavailable
10
Bumper, Seat, Oval
5521490
Unavailable
11
Screw
7516806
Unavailable
11
Screw
7516806
Unavailable
12
Washer, Lock
7555838
Unavailable
12
Washer, Lock
7555838
Unavailable
13
Washer, Flat
7555839
Unavailable
13
Washer, Flat
7555839
Unavailable
14
Plate, Bottom, Seat Base Latch
5431357
Unavailable
14
Plate, Bottom, Seat Base Latch
5431357
Unavailable
15
Plate, Seat Base Latch
5211314
Unavailable
15
Plate, Seat Base Latch
5211314
Unavailable
16
Spring, Seat Base Latch
7042036
Unavailable
16
Spring, Seat Base Latch
7042036
Unavailable
17
Handle, Seat Base Latch
5431358
Unavailable
17
Handle, Seat Base Latch
5431358
Unavailable
18
Plate, Top, Seat Base Latch
5431359
Unavailable
18
Plate, Top, Seat Base Latch
5431359
Unavailable
19
Asm., Seat, Front [Incl. 2-18]
2683088-320
Unavailable
20
Trim, Seat, Rear
5521522
Unavailable
21
Seal, Seat, Rear
5521628
Unavailable
22
Shield, Seat, Rear, RH
5434569-416
Unavailable
23
Cap, End, Seat
5433376-070
Unavailable
24
CLIP, XMAS TREE
5432966
$1.49
25
Cover, Seat, Rear
2682427-416
Unavailable
26
Asm., Seat, Rear [Incl. 7,8,11-18,20-25,27]
2682928-416
Unavailable
27
Shield, Seat, Rear, LH
5434568-416
Unavailable
