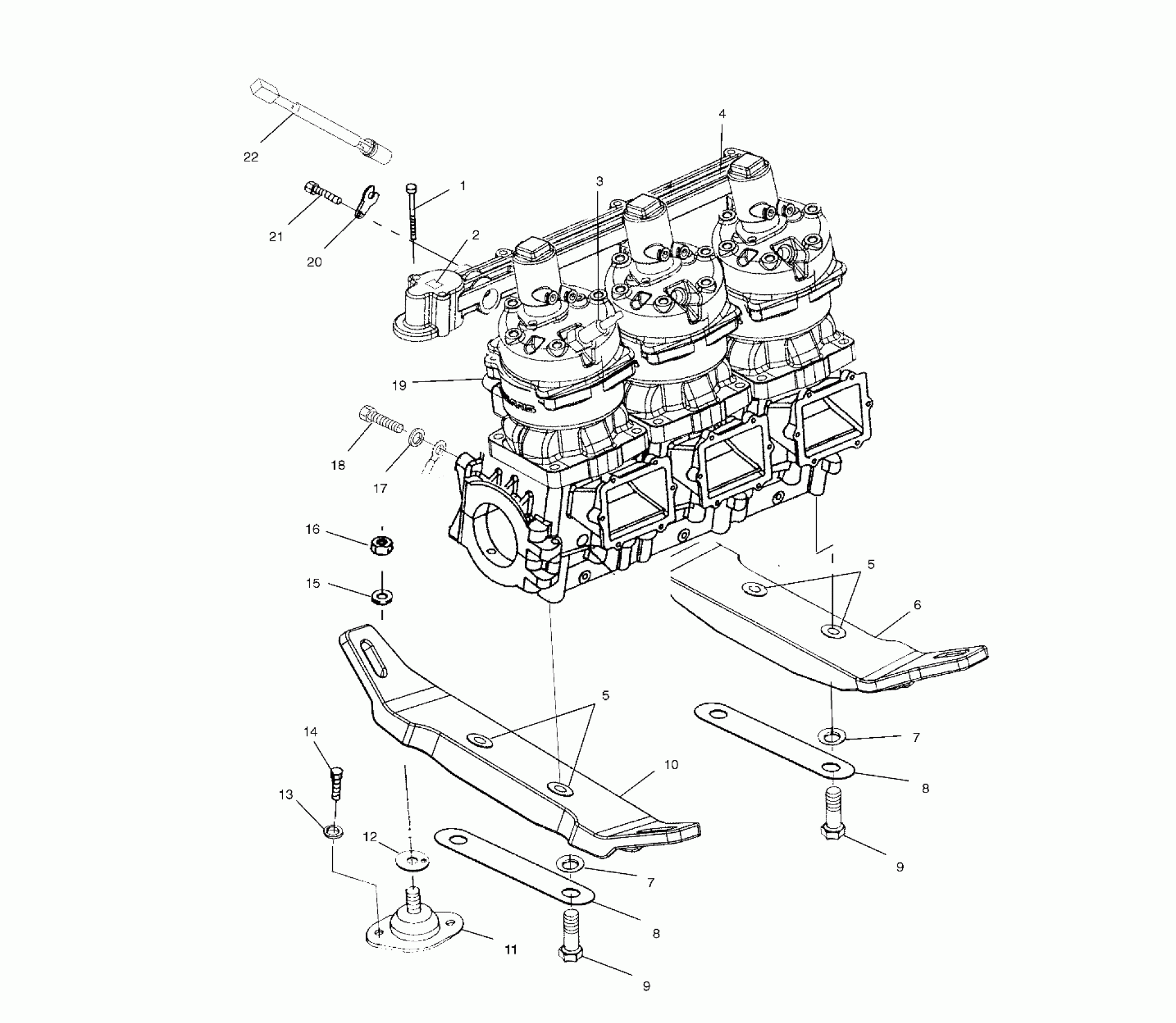

Polaris GENESIS I - W035098CA/W035098IA ENGINE MOUNTING - W035098CA/W035098IA (4981028102B13) Diagram

#

Description
Price

1

Screw

7515149

Unavailable

2

Decal, Spark Plug

7077026

$2.94

3

SPARK PLUG [SEE MANIFOLD/IGNITION PG. C2, REF. 18]

----

Unavailable

4

DECAL, WARNING [SEE MANIFOLD/IGNITION PG. C2, REF. 4]

----

Unavailable

5

Washer

7556184

$3.81

5

Washer

7556184

$3.81

6

Plate, Mount, Front

5631166-329

$139.68

7

Washer, Flat

7556170

Unavailable

7

Washer, Flat

7556170

Unavailable

8

Plate, Lock

5245460

$13.10

8

Plate, Lock

5245460

$13.10

9

Screw

7517330

Unavailable

9

Screw

7517330

Unavailable

10

Plate, Mount, Rear

5631167-329

Unavailable

11

Mount, Engine

3021253

$65.87

12

Shim, Engine Mount

5211727

Unavailable

13

Washer, Lock

7552610

Unavailable

14

Screw

7515365

Unavailable

15

Washer, Flat

7555848

Unavailable

16

Nut, Nylok

7542725

$3.59

17

Washer, Lock

7556055

Unavailable

18

Screw

7517497

$3.97

19

Kit, Short Block, NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly.

2201705

Unavailable

20

Clip, Retainer

5244176

$4.76

21

BOLT

7516603

$10.32

22

Sensor, Water Temperature

2410125

Unavailable
