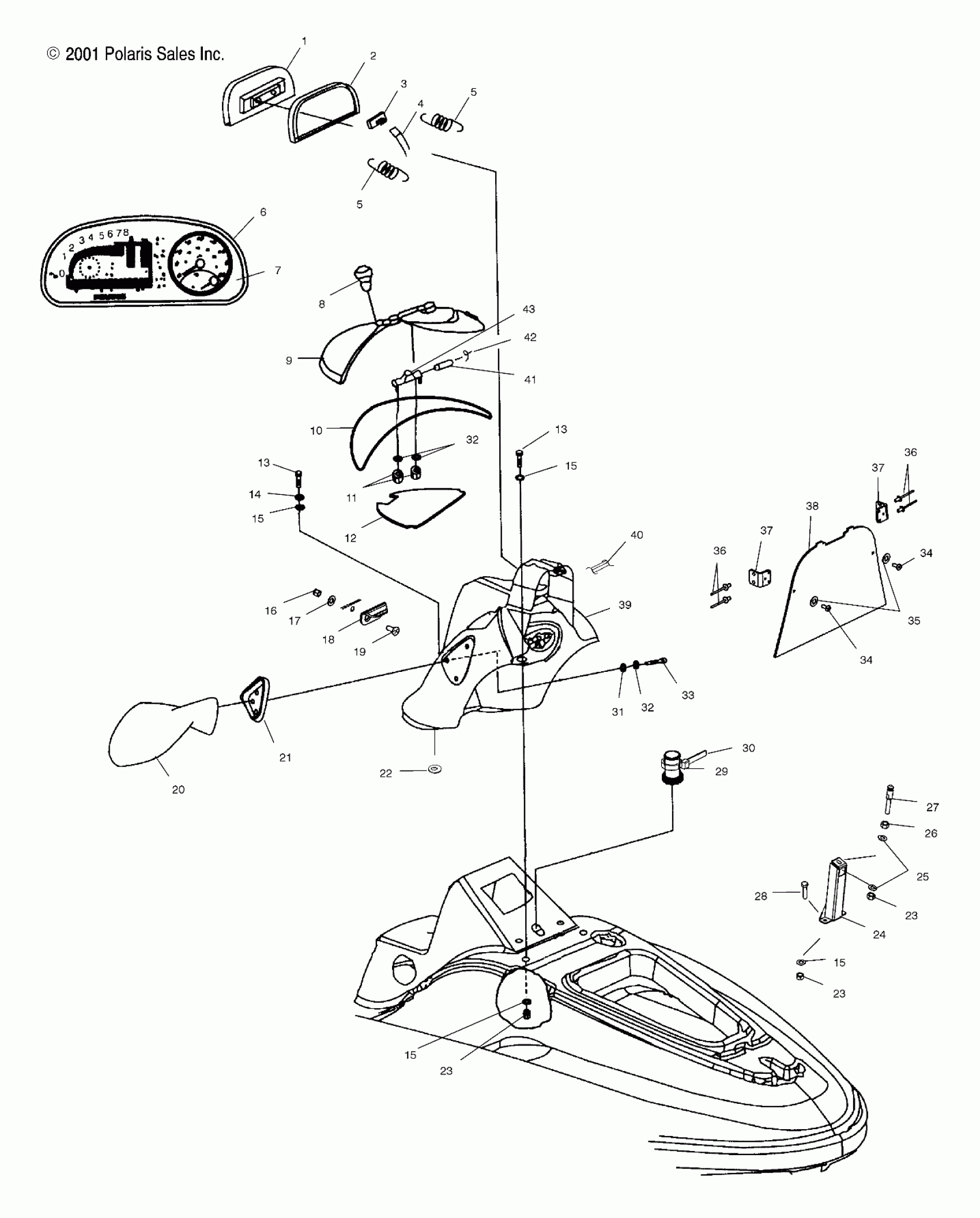

Polaris GENESIS I - W025098C SHROUD - W025098D/W025098C/W025098I (4971447144A03) Diagram

#

Description
Price

1

Gauge, MFI, Analog/Digital

3280371

$774.99

2

Gasket, MFI

5411738

$5.16

3

Connector, Deutsche

4010281

$17.30

4

Line, Pitot, Formed End

8450070-235

$24.25

5

Spring, MFI Mounting

7041931

$1.83

5

Spring, MFI Mounting

7041931

$1.83

6

Kit, MFI Button Replacement

2201593

$25.30

7

Bezel, MFI, Overlay

3280342

$23.81

8

Asm., Console Latch

2653011

$28.73

9

Lid, Console

5434564-1137

Unavailable

10

Seal

5521596

Unavailable

11

Nut

7546705

$4.76

12

Pad, Console

5812235

Unavailable

13

Screw

7517668

$2.06

13

Screw

7517668

$2.06

14

Washer, Lock

7556055

Unavailable

15

Washer, Flat

7555831

Unavailable

15

Washer, Flat

7555831

Unavailable

15

Washer, Flat

7555831

Unavailable

15

Washer, Flat

7555831

Unavailable

16

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

17

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

18

Hook, Console

5245455

Unavailable

19

Screw

7517669

Unavailable

20

Asm., Mirror, Port (LH)

2631972-070

$119.05

20

Asm., Mirror, Starboard (RH)

2631973-070

$106.35

21

Gasket, Mirror, LH

5411557

$4.92

21

Gasket, Mirror, RH

5411558

$4.92

22

Washer

7555834

Unavailable

23

NUT, NYLOK

7546804

$1.19

23

NUT, NYLOK

7546804

$1.19

23

NUT, NYLOK

7546804

$1.19

24

Post, Door Latch

1821213

Unavailable

25

Washer, Flat

7555835

$0.69

26

Nut

7547187

$0.95

27

Pin, Latch Hood

5132781

$24.60

28

Screw

7517539

Unavailable

29

Grommet, Deck, Wire Harness

5411664

Unavailable

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

Washer, Flat

7555839

Unavailable

32

Washer, Lock

7552613

Unavailable

32

Washer, Lock

7552613

Unavailable

33

Screw

7516805

$0.71

34

Screw

7511873

Unavailable

34

Screw

7511873

Unavailable

35

Washer, Flat

7555837

$1.59

36

Rivet

7621220

$2.38

36

Rivet

7621220

$2.38

37

Bracket, Shroud Cover

5245451

Unavailable

37

Bracket, Shroud Cover

5245451

Unavailable

38

Cover, Shroud

5812284

$23.81

39

Shroud, Steering

5434559-1137

$288.99

40

Bumper, Door Shroud

5812076

$10.81

41

Pin, Hinge

5333698

Unavailable

42

Spring, Torsion, Console

7042007

Unavailable

43

Hinge, Console

5433384

Unavailable
