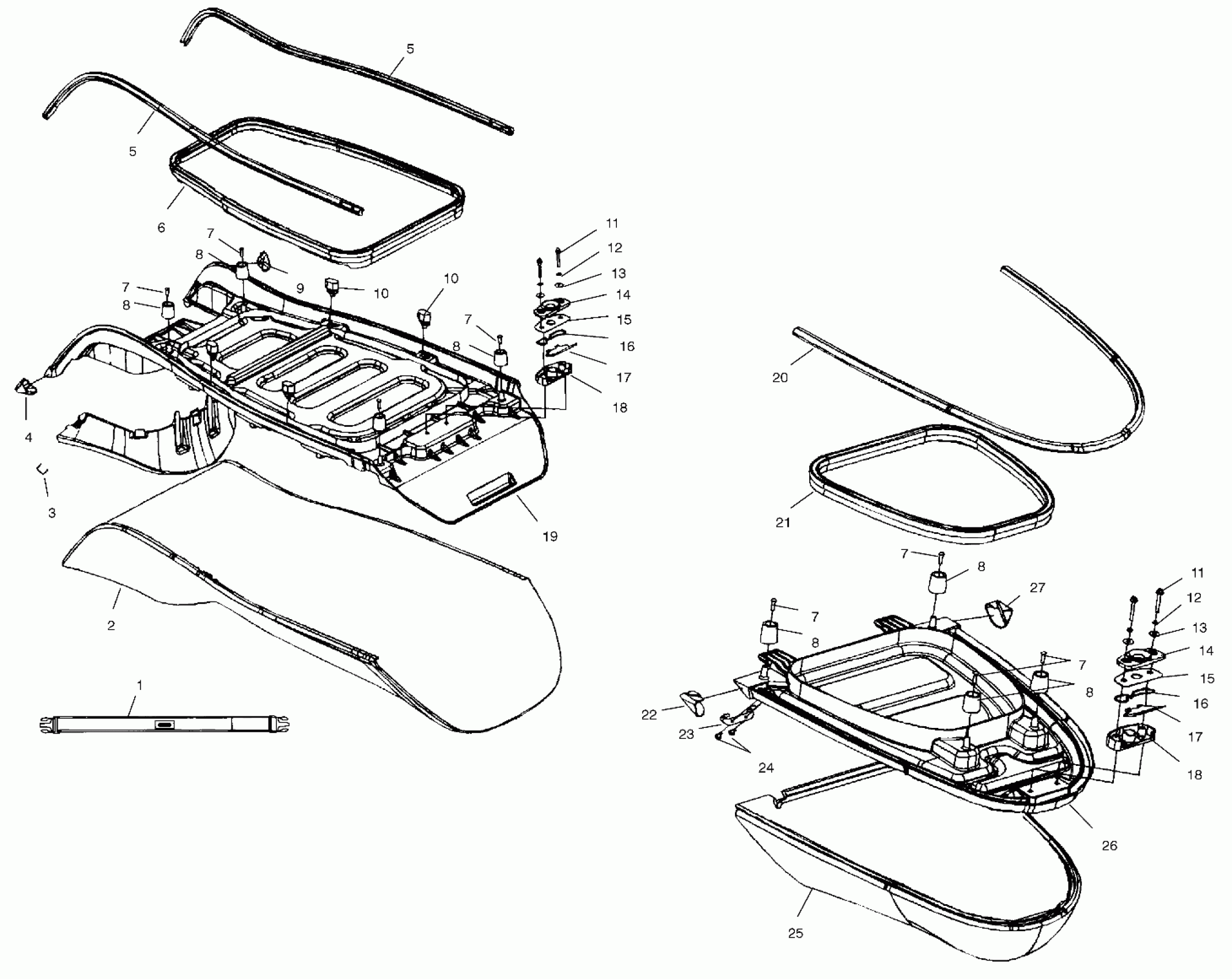

Polaris GENESIS I - W025098C SEAT - W025098D/W025098C/W025098I (4971447144A12) Diagram

#

Description
Price

1

Strap w/Clips

2682566-070

Unavailable

2

Cover, Seat, Front

2682686-370

Unavailable

3

Staple

9810357

Unavailable

4

Shield, Seat, Front, RH

5434567-370

Unavailable

5

Trim, Seat, Front

5521520

Unavailable

5

Trim, Seat, Front

5521520

Unavailable

6

Seal, Seat, Front

5521483

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

7

Screw

7517732

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

8

Bumper, Seat

5521533

Unavailable

9

Shield, Seat, Front, LH

5434566-370

Unavailable

10

Bumper, Seat, Oval

5521490

Unavailable

10

Bumper, Seat, Oval

5521490

Unavailable

11

Screw

7516806

Unavailable

11

Screw

7516806

Unavailable

12

Washer, Lock

7555838

Unavailable

12

Washer, Lock

7555838

Unavailable

13

Washer, Flat

7555839

Unavailable

13

Washer, Flat

7555839

Unavailable

14

Plate, Bottom, Seat Base Latch

5431357

Unavailable

14

Plate, Bottom, Seat Base Latch

5431357

Unavailable

15

Plate, Seat Base Latch

5211314

Unavailable

15

Plate, Seat Base Latch

5211314

Unavailable

16

Spring, Seat Base Latch

7042036

Unavailable

16

Spring, Seat Base Latch

7042036

Unavailable

17

Handle, Seat Base Latch

5431358

Unavailable

17

Handle, Seat Base Latch

5431358

Unavailable

18

Plate, Top, Seat Base Latch

5431359

Unavailable

18

Plate, Top, Seat Base Latch

5431359

Unavailable

19

Asm., Seat, Front (Incl. 2-18) (Incl. 2-18)

2683088-370

Unavailable

20

Trim, Seat, Rear

5521522

Unavailable

21

Seal, Seat, Rear

5521484

Unavailable

22

Shield, Seat, Rear, RH

5434569-369

Unavailable

23

Cap, End, Seat

5433376-070

Unavailable

24

CLIP, XMAS TREE

5432966

$1.49

25

Cover, Seat, Rear

2682427-369

Unavailable

26

Asm., Seat, Rear (Incl. 7,8,11-18,20-25,27) (Incl. 7,8,11-18,20-25,27)

2682928-369

Unavailable

27

Shield, Seat, Rear, LH

5434568-369

Unavailable
