- GENESIS I - W025098C
HULL and BODY - W025098D/W025098C/W025098I (4971447144A05)

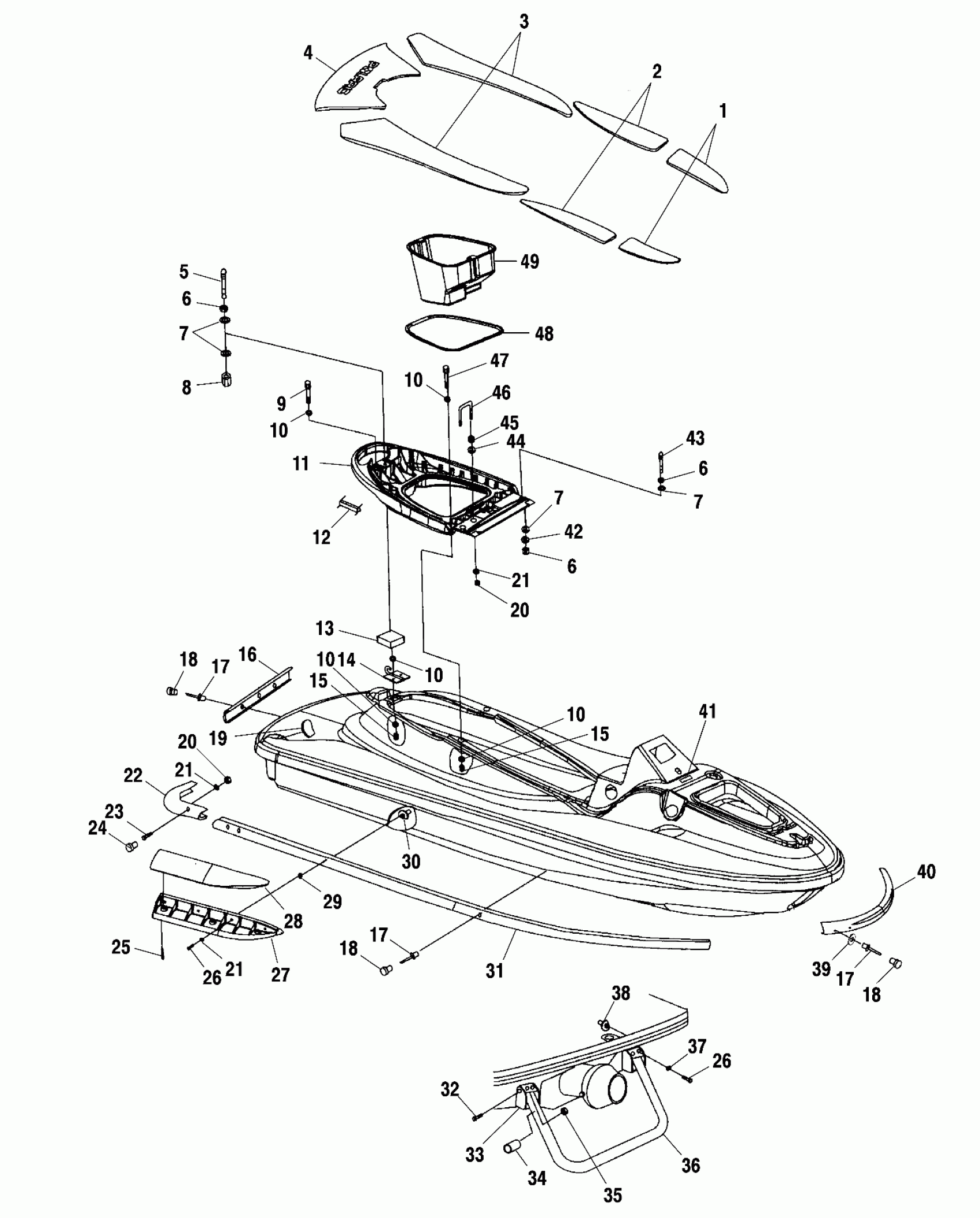

Polaris GENESIS I - W025098C HULL and BODY - W025098D/W025098C/W025098I (4971447144A05) Diagram
#
1
Pad, Footwell, Front, LH
5812377-353
Unavailable
1
Pad, Footwell, Front, RH
5812378-353
Unavailable
2
Pad, Footwell, Center, LH
5812379-353
Unavailable
2
Pad, Footwell, Center, RH
5812380-353
Unavailable
3
Pad, Footwell, Rear, LH
5812381-353
Unavailable
3
Pad, Footwell, Rear, RH
5812382-353
Unavailable
4
Pad, Boarding
5812383-353
Unavailable
5
Plunger, Side Latch
5020929
Unavailable
6
Nut
7542454
Unavailable
6
Nut
7542454
Unavailable
6
Nut
7542454
Unavailable
7
WASHER, FLAT
7555846
$5.59
7
WASHER, FLAT
7555846
$5.59
7
WASHER, FLAT
7555846
$5.59
8
Nut, Nylok
7542455
Unavailable
9
Screw
7516725
Unavailable
10
Washer, Flat
7555874
$2.39
10
Washer, Flat
7555874
$2.39
10
Washer, Flat
7555874
$2.39
10
Washer, Flat
7555874
$2.39
10
Washer, Flat
7555874
$2.39
11
Handle w/Cross Member, Grab
5433014-070
Unavailable
12
Seal, Grab Handle
5521515
Unavailable
13
Seal, Tow Hook
5521513
Unavailable
14
Hook, Tow
2631982
Unavailable
15
NUT, NYLOK
7546804
$1.49
15
NUT, NYLOK
7546804
$1.49
16
Bumper, Rear
5433086-070
Unavailable
17
Rivet
7621488
$3.99
17
Rivet
7621488
$3.99
17
Rivet
7621488
$3.99
18
Plug, Bumper, Rear
5431994-070
Unavailable
18
Plug, Bumper, Rear
5431994-070
Unavailable
18
Plug, Bumper, Rear
5431994-070
Unavailable
19
Pad, Heel, LH
5433096
Unavailable
19
Pad, Heel, RH
5433097
Unavailable
20
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
20
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
21
Washer, Flat
7555839
Unavailable
21
Washer, Flat
7555839
Unavailable
21
Washer, Flat
7555839
Unavailable
22
Bumper, Corner, LH
5433087-070
Unavailable
22
Bumper, Corner, RH
5433088-070
Unavailable
23
Screw
7517671
Unavailable
24
Plug, Bumper
5433085-070
Unavailable
25
Screw
7512065
Unavailable
26
Screw
7515198
Unavailable
26
Screw
7515198
Unavailable
27
Sponson, LH
5433441-070
Unavailable
27
Sponson, RH
5433442-070
Unavailable
28
Cover, Sponson, LH
5433486-070
Unavailable
28
Cover, Sponson, RH
5433487-070
Unavailable
29
Washer, Rubber
5811440
$2.07
30
Insert
5132471
Unavailable
31
Rail, Rub, LH/RH
5521481-070
Unavailable
32
Screw
7517321
Unavailable
33
Bracket, Mount, Ladder
5244040
Unavailable
34
Tubing, Split
5521549
Unavailable
35
Nut, Acorn
7547137
Unavailable
36
Ladder, Boarding
5630963
Unavailable
37
Washer, Lock
7555838
Unavailable
38
Insert
5132225
Unavailable
39
Washer
7556029
Unavailable
40
Bumper, Front
5411516-070
Unavailable
41
Decal, Compartment Door Warning
7079124
Unavailable
42
Washer, Lock
7552607
Unavailable
43
Plunger, Latch
5020753
Unavailable
44
Washer, Dish, Rubber
7555870
Unavailable
45
Nut
7546705
$4.79
46
U-Bolt, Seat, Rear
5243239
Unavailable
47
Screw
7517668
Unavailable
48
Gasket, Bucket, Rear
5411606
Unavailable
49
Bucket, Storage, Rear
5433019
Unavailable
