CRANKSHAFT and PISTON - W025098D/W025098C/W025098I (4971447144C03)

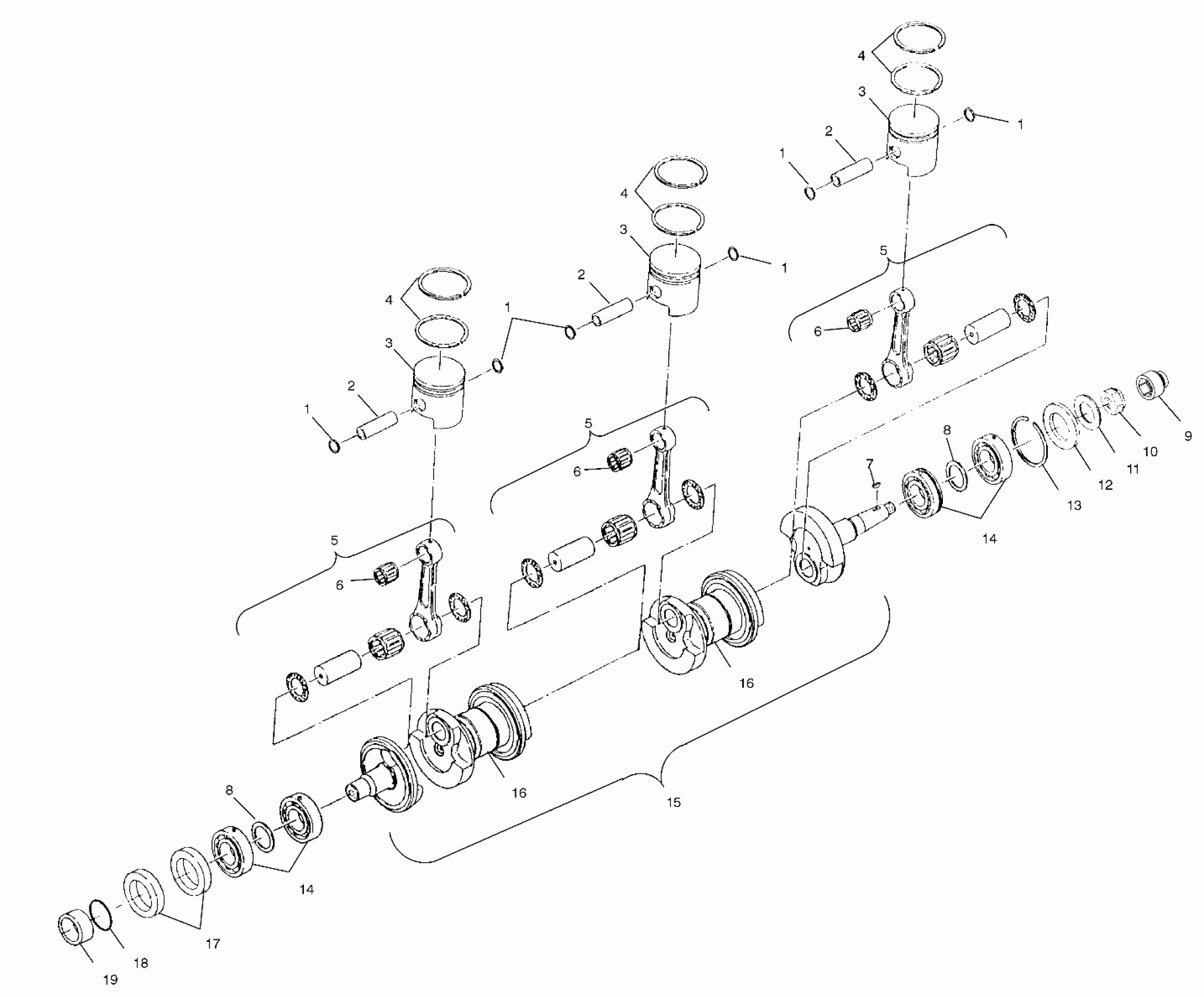

Polaris GENESIS I - W025098C CRANKSHAFT and PISTON - W025098D/W025098C/W025098I (4971447144C03) Diagram
#
-
Kit, Crankshaft, 1200 Triple (Incl. 6,8,14-16) (Incl. 6,8,14-16)
2201444
Unavailable
1
Circlip, Piston
3023031
Unavailable
1
Circlip, Piston
3023031
Unavailable
1
Circlip, Piston
3023031
Unavailable
1
Circlip, Piston
3023031
Unavailable
1
Circlip, Piston
3023031
Unavailable
2
Pin, Piston
3023030
Unavailable
2
Pin, Piston
3023030
Unavailable
2
Pin, Piston
3023030
Unavailable
3
Kit, Piston Asm. (Std.)(Incl.1,2,4) (Std.)(Incl.1,2,4)
2201706
Unavailable
3
Kit, Piston Asm. (.25 mm O/S) (Incl.1,2,4) (.25 mm O/S) (Incl.1,2,4)
2201707
Unavailable
3
Kit, Piston Asm. (.50 mm O/S) (Incl. 1,2,4) (.50 mm O/S) (Incl. 1,2,4)
2201708
Unavailable
3
Kit, Piston Asm. (Std.)(Incl.1,2,4) (Std.)(Incl.1,2,4)
2201706
Unavailable
3
Kit, Piston Asm. (.25 mm O/S) (Incl.1,2,4) (.25 mm O/S) (Incl.1,2,4)
2201707
Unavailable
3
Kit, Piston Asm. (.50 mm O/S) (Incl. 1,2,4) (.50 mm O/S) (Incl. 1,2,4)
2201708
Unavailable
3
Kit, Piston Asm. (Std.)(Incl.1,2,4) (Std.)(Incl.1,2,4)
2201706
Unavailable
3
Kit, Piston Asm. (.25 mm O/S) (Incl.1,2,4) (.25 mm O/S) (Incl.1,2,4)
2201707
Unavailable
3
Kit, Piston Asm. (.50 mm O/S) (Incl. 1,2,4) (.50 mm O/S) (Incl. 1,2,4)
2201708
Unavailable
4
Kit, Piston Rings (Standard) (Standard)
2201449
Unavailable
4
Kit, Piston Rings (.25 mm O/S) (.25 mm O/S)
2201450
Unavailable
4
Kit, Piston Rings (.50 mm O/S) (.50 mm O/S)
2201451
Unavailable
4
Kit, Piston Rings (Standard) (Standard)
2201449
Unavailable
4
Kit, Piston Rings (.25 mm O/S) (.25 mm O/S)
2201450
Unavailable
4
Kit, Piston Rings (.50 mm O/S) (.50 mm O/S)
2201451
Unavailable
4
Kit, Piston Rings (Standard) (Standard)
2201449
Unavailable
4
Kit, Piston Rings (.25 mm O/S) (.25 mm O/S)
2201450
Unavailable
4
Kit, Piston Rings (.50 mm O/S) (.50 mm O/S)
2201451
Unavailable
5
Kit, Connecting Rod Asm.
2201445
Unavailable
5
Kit, Connecting Rod Asm.
2201445
Unavailable
5
Kit, Connecting Rod Asm.
2201445
Unavailable
6
Bearing
3552112
Unavailable
6
Bearing
3552112
Unavailable
6
Bearing
3552112
Unavailable
7
KEY, WOODRUFF
7721117
$24.99
8
Bushing
7555905
$3.99
8
Bushing
7555905
$3.99
9
Coupler, Pump Drive
5432576
Unavailable
10
Nut
7546909
Unavailable
11
WASHER
7555907
$5.59
12
Seal
3610044
$24.27
13
Ring, Retaining
7710441
Unavailable
14
Bearing, Ball, Deep Groove
3585503
$31.99
14
Bearing, Ball, Deep Groove
3585503
$31.99
15
KIT, CRANKSHAFT
2201444
Unavailable
16
Labyrinth
5131086
Unavailable
16
Labyrinth
5131086
Unavailable
17
Seal
5411937
Unavailable
18
O-RING
5410613
$1.99
19
Collar, Crankshaft
5131195
Unavailable
