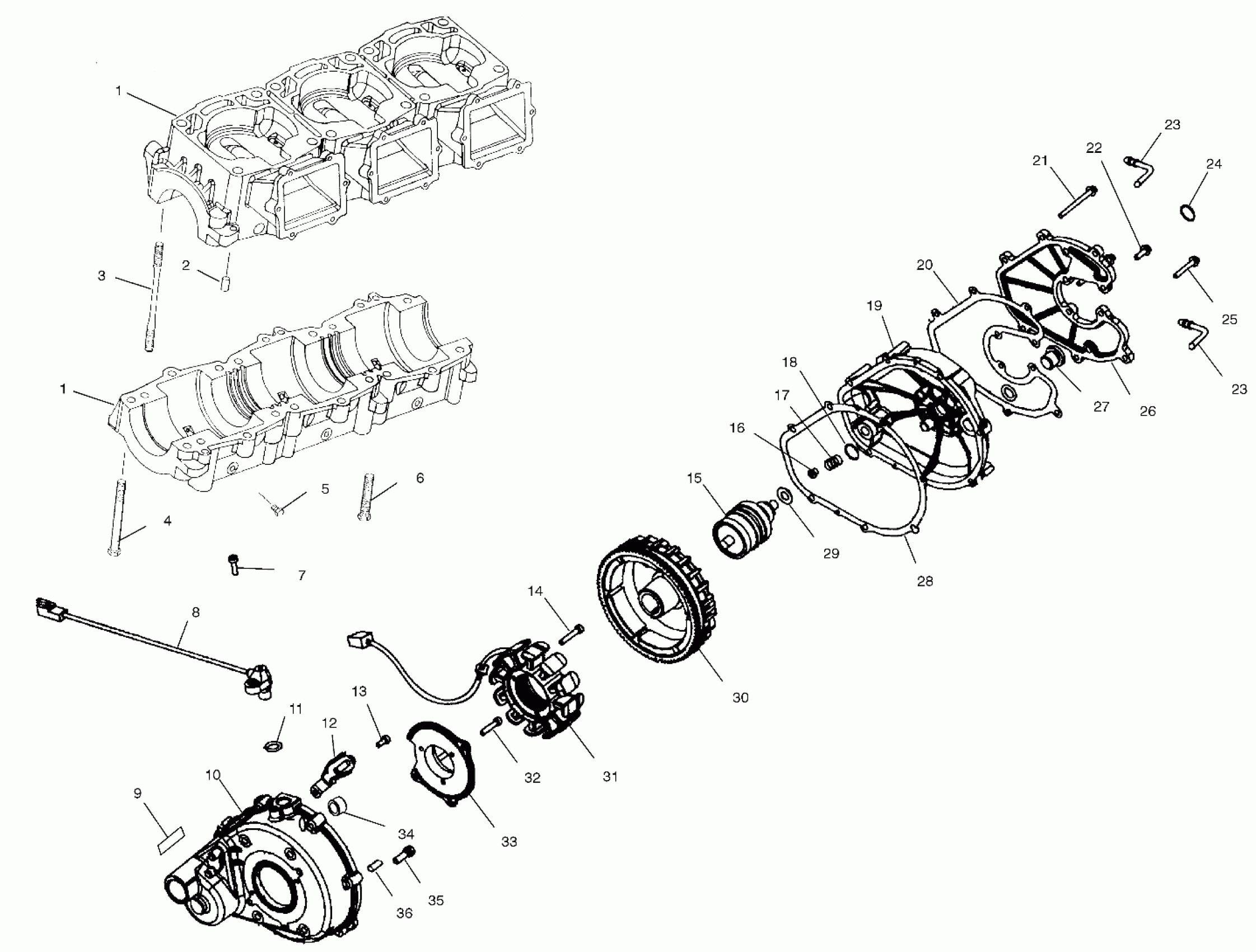

Polaris GENESIS I - W025098C CRANKCASE - W025098D/W025098C/W025098I (4971447144B14) Diagram

#

Description
Price

1

Kit, Crankcase, 1200 (Incl. 2-6) (Incl. 2-6)

2201562

Unavailable

1

Kit, Crankcase, 1200 (Incl. 2-6) (Incl. 2-6)

2201562

Unavailable

2

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

3

Stud, Cylinder Flange

5131677

Unavailable

4

Screw

7516913

Unavailable

5

Plug

7051529

$15.99

6

Screw

7517628

Unavailable

7

Screw

7517619

Unavailable

8

Sensor, Crank Position

2410128

Unavailable

9

Decal, Emissions

7079899

Unavailable

10

Asm., Flywheel Housing (Incl. 34,36) (Incl. 34,36)

1202023

Unavailable

11

O-Ring

5411564

$4.03

12

Clamp, Stator Wires

5243231

Unavailable

13

SCREW

7517431

$5.59

14

Screw

7517602

$4.99

15

Asm., Bendix

4060119

Unavailable

16

Bushing

3574214

Unavailable

17

Spring

7041457

Unavailable

18

Bushing

3569806

Unavailable

19

Cover, Flywheel

1201911

Unavailable

20

Gasket, Water Jacket Cover

5812011

Unavailable

21

Screw

7517662

Unavailable

22

Screw

7516809

Unavailable

23

Fitting, 90 Degree

7052156

$30.00

23

Fitting, 90 Degree

7052156

$30.00

24

O-Ring

5411293

Unavailable

25

Screw

7516806

Unavailable

26

Cover, Water Jacket

5630981-329

Unavailable

27

Plug, Timing Hole

5433820

$20.22

28

Gasket, Flywheel Cover

5811550

Unavailable

29

Washer, Thrust

7555908

$3.17

30

Asm., Flywheel

4010168

Unavailable

31

Stator, Ignition

4010320

Unavailable

32

Screw

7517620

Unavailable

33

Plate, Stator Mount

5631069

Unavailable

34

Bushing

3569805

Unavailable

35

Screw

7516723

Unavailable

36

Dowel, Pin

7663002

$4.79
