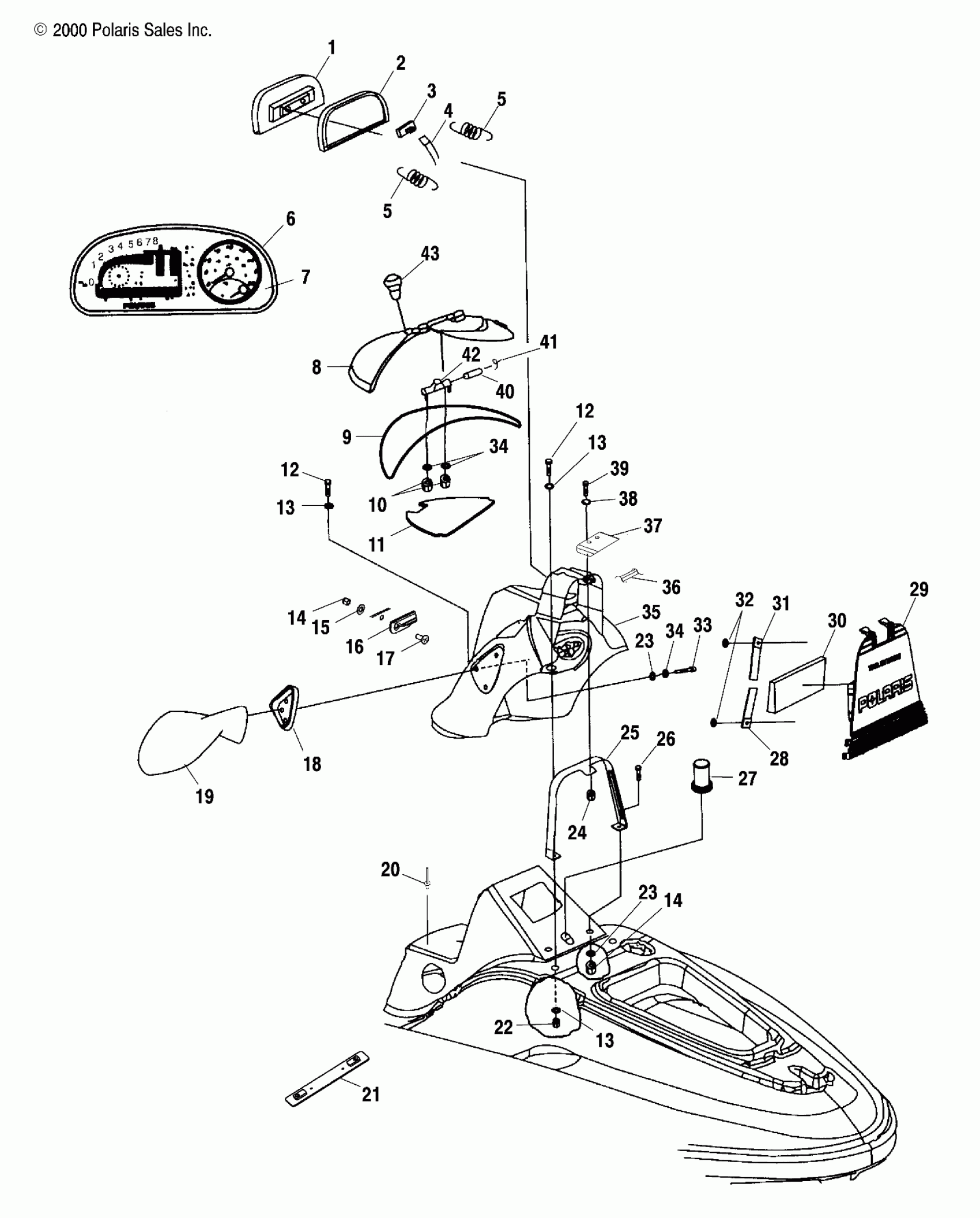

Polaris GENESIS I - W015098D SHROUD - W015098D (4964876487A003) Diagram

#

Description
Price

1

GAUGE,MFD,ANALOG/DIGITAL

3280292

$694.99

2

GASKET-MFI

5411738

$5.16

3

CONNECTOR-DEUTCHE,4PIN W/PLUGS

4010281

$17.30

4

PITOT LINE,90DEG FORMED,235CM. Substituted by 8450070-277

8450070-235

$24.25

5

SPRING,MOUNTING,MFI

7041931

$1.83

5

SPRING,MOUNTING,MFI

7041931

$1.83

6

MFI,BUTTON REPLACEMENT,KIT

2201593

$25.30

7

BEZEL-MFI,OVERLAY

3280342

$23.81

8

LID-CONSOLE,BLACK,MET

5434176-1093

$99.21

9

SEAL-BULB,CONSOLE LID

5521579

Unavailable

10

NUT, 6 MM.,S.S.(10)

7546705

$4.76

11

PAD-CONSOLE

5812235

Unavailable

12

SCREW(10)

7517668

$2.06

12

SCREW(10)

7517668

$2.06

13

WASHER, FLAT, S.S.(10)

7555831

Unavailable

13

WASHER, FLAT, S.S.(10)

7555831

Unavailable

13

WASHER, FLAT, S.S.(10)

7555831

Unavailable

14

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

14

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

15

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

16

HOOK-CONSOLE,LATCH

5245455

Unavailable

17

SCREW (10)

7517669

Unavailable

18

GASKET-MIRROR,LH

5411557

$4.92

18

GASKET-MIRROR,RH

5411558

$4.92

19

MIRROR,LH,BLACK,ASM. (LH)

2631972-070

$119.05

19

MIRROR,RH,BLACK,ASM. (RH)

2631973-070

$106.35

20

RIVET-POP (50)

7661042

$1.11

21

MOUNT,SHROUD

1820725

$14.76

22

NUT,HEX,(10)

7546804

$1.19

23

WASHER, FLAT, S.S.(10)

7555839

Unavailable

23

WASHER, FLAT, S.S.(10)

7555839

Unavailable

24

NUT, HEX, S.S.(10)

7541931

$5.99

25

BRKT,SUPPORT,SHROUD

5244673

$50.05

26

BOLT(10)

7516807

Unavailable

27

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

28

STRAP-TOOL KIT,LOWER

2690151

Unavailable

29

COVER-WIRE,SHROUD,BLK

5433210-070

$10.90

30

Kit, Tool (See Tool Kit Pg. C8)

----

Unavailable

31

STRAP-TOOL KIT,UPPER

2690150

Unavailable

32

RING-RETAINING,.25 STUD

7710517

$1.59

33

SCREW, S.S.(10)

7516805

$0.71

34

WASHER, LOCK(10)

7552613

Unavailable

34

WASHER, LOCK(10)

7552613

Unavailable

35

SHROUD-STEER,NO REV,BLK MET

5434210-1093

Unavailable

36

BUMPER,DOOR/SHROUD

5812076

$10.81

37

PLATE,LATCH,RECEIVER

5244670

Unavailable

38

WASHER, FLAT, S.S.(10)

7555837

$1.59

39

SCR-#10-32X3/4,FLAT,SOC,SS(10)

7517879

Unavailable

40

PIN-HINGE,CONSOLE

5333698

Unavailable

41

SPRING-TORTION,CONSOLE,070.SS [Item NotAvailable]

7042007

Unavailable

42

HINGE-CONSOLE,3/16 PIN

5433384

Unavailable

43

LATCH ASM,CONSOLE

2653011

$28.73
