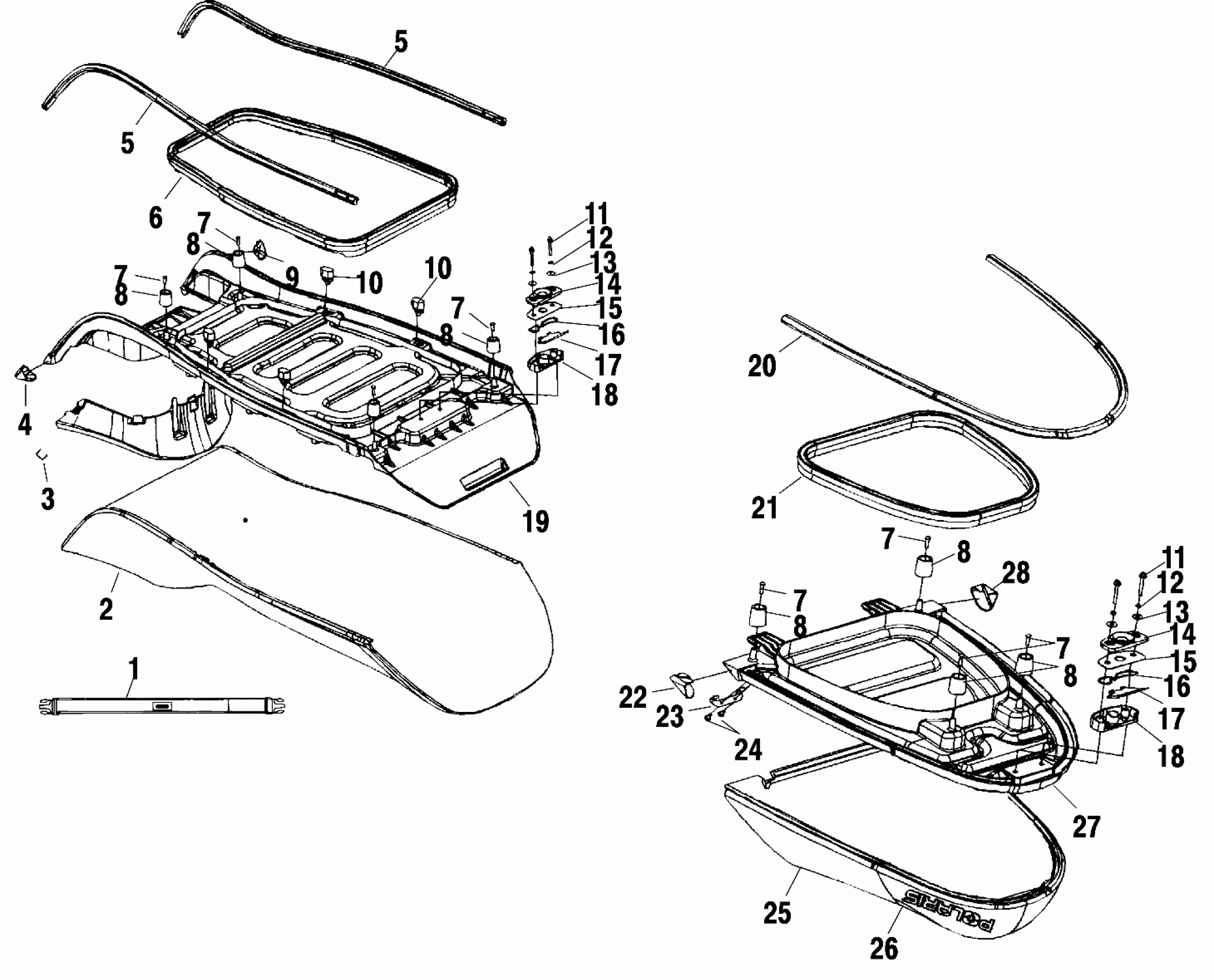

Polaris GENESIS I - W015098D SEAT - W015098D (4964876487A012) Diagram

#

Description
Price

1

ASM-STRAP,W/CLIPS,BLACK

2682566-070

Unavailable

2

COVER-SEAT,FRNT,BRT SILVER

2682686-320

$180.16

3

STAPLE-1/2 X 1/4-SS [No Longer Available]

9810357

Unavailable

4

SHIELD-SEAT,FRONT,RH,P320

5433113-320

$2.62

5

TRIM,SEAT,GENESIS FNT

5521520

$23.08

5

TRIM,SEAT,GENESIS FNT

5521520

$23.08

6

SEAL-SEAT,FRONT

5521483

$57.73

7

SCREW1/4-14X1/2PH(10)

7517732

Unavailable

7

SCREW1/4-14X1/2PH(10)

7517732

Unavailable

7

SCREW1/4-14X1/2PH(10)

7517732

Unavailable

7

SCREW1/4-14X1/2PH(10)

7517732

Unavailable

7

SCREW1/4-14X1/2PH(10)

7517732

Unavailable

7

SCREW1/4-14X1/2PH(10)

7517732

Unavailable

8

BUMPER-SEAT

5521533

Unavailable

8

BUMPER-SEAT

5521533

Unavailable

8

BUMPER-SEAT

5521533

Unavailable

8

BUMPER-SEAT

5521533

Unavailable

8

BUMPER-SEAT

5521533

Unavailable

8

BUMPER-SEAT

5521533

Unavailable

9

SHIELD-SEAT,FRONT,LH,P320

5433112-320

Unavailable

10

BUMPER-SEAT

5521490

Unavailable

10

BUMPER-SEAT

5521490

Unavailable

11

BOLT(10)

7516806

Unavailable

11

BOLT(10)

7516806

Unavailable

12

WASHER, LOCK, S.S.(10)

7555838

Unavailable

12

WASHER, LOCK, S.S.(10)

7555838

Unavailable

13

WASHER, FLAT, S.S.(10)

7555839

Unavailable

13

WASHER, FLAT, S.S.(10)

7555839

Unavailable

14

PLATE,LATCH,BOT.SEAT BASE

5431357

$5.71

14

PLATE,LATCH,BOT.SEAT BASE

5431357

$5.71

15

PLATE,SEATBASE LATCH

5211314

$4.92

15

PLATE,SEATBASE LATCH

5211314

$4.92

16

SPRING,SEATBASE LATCH

7042036

Unavailable

16

SPRING,SEATBASE LATCH

7042036

Unavailable

17

HANDLE, SEAT

5431358

Unavailable

17

HANDLE, SEAT

5431358

Unavailable

18

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

18

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

19

ASM-SEAT,GEN FRNT,BRT SILVER (Incl. 2-18)

2682761-320

Unavailable

20

TRIM,SEAT,GENESIS REAR

5521522

$25.40

21

SEAL-SEAT,REAR

5521484

Unavailable

22

SHIELD-SEAT,REAR,RH,BLACK

5433115-070

$3.33

23

CAP-SEAT,END,BASIC,BLACK

5433376-070

$24.60

24

CLIP,XMAS TREE

5432966

$1.19

25

COVER-SEAT,REAR,BLACK

2682427-303

Unavailable

26

KIT,DECAL APPLIC.,VINYL (For Seat Decals)

2200891

Unavailable

26

Decal - "POLARIS", Seat (See Decals Pg. A9, Ref. 3)

----

Unavailable

27

ASM-SEAT,REAR,GEN,BLK [Item NotAvailable] (Incl. 7,8,11-18,20-26,28)

2682762-303

Unavailable

28

SHIELD-SEAT,REAR,LH,BLACK

5433114-070

$3.33
