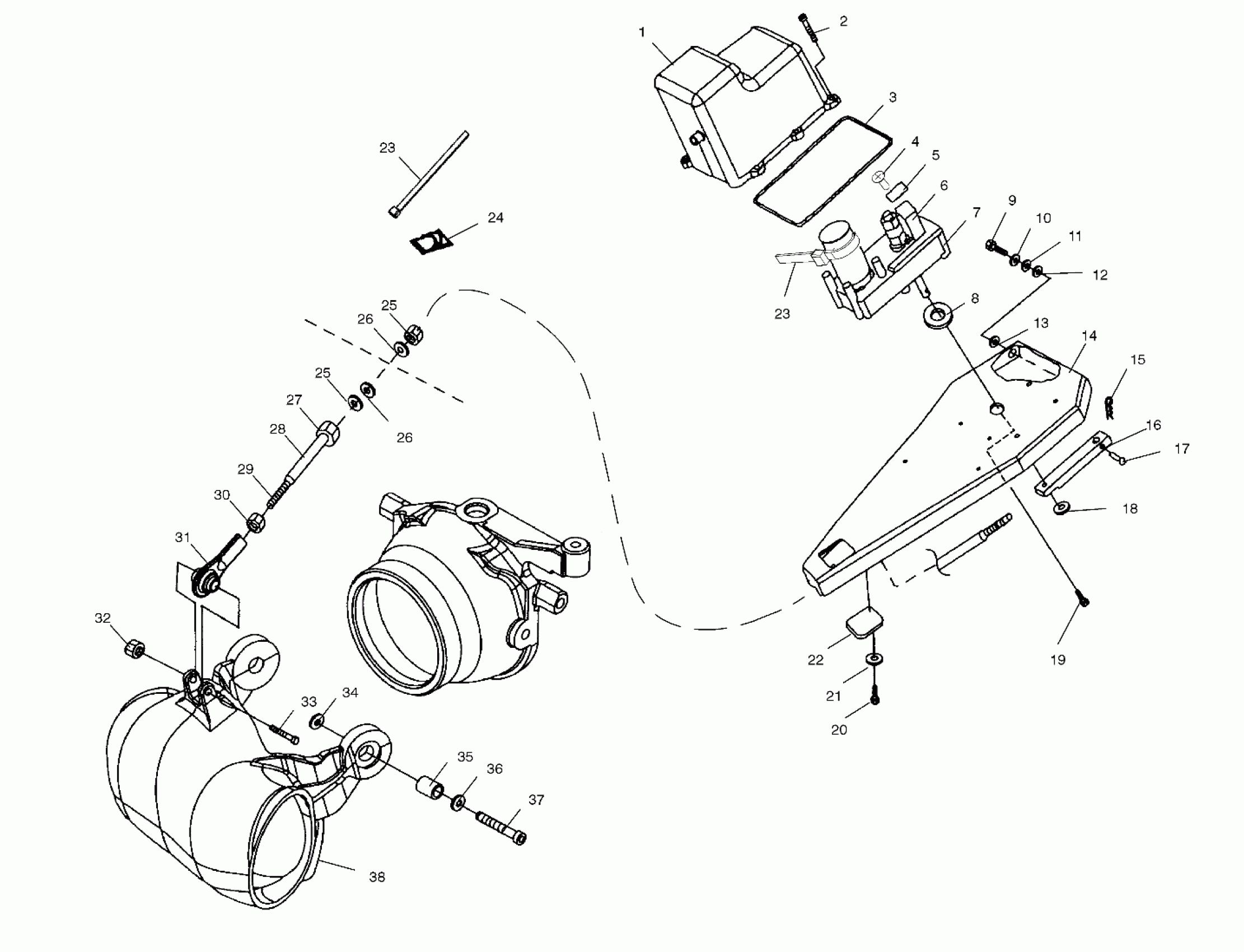

Polaris GENESIS I - W015098D REVERSE - W015098D (4964876487B004) Diagram

#

Description
Price

1

COVER-MOTOR,REVERSE

5433506

$19.68

2

SCREW(10)

7512052

Unavailable

3

O-RING-COVER,REVERSE

5411767

Unavailable

4

SCR,MACH,4-40X1.5(10)

7517768

Unavailable

5

PLATE,SWITCH,REV W/BUSHING

5244294

Unavailable

6

SWITCH,ASM,REV LIMIT

2410185

Unavailable

7

MOTOR,GEAR SPIREX ASM.

2410147

$249.67

8

SEAL, OIL

3610042

Unavailable

9

SCREW (10)

7517644

Unavailable

10

WASHER, LOCK(10)

7552613

Unavailable

11

WASHER, FLAT, S.S.(10)

7555839

Unavailable

12

WASHER,RUBBER(10)

7555870

$0.40

13

WASHER,(10)

5811440

$2.06

14

BRKT,MOTOR,REV.

5243585

$95.39

15

PIN, COTTER(10)

7661010

$1.19

16

LINKAGE,REVERSE

5132362

Unavailable

17

PIN,ROLL,.187X.75-SS

7661083

Unavailable

18

WASHER, FLAT, S.S.(10)

7555837

$1.59

19

SCREW(10)

7511872

$2.54

20

SCREW(10)

7512056

Unavailable

21

WASHER, LOCK(10)

7552615

Unavailable

22

PLATE,CABLE

5240257

Unavailable

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

ANCHOR, CABLE TIE(10)

7080464

Unavailable

25

Nut

7547001

$1.90

25

Nut

7547001

$1.90

26

Washer

1860103

$3.33

26

Washer

1860103

$3.33

27

SEAL,ROD

5411819

$2.94

28

CABLE,REV,SPIREX

7080828

Unavailable

29

SEAL,ROD

5411818

Unavailable

30

NUT, S.S.(10)

7542150

Unavailable

31

ROD,END,1/4-28X.375

7061062

$27.94

32

NUT,NYLOK,S.S.(10)

7542133

Unavailable

33

SCREW1/4-20X1.75HX(10)

7517749

$2.06

34

WASHER(10)

7555866

Unavailable

35

Collar

5020683

$6.59

36

WASHER,FLAT,S.S.(10)

7555874

$2.38

37

BOLT, S.S.(10)

7515368

Unavailable

38

GATE,REVERSE,DIRECTIONAL Substituted by 5434049

5631036

Unavailable
