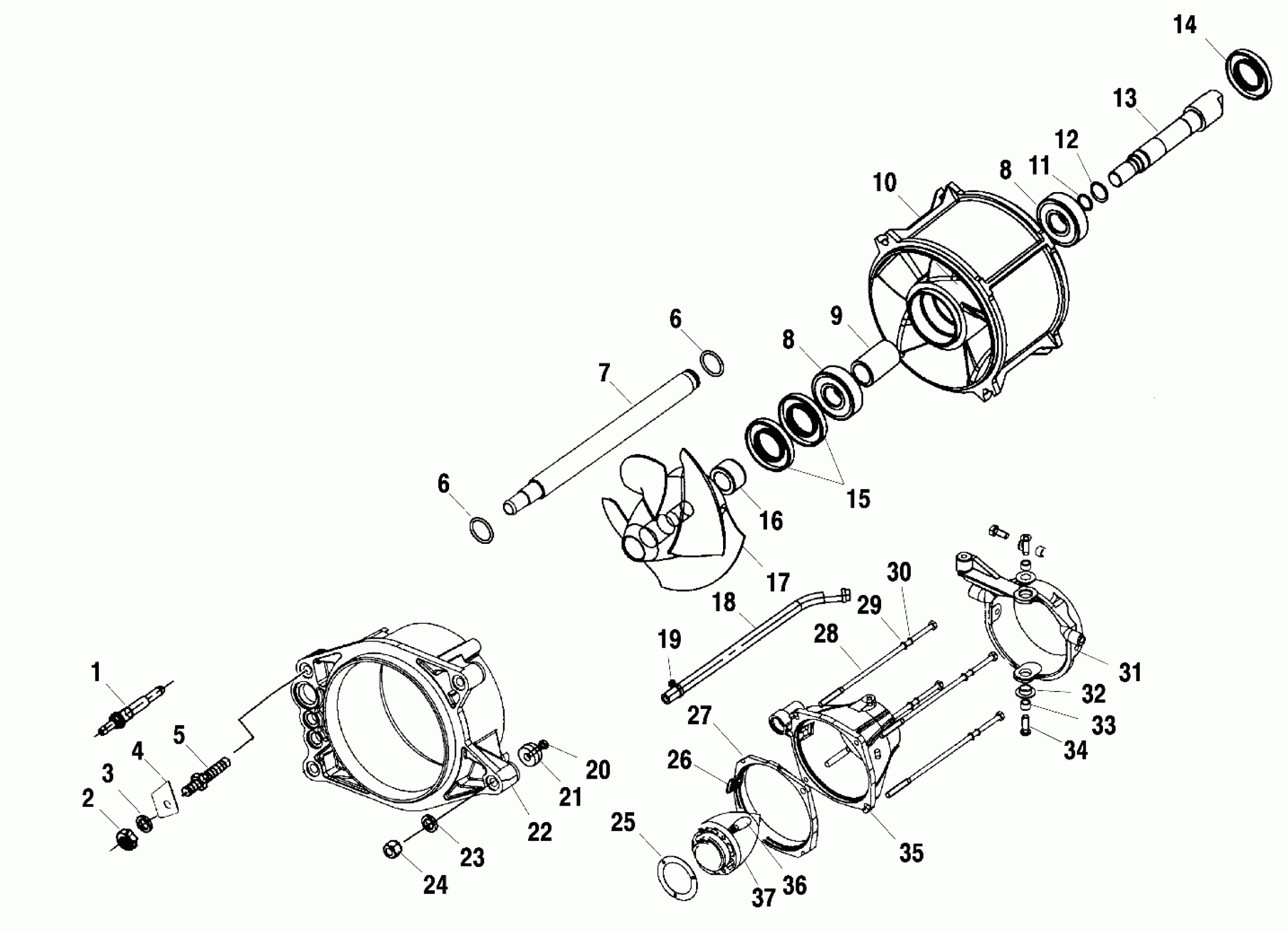

Polaris GENESIS I - W015098D PROPULSION - W015098D (4964876487B003) Diagram

#

Description
Price

1

PIPE,WATER,BILGE Substituted by 5020835

5431990

$49.59

2

NUT, HEX, S.S.,(10)

7542454

Unavailable

3

WASHER, LOCK, S.S.(10)

7552607

$1.39

4

BRKT,STEERING CABLE NUT

5244556

Unavailable

5

STUD,MOUNT,PUMP,LONG INT.

5132111

Unavailable

6

O RING,(10)

5410735

$0.79

6

O RING,(10)

5410735

$0.79

7

PIPE,WATER,ENGINE,7.4 INCH

5433334

$22.06

8

Bearing

3514008

Unavailable

8

Bearing

3514008

Unavailable

9

Spacer

5010294

Unavailable

10

STATOR,SS,ASIA TREND

5132088

$364.99

11

O-RING,(10)

5410817

Unavailable

12

O-RING(10)

5410818

$0.79

13

SHAFT-STUB

5132674

$47.62

14

O-RING(10)

5410819

$0.79

15

SEAL,BRG,STATOR

3610043

Unavailable

16

Spacer, Impeller

5010295

Unavailable

17

IMPELLER,17-23,3 BLADE,SS

5131366

Unavailable

18

HOSE,WATER

8450054-100

Unavailable

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

SCREW(10)

7522019

$0.95

21

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

22

HSG,PUMP,W/RING,INT STUD

5131574

Unavailable

23

Washer

7555966

$2.62

24

NUT,HEX,S.S.(10)

7542455

Unavailable

25

SEAL,TAILCONE

5811984

Unavailable

26

SCREEN,ENG.INLET

5431523

Unavailable

27

WEDGE,PUMP,0X4,MOLDED

5432841

Unavailable

28

Screw

7517654

$17.89

29

WASHER, FLAT, S.S.,(10)

7555835

$0.69

30

WASHER, LOCK, S.S.(10)

7552610

Unavailable

31

NOZZLE,STRG,SLT

5130999

Unavailable

32

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

33

Collar

5130938

Unavailable

34

BOLT, S.S.(10)

7515366

Unavailable

35

NOZZLE ASM,0X4 WEDGE

1350038

$204.99

36

Cone, Pump

5431519

Unavailable

37

SCREW(10)

7512064

Unavailable
