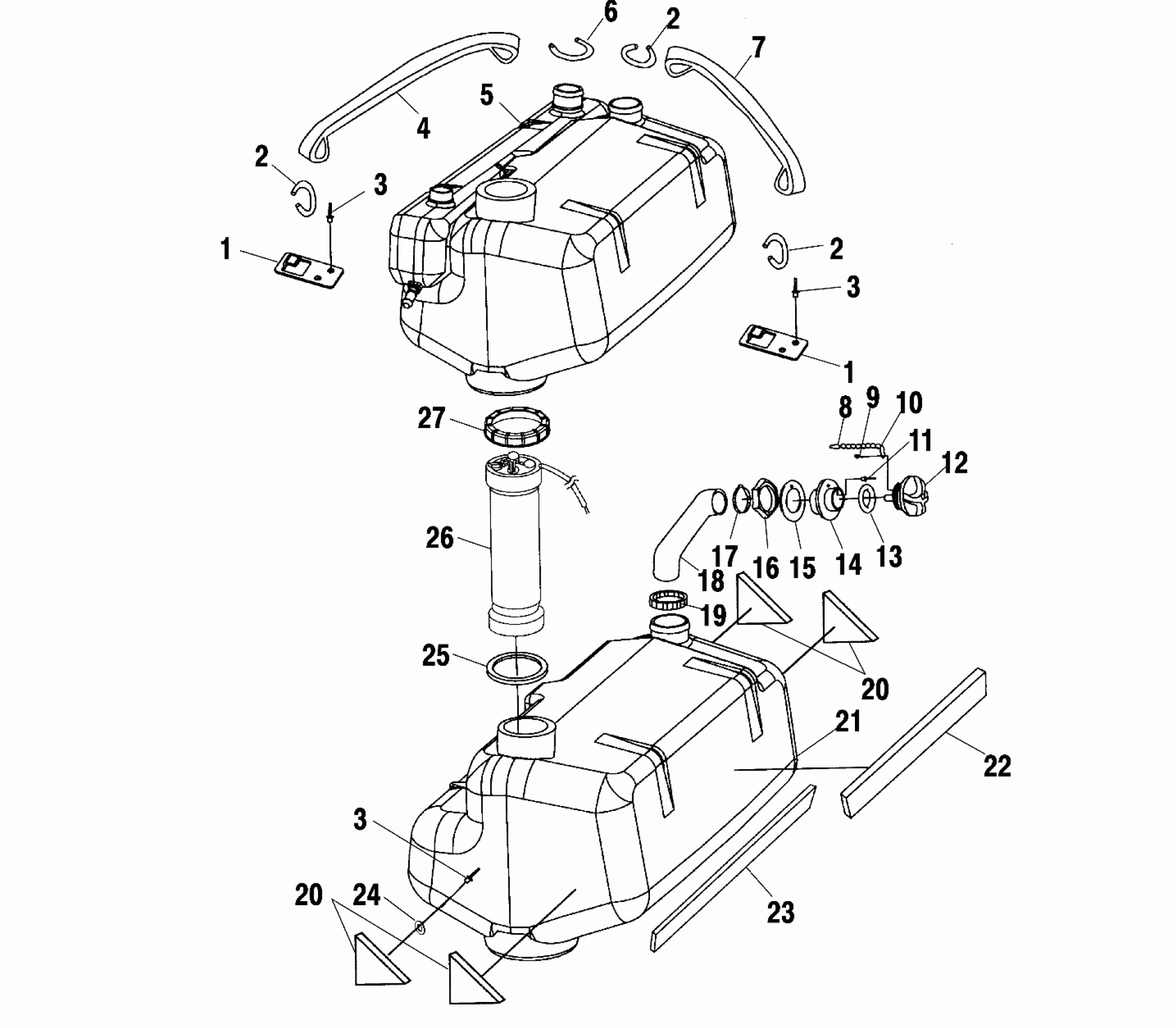

Polaris GENESIS I - W015098D FUEL TANK - W015098D (4964876487A010) Diagram

#

Description
Price

1

CLIP,STRAP

5240134

Unavailable

1

CLIP,STRAP

5240134

Unavailable

2

HOOK,STRAP,NARROW

5243775

$4.92

2

HOOK,STRAP,NARROW

5243775

$4.92

2

HOOK,STRAP,NARROW

5243775

$4.92

3

RIVET(50)

7621479

$1.98

3

RIVET(50)

7621479

$1.98

3

RIVET(50)

7621479

$1.98

4

STRAP-BATTERY

5430621

Unavailable

5

Tank, Oil (See Oil Tank Pg. A13)

----

Unavailable

6

HOOK,STRAP,180 DEG RETURN

5243776

$2.46

7

STRAP, RUBBER

5410608

$9.70

8

Coupling

7080442

Unavailable

9

SCREW(10)

7511873

Unavailable

10

CHAIN,BEAD,FUELCAP RETAIN.

7080710

Unavailable

11

RIVET(50)

7621229

Unavailable

12

CAP,FUEL,RATCHET,ASM. Substituted by 2201745

2520177

Unavailable

13

SEAL,FUEL CAP

5411305

Unavailable

14

INLET,FUEL

5433553

$13.89

15

SEAL,FUEL INLET

5811492

$20.59

16

NUT,INLET,FUEL

5433621

$17.44

17

CLAMP,HOSE,SS.

7080766

$2.06

18

HOSE-FILL,FUEL

5411546

$61.90

19

CLAMP, HOSE, S.S.(10)

7080451

$7.14

20

PAD,REAR,FUELTANK

5811999

$3.97

20

PAD,REAR,FUELTANK

5811999

$3.97

21

TANK,FUEL,17 GAL,DFI

5433256

Unavailable

22

PAD,TANK,FUEL(SIDE)

5811901

Unavailable

23

PAD-EVA,26"X5"X.22

5812152

Unavailable

24

WASHER, FLAT, S.S.(10)

7555837

$1.59

25

GASKET-DFI FUEL PUMP

5411636

Unavailable

26

PUMP,FUEL,DFI,ELECTRIC

2410129

Unavailable

27

NUT-DFI FUEL PUMP

5433259

Unavailable
