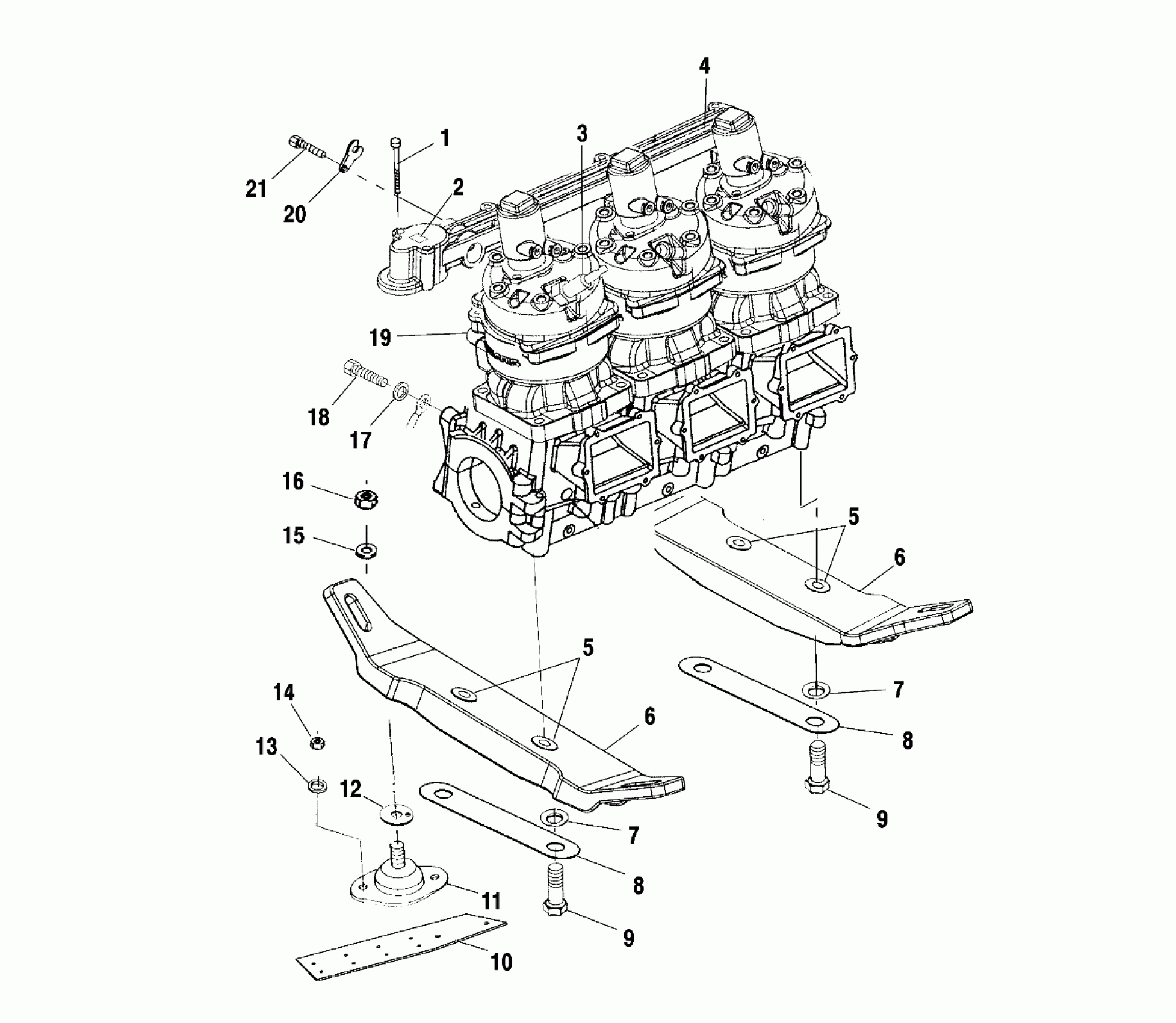

Polaris GENESIS I - W015098D ENGINE MOUNTING - W015098D (4964876487B014) Diagram

#

Description
Price

1

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

2

DECAL,SPARKPLUG REC.

7077026

$2.94

3

Spark Plug (See Manifold/Ignition Pg. C2, Ref. 19)

----

Unavailable

4

Decal - Warning (See Manifold/Ignition Pg. C2, Ref. 2)

----

Unavailable

5

WASHER-FLAT,.44X1.25X.10,SS

7556184

$3.81

5

WASHER-FLAT,.44X1.25X.10,SS

7556184

$3.81

6

PLATE-FRONT MOUNT W/WASHER

5631166

$139.68

6

PLATE-FRONT MOUNT W/WASHER

5631166

$139.68

7

WASHER-FLAT,.44X.94X.06,18-8SS

7556170

Unavailable

7

WASHER-FLAT,.44X.94X.06,18-8SS

7556170

Unavailable

8

LOCK-MOUNT PLATE

5245460

$13.10

8

LOCK-MOUNT PLATE

5245460

$13.10

9

SCREW, SS.

7517330

Unavailable

9

SCREW, SS.

7517330

Unavailable

10

PLATE,REPAIR,GEN.FRT MNT

5244508

Unavailable

11

MOUNT-ENGINE,LORD,FLAT,50-520

3021253

$65.87

12

SHIM,ENG.MT.(PWC)

5211727

Unavailable

13

WASHER, LOCK, S.S.(10)

7552610

Unavailable

14

NUT

7542334

$1.19

15

WASHER, FLAT, S.S.(10)

7555848

Unavailable

16

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

17

WASHER,LOCK,SS.

7556055

Unavailable

18

BOLT,SS.

7517497

$3.97

19

SHT.BLK,KIT,W120-DFI-02A The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly.

2201705

Unavailable

20

CLIP,RETAINER,TEMP SWITCH

5244176

$4.76

21

BOLT,(1)

7516603

$10.32
