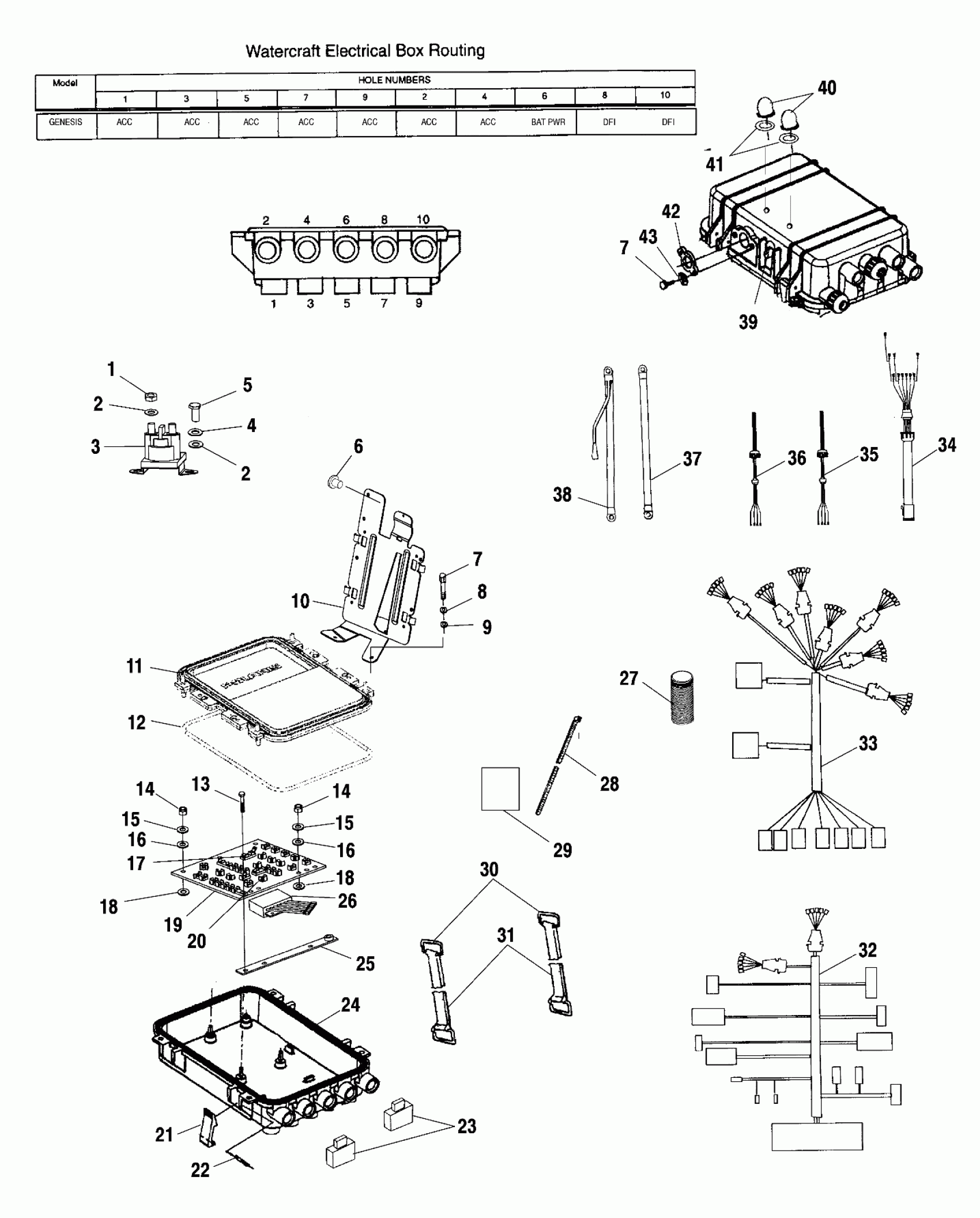

Polaris GENESIS I - W015098D ELECTRICAL BOX - W015098D (4964876487B011) Diagram

#

Description
Price

1

Nut

7546705

$4.76

2

Washer

7555882

$2.06

2

Washer

7555882

$2.06

3

Solenoid, Starter

4010858

Unavailable

4

Washer, Lock

7552613

Unavailable

5

Screw

7517717

$1.11

6

Bumper, Rubber

5411821

$1.13

7

Screw

7515113

Unavailable

7

Screw

7515113

Unavailable

8

Washer, Lock

7555838

Unavailable

9

Washer, Flat

7555839

Unavailable

10

Mount, Ignition Box

1820749

$83.46

11

Cover, Electrical Box

5433119

Unavailable

12

Seal, Plastic

5432569

Unavailable

13

Screw

7512072

$0.40

14

Nut

7547036

$1.59

15

Washer, Lock

7552615

Unavailable

16

Washer, Flat

7555837

$1.59

17

Fuse, 1/4 Amp

4060111

Unavailable

18

Washer, Dish, Rubber

7555870

$0.40

18

Washer, Dish, Rubber

7555870

$0.40

19

Asm., Terminal Board

2410155

Unavailable

20

Fuse, 3 Amp

4060161

Unavailable

21

Latch

5432503

$102.38

22

Pin, Latch

5333544

$10.46

23

Breaker, Circuit, 15 Amp

2434011

$20.48

24

Asm., Electrical Box Accessory (Incl. 11,12,21,22) (Incl. 11,12,21,22)

2632140

Unavailable

25

Plate, Bottom

5244372

$11.51

26

Cut-Off, Start/Stop

4010346

Unavailable

27

Conduit

5521286-2.5

Unavailable

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

Anchor, Cable Tie

7080464

Unavailable

30

D-Hook

5224472

Unavailable

31

Strap, Battery Holddown

5411456

Unavailable

32

Asm., Harness, Engine

2460896

Unavailable

33

Harness, Wire, Main

2460805

Unavailable

34

Harness, RVS

2460796

Unavailable

35

Wire, Power

2460803

Unavailable

36

Wire, Power

2460804

Unavailable

37

Cable, Solenoid/Starter

4010237

Unavailable

38

Cable, Battery/Solenoid

4010288

$53.17

39

Decal - "Reset Electrical System"

7077691

Unavailable

40

Boot, Threaded

7080461

$13.99

41

O-Ring

5411491

$1.03

42

Plate, Stator

5432574

$6.59

43

Washer, Flat

7555836

$3.99
