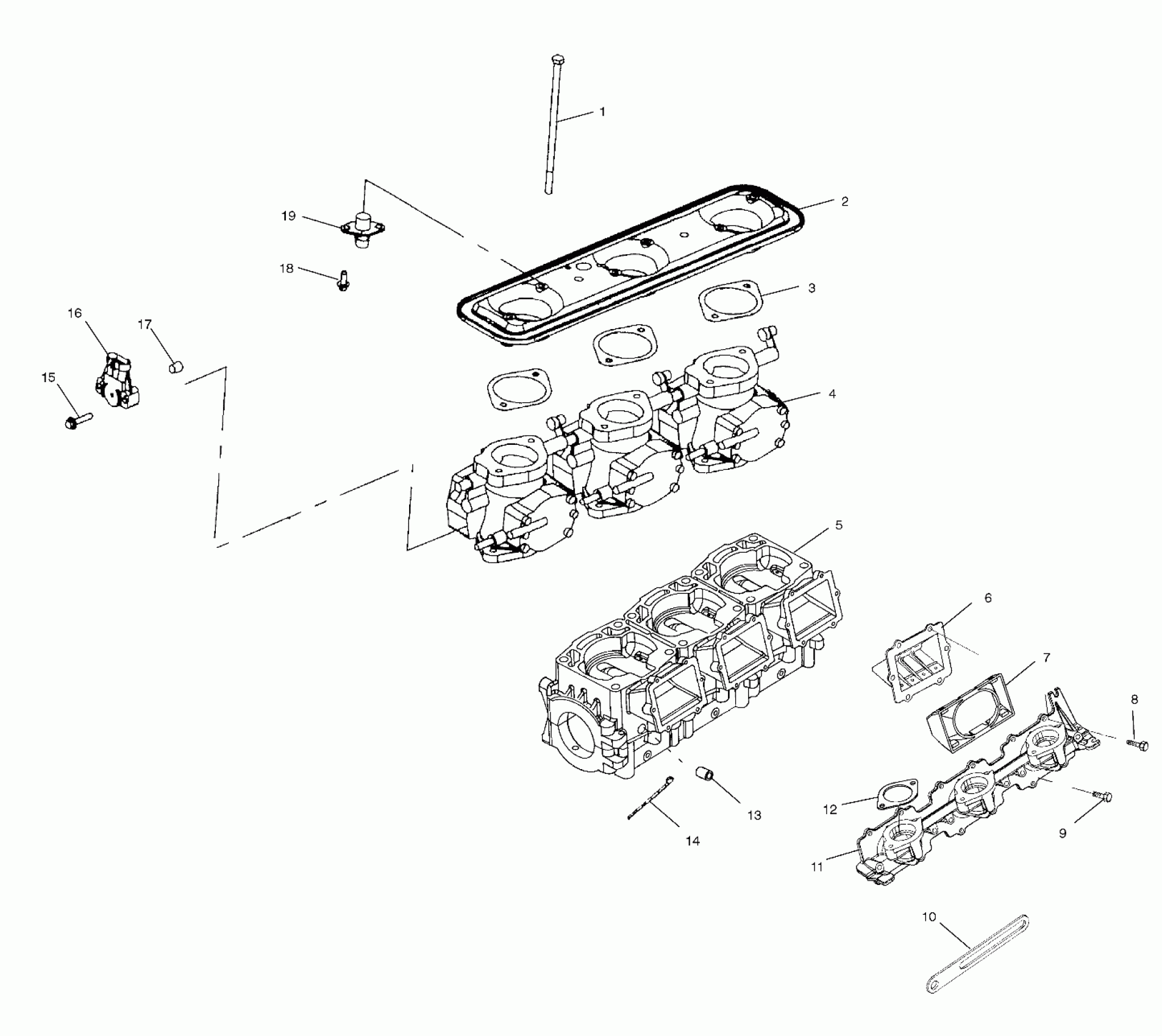

Polaris GENESIS FICHT - B995094 THROTTLE BODY - I995094 (4951485148C005) Diagram

#

Description

Price

1

SCR-M6X1.00X145-HX/FL-SS

7516816

$23.99

2

BASE-INTAKE SILENCER TRIPLEDFI

5630907

Unavailable

3

GASKET,CARB.,UPPER

5830062

Unavailable

4

THROTTLE BODY,DFI,ASSEMBLY

1253255

Unavailable

5

Kit - Crankcase (See Crankcase Pg. C3, Ref. 1)

-------

Unavailable

6

REED BLOCK ASM,TRIPLE

1201595

Unavailable

7

STUFFER-REED BLOCK

5432162

Unavailable

8

BOLT(10)

7516807

Unavailable

9

BOLT(10)

7516814

Unavailable

10

RETAINER,SS.

7080654

$18.32

11

ADAPTOR,CARB,3 CYL.

5630582

Unavailable

12

GASKET,CARB.

5830043

Unavailable

13

CAP,PULSE FITTING

5411736

Unavailable

14

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

15

SCREW(10)

7517614

Unavailable

16

SENSOR-THROTTLE POSITION,DFI Substituted by 2410183

2410127

Unavailable

17

CAP,THROTTLE POSITION SENSOR

5433145

Unavailable

18

BOLT,(1)

7516603

$10.39

19

SENSOR-AIR TEMP,DFI

2410126

Unavailable
