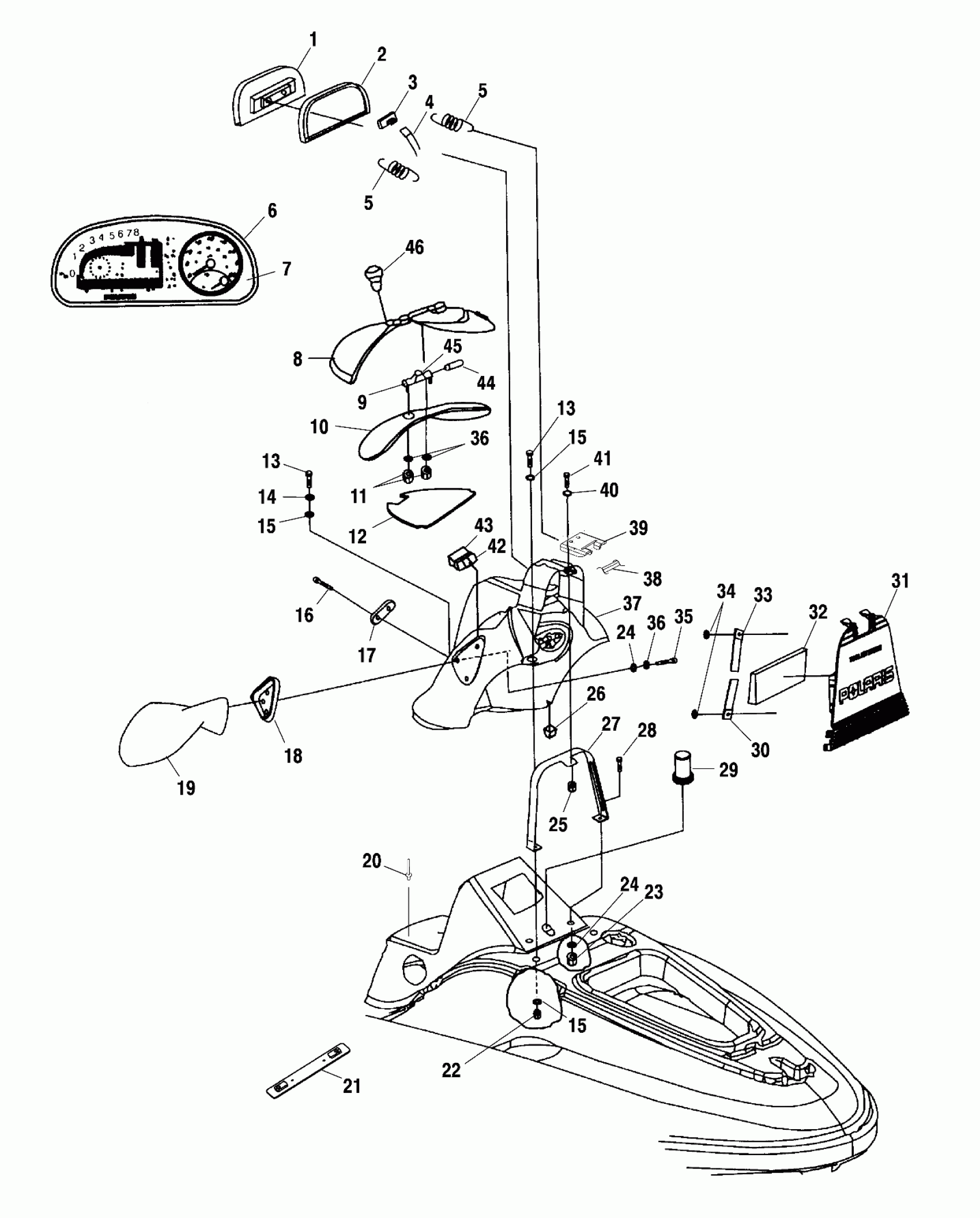

Polaris GENESIS FICHT - B995094 SHROUD - B995094 (4951485148A005) Diagram

#

Description
Price

1

GAUGE,MFD,ANALOG/DIGITAL

3280292

$694.99

2

GASKET-MFI

5411738

$5.16

3

CONNECTOR-DEUTCHE,4PIN W/PLUGS

4010281

$17.30

4

PITOT LINE,90DEG FORMED,235CM. Substituted by 8450070-277

8450070-235

$24.25

5

SPRING,MOUNTING,MFI

7041839

$2.38

5

SPRING,MOUNTING,MFI

7041839

$2.38

6

MFI,BUTTON REPLACEMENT,KIT

2201593

$25.30

7

BEZEL-MFI,OVERLAY

3280342

$23.81

8

LID,CONSOLE,AGEAN MET Substituted by 2202001

5433022-285

Unavailable

9

SPRING-TORSION,CONSOLE,SS Substituted by 7042007

7041754

Unavailable

10

SEAL,LID,CONSOLE

5521478

$9.05

11

NUT, 6 MM.,S.S.(10)

7546705

$4.76

12

PAD,CONSOLE

5811783

Unavailable

13

SCREW(10)

7517668

$2.06

13

SCREW(10)

7517668

$2.06

14

WASHER,LOCK,SS.

7556055

Unavailable

15

WASHER, FLAT, S.S.(10)

7555831

Unavailable

15

WASHER, FLAT, S.S.(10)

7555831

Unavailable

15

WASHER, FLAT, S.S.(10)

7555831

Unavailable

16

SCREW,SS.

7516609

Unavailable

17

PLATE,HOOK,CONSOLE

5211865

Unavailable

18

GASKET-MIRROR,LH

5411557

$4.92

18

GASKET-MIRROR,RH

5411558

$4.92

19

MIRROR,STRBD,AGEAN,GREEN

2631973-284

Unavailable

19

MIRROR,PORT,AGEAN GREEN

2631972-284

Unavailable

20

RIVET-POP (50)

7661042

$1.11

21

MOUNT,SHROUD

1820725

$14.76

22

NUT,HEX,(10)

7546804

$1.19

23

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

24

WASHER, FLAT, S.S.(10)

7555839

Unavailable

24

WASHER, FLAT, S.S.(10)

7555839

Unavailable

25

NUT, HEX, S.S.(10)

7541931

$5.99

26

BUMPER,CORNER,SHROUD

5242979

Unavailable

27

BRACKET-SUPPORT,SHROUD Substituted by 5244673

5243735

Unavailable

28

BOLT(10)

7516717

$3.33

29

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

30

STRAP-TOOL KIT,LOWER

2690151

Unavailable

31

COVER-WIRE,SHROUD,BASIC AG GRN

5433210-284

$22.92

32

Kit, Tool (See Tool Kit Pg. C10)

----

Unavailable

33

STRAP-TOOL KIT,UPPER

2690150

Unavailable

34

RING-RETAINING,.25 STUD

7710517

$1.59

35

SCREW, S.S.(10)

7516805

$0.71

36

WASHER, LOCK(10)

7552613

Unavailable

36

WASHER, LOCK(10)

7552613

Unavailable

37

SHROUD,STRNG,AGEANGRNMET Substituted by 5434210-356

5433015-285

Unavailable

38

GASKET-DOOR/SHROUD CUSHION

5521539

$2.97

39

PLATE-LATCH,RECEIVER

5243019

Unavailable

40

WASHER, FLAT, S.S.(10)

7555837

$1.59

41

BOLT, SS.(10)

7512045

$4.99

42

GASKET,HOOK,CONSOLE

5811552

$1.43

43

HOOK,CONSOLE,LATCH 1/4 TURN

5433266

Unavailable

44

PIN-HINGE,CONSOLE

5333698

Unavailable

45

HINGE-CONSOLE,3/16 PIN

5433384

Unavailable

46

LATCH,ASM,CONSOLE1/4 TURN

2632234

$36.83
