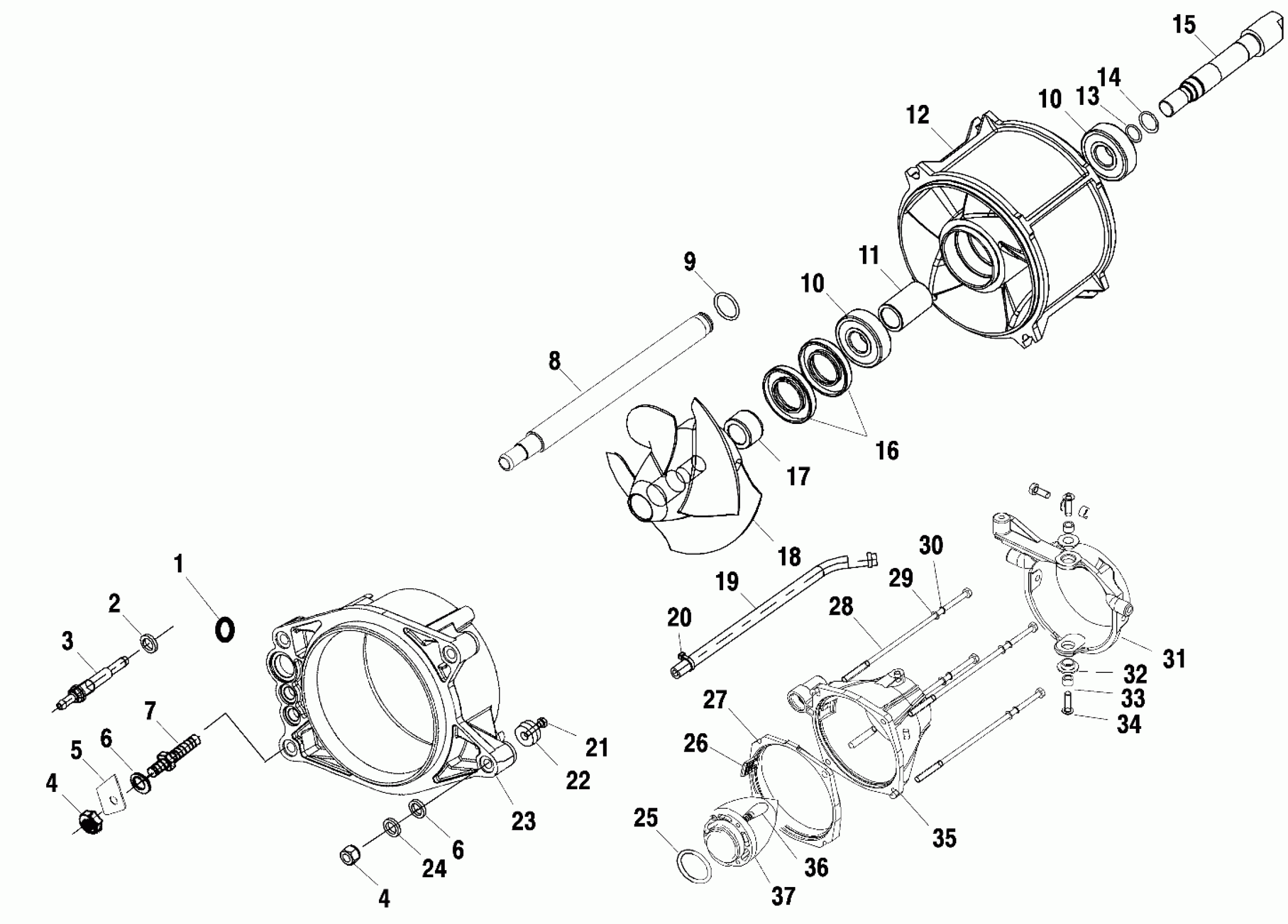

Polaris GENESIS FICHT - B995094 PROPULSION - I995094 (4951485148B006) Diagram

#

Description
Price

1

SEAL,WATER PIPE

5411107

Unavailable

2

SEAL,SIPHON TUBE

5411016

Unavailable

3

PIPE,WATER,BILGE Substituted by 5020835

5431990

$49.59

4

NUT,HEX,S.S.(10)

7542455

Unavailable

4

NUT,HEX,S.S.(10)

7542455

Unavailable

5

BRKT,STRG.CABLE

5241741

Unavailable

6

WASHER,PUMPSTUD,SEAL

7555941

$7.14

6

WASHER,PUMPSTUD,SEAL

7555941

$7.14

7

STUD,MOUNT,PUMP,1.38 INT.

5132355

Unavailable

8

PIPE,WATER,ENGINE,7.4 INCH

5433334

$22.06

9

O RING,(10)

5410735

$0.79

10

Bearing

3514008

Unavailable

10

Bearing

3514008

Unavailable

11

Spacer

5010294

Unavailable

12

STATOR,SS,ASIA TREND

5132088

$364.99

13

O-RING,(10)

5410817

Unavailable

14

O-RING(10)

5410818

$0.79

15

SHAFT, STUB Substituted by 5132674

5020697

$47.62

16

SEAL,BRG,STATOR

3610043

Unavailable

17

Spacer, Impeller

5010295

Unavailable

18

IMPELLER-3 BLADE,17-21,.460,SS

5132222

Unavailable

19

HOSE,WATER

8450054-100

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

SCREW(10)

7522019

$0.95

22

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

23

HSG,PUMP,W/RING,INT STUD

5131574

Unavailable

24

Washer

7555966

$2.62

25

O-RING(10)

5410819

$0.79

26

SCREEN,ENG.INLET

5431523

Unavailable

27

WEDGE,PUMP,0X4,MOLDED

5432841

Unavailable

28

Screw

7517654

$17.89

29

WASHER, FLAT, S.S.,(10)

7555835

$0.69

30

WASHER, LOCK, S.S.(10)

7552610

Unavailable

31

NOZZLE,STRG,SLT

5130999

Unavailable

32

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

33

Collar

5130938

Unavailable

34

BOLT, S.S.(10)

7515366

Unavailable

35

NOZZLE ASM,0X4 WEDGE

1350038

$204.99

36

Cone, Pump

5431519

Unavailable

37

SCREW(10)

7512064

Unavailable
