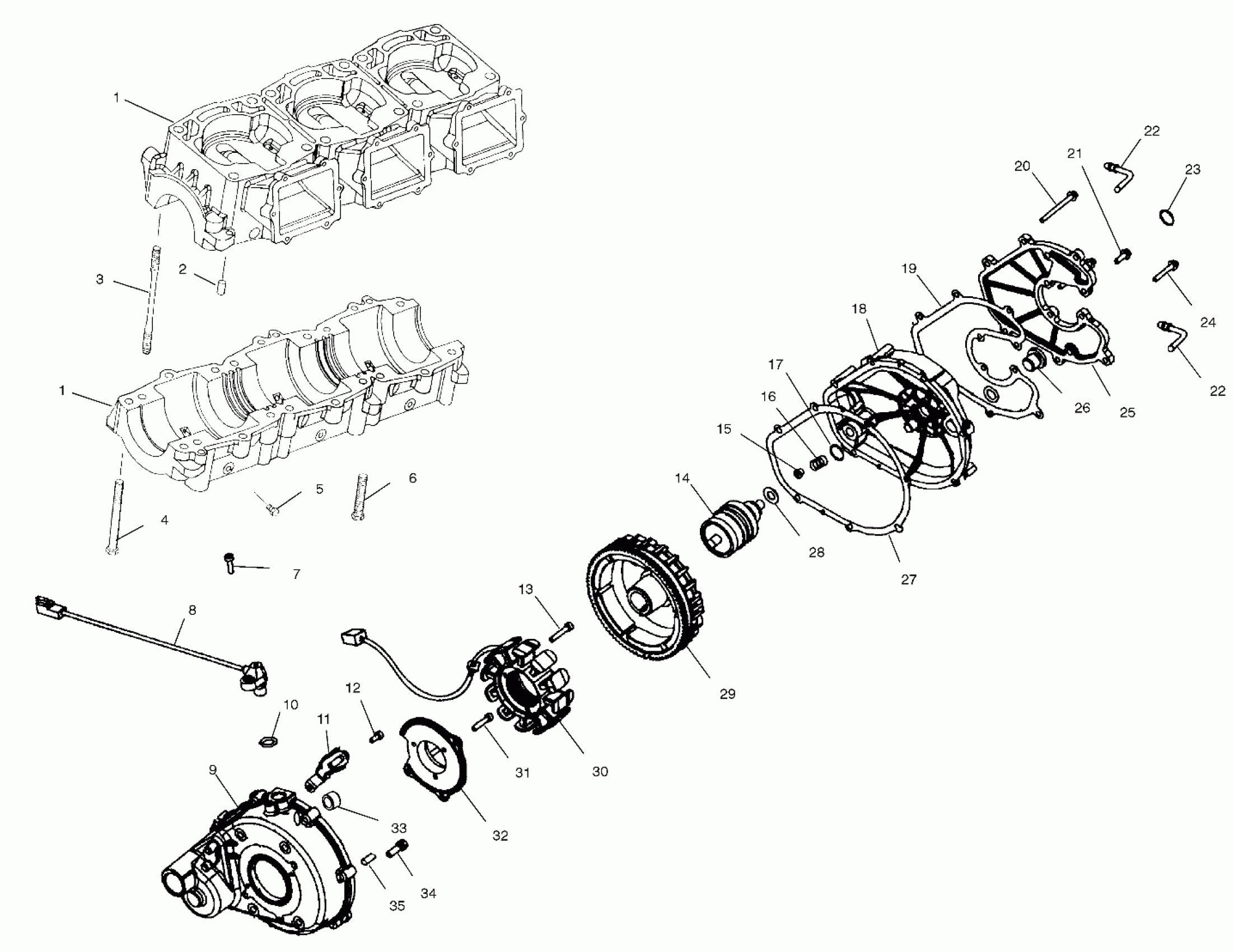

Polaris GENESIS FICHT - B995094 CRANKCASE - I995094 (4951485148C003) Diagram

#

Description
Price

1

CRANKCASE 1200 PWC,KIT (Incl. 6-2)

2201562

Unavailable

1

CRANKCASE 1200 PWC,KIT (Incl. 6-2)

2201562

Unavailable

2

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

3

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

4

BOLT, S.S

7516913

Unavailable

5

PLUG Substituted by 7052311

7051529

$15.99

6

SCREW Substituted by 7516720

7517628

Unavailable

7

SCREW,(10)

7517619

Unavailable

8

SENSOR-CRANK POSITION,DFI

2410128

Unavailable

9

FLYWHEEL,HOUSING,DFI,MOD (Incl. 33,35)

1202023

Unavailable

10

O-Ring

5411564

$4.03

11

CLAMP-STATOR WIRES

5243231

Unavailable

12

SCREW,(10)

7517431

$5.59

13

Screw

7517602

$4.99

14

BENDIX

4060119

Unavailable

15

BUSHING,PLASTIC

3574214

Unavailable

16

Spring

7041457

Unavailable

17

Bushing

3569806

Unavailable

18

COVER,FLYWHEEL,ASM,DFI

1201911

Unavailable

19

GASKET-WATER JACKET COVER Substituted by 5812011

5811795

Unavailable

20

Screw

7517662

Unavailable

21

BOLT(10)

7516809

Unavailable

22

FITTING,1/4"HOSE

7052156

$30.00

22

FITTING,1/4"HOSE

7052156

$30.00

23

O-Ring

5411293

Unavailable

24

BOLT(10)

7516806

Unavailable

25

COVER-WATER JACKET,DFI

5630981

Unavailable

26

PLUG-TIMING HOLE,3/4X16,NYLON

5433130

Unavailable

27

GASKET,FLYWHEEL COVER

5811550

Unavailable

28

WASHER(10)

7555908

$3.17

29

FLYWHEEL-3 CYL PWC,DFI

4010168

Unavailable

30

STATOR,IGN,DFI

4010320

Unavailable

31

SCR,M6X100X25,SOC CP LH Substituted by 7517620

7517788

Unavailable

32

PLATE,STATOR MNT,OMC,DFI

5631069

Unavailable

33

Bushing

3569805

Unavailable

34

BOLT(10)

7516723

Unavailable

35

Pin, Dowel

7663002

$4.79
