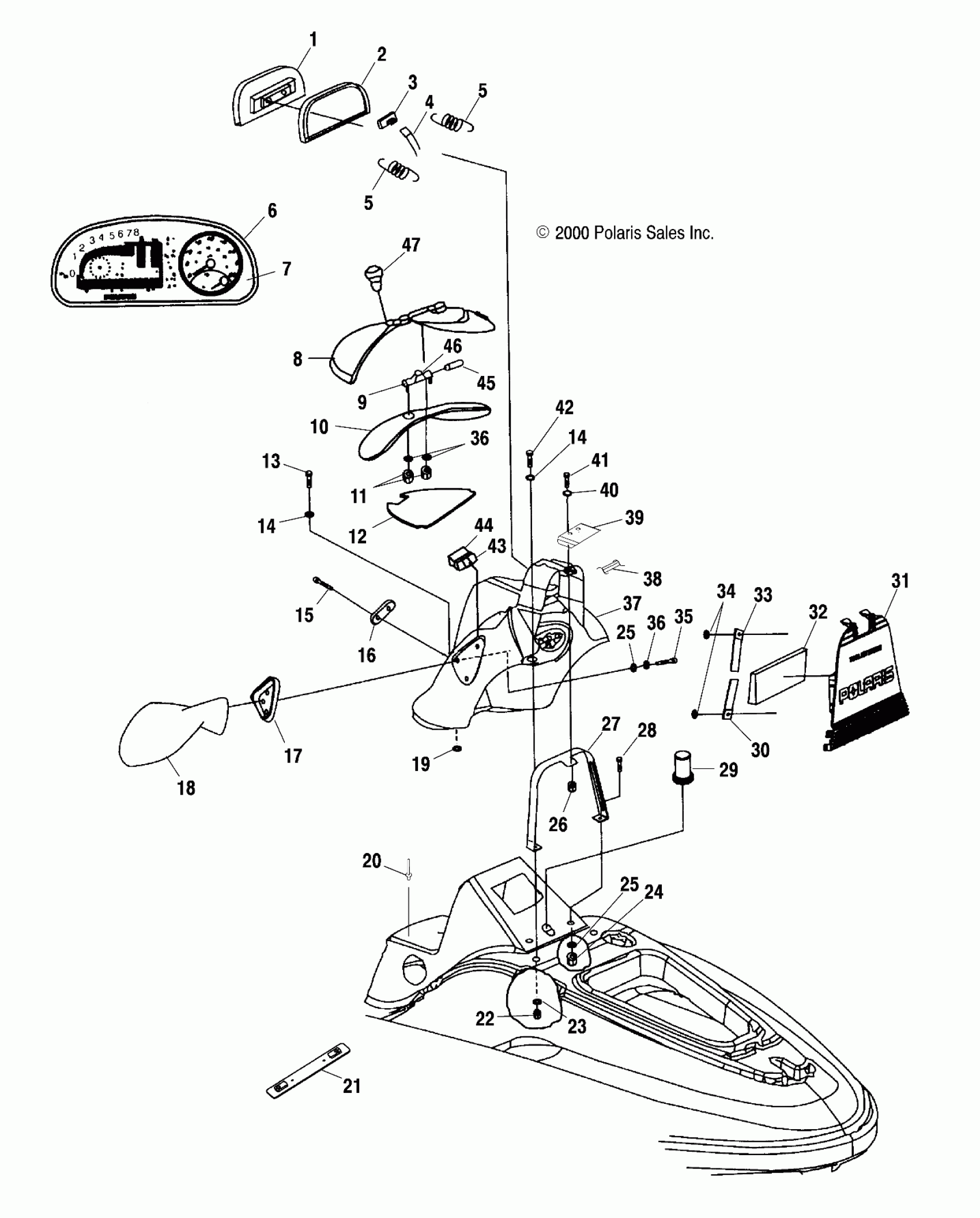

Polaris GENESIS FFI - W005098D SHROUD - W005098D (4955785578A005) Diagram

#

Description
Price

1

GAUGE,MFD,ANALOG/DIGITAL

3280292

Unavailable

2

GASKET-MFI

5411738

Unavailable

3

CONNECTOR-DEUTCHE,4PIN W/PLUGS

4010281

Unavailable

4

PITOT LINE,90DEG FORMED,235CM. Substituted by 8450070-277

8450070-235

Unavailable

5

SPRING,MOUNTING,MFI

7041931

Unavailable

5

SPRING,MOUNTING,MFI

7041931

Unavailable

6

MFI,BUTTON REPLACEMENT,KIT

2201593

Unavailable

7

BEZEL-MFI,OVERLAY

3280342

Unavailable

8

LID,CONS,AGEAN GREEN MET Substituted by 2201998

5433709-285

Unavailable

9

SPRING-TORSION,CONSOLE,SS Substituted by 7042007

7041754

Unavailable

10

SEAL,LID,CONSOLE

5521478

Unavailable

11

NUT, 6 MM.,S.S.(10)

7546705

$4.79

12

PAD,CONSOLE

5811783

Unavailable

13

SCREW(10)

7517668

Unavailable

14

WASHER, FLAT, S.S.(10)

7555831

Unavailable

14

WASHER, FLAT, S.S.(10)

7555831

Unavailable

15

SCREW,SS.

7516609

Unavailable

16

PLATE,HOOK,CONSOLE

5211865

Unavailable

17

GASKET-MIRROR,LH

5411557

Unavailable

17

GASKET-MIRROR,RH

5411558

Unavailable

18

MIRROR,STRBD,AGEAN,GREEN

2631973-284

Unavailable

18

MIRROR,PORT,AGEAN GREEN

2631972-284

Unavailable

19

WASHER, S.S.(10)

7555834

Unavailable

20

RIVET-POP (50)

7661042

Unavailable

21

MOUNT,SHROUD

1820725

Unavailable

22

NUT,HEX,(10)

7546804

$1.49

23

WASHER,FLAT,S.S.(10)

7555874

$2.39

24

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

25

WASHER, FLAT, S.S.(10)

7555839

Unavailable

25

WASHER, FLAT, S.S.(10)

7555839

Unavailable

26

NUT, HEX, S.S.(10)

7541931

$4.79

27

BRKT,SUPPORT,SHROUD

5244673

Unavailable

28

BOLT(10)

7516717

Unavailable

29

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

30

STRAP-TOOL KIT,LOWER

2690151

Unavailable

31

COVER-WIRE,SHROUD,BLK

5433210-070

Unavailable

32

Kit, Tool (See Tool Kit Pg. C10)

-------

Unavailable

33

STRAP-TOOL KIT,UPPER

2690150

Unavailable

34

RING-RETAINING,.25 STUD

7710517

Unavailable

35

SCREW, S.S.(10)

7516805

Unavailable

36

WASHER, LOCK(10)

7552613

Unavailable

36

WASHER, LOCK(10)

7552613

Unavailable

37

SHROUD,STEER,NR,AG GRN MET Substituted by 2202005

5433701-285

Unavailable

38

BUMPER,DOOR/SHROUD

5812076

Unavailable

39

PLATE,LATCH,RECEIVER

5244670

Unavailable

40

WASHER, FLAT, S.S.(10)

7555837

Unavailable

41

SCR,(10)#10-32X3/4

7517818

Unavailable

42

BOLT, SS.(10)

7512045

$4.99

43

GASKET,HOOK,CONSOLE

5811552

Unavailable

44

HOOK,CONSOLE,LATCH 1/4 TURN

5433266

Unavailable

45

PIN-HINGE,CONSOLE

5333698

Unavailable

46

HINGE-CONSOLE,3/16 PIN

5433384

Unavailable

47

LATCH,ASM,CONSOLE1/4 TURN

2632234

Unavailable
