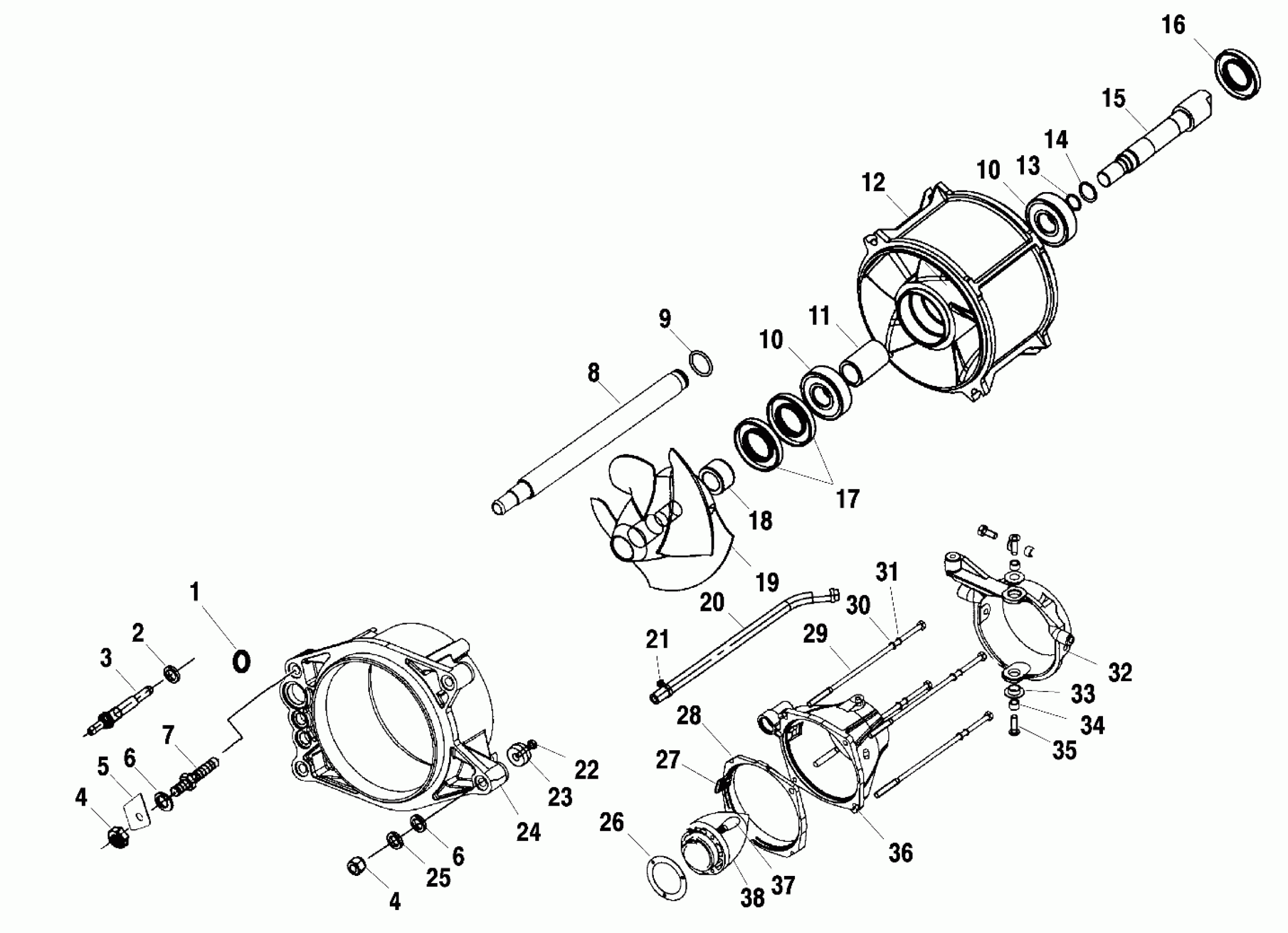

Polaris GENESIS FFI - W005098D PROPULSION - W005098D (4955785578B006) Diagram

#

Description
Price

1

SEAL,WATER PIPE

5411107

Unavailable

2

SEAL,SIPHON TUBE

5411016

Unavailable

3

PIPE,WATER,BILGE Substituted by 5020835

5431990

$49.59

4

NUT,HEX,S.S.(10)

7542455

Unavailable

4

NUT,HEX,S.S.(10)

7542455

Unavailable

5

BRKT,STEERING CABLE NUT

5244556

Unavailable

6

WASHER,PUMPSTUD,SEAL

7555941

$7.14

6

WASHER,PUMPSTUD,SEAL

7555941

$7.14

7

STUD,MOUNT,PUMP,1.38 INT.

5132355

Unavailable

8

PIPE,WATER,ENGINE,7.4 INCH

5433334

$22.06

9

O RING,(10)

5410735

$0.79

10

Bearing

3514008

Unavailable

10

Bearing

3514008

Unavailable

11

Spacer

5010294

Unavailable

12

STATOR,SS,ASIA TREND

5132088

$364.99

13

O-RING,(10)

5410817

Unavailable

14

O-RING(10)

5410818

$0.79

15

SHAFT, STUB Substituted by 5132674

5020697

$47.62

16

O-RING(10)

5410819

$0.79

17

SEAL,BRG,STATOR

3610043

Unavailable

18

Spacer, Impeller

5010295

Unavailable

19

IMPELLER,17-23,3 BLADE,SS

5131366

Unavailable

20

HOSE,WATER

8450054-100

Unavailable

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

SCREW(10)

7522019

$0.95

23

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

24

HSG,PUMP,W/RING,INT STUD

5131574

Unavailable

25

Washer

7555966

$2.62

26

SEAL,TAILCONE

5811984

Unavailable

27

SCREEN,ENG.INLET

5431523

Unavailable

28

WEDGE,PUMP,0X4,MOLDED

5432841

Unavailable

29

Screw

7517654

$17.89

30

WASHER, FLAT, S.S.,(10)

7555835

$0.69

31

WASHER, LOCK, S.S.(10)

7552610

Unavailable

32

NOZZLE,STRG,SLT

5130999

Unavailable

33

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

34

Collar

5130938

Unavailable

35

BOLT, S.S.(10)

7515366

Unavailable

36

NOZZLE ASM,0X4 WEDGE

1350038

$204.99

37

Cone, Pump

5431519

Unavailable

38

SCREW(10)

7512064

Unavailable
